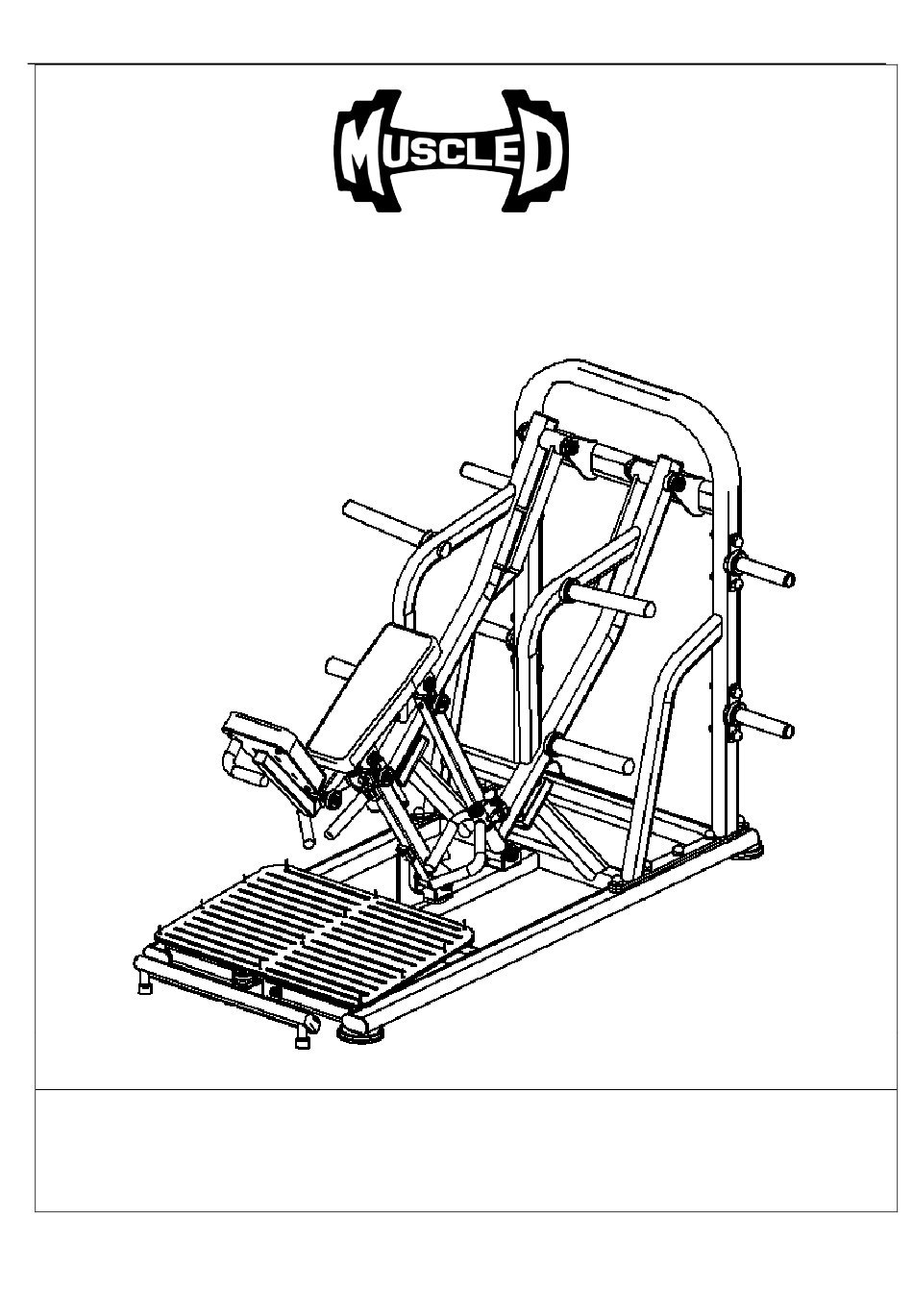

- Page 1 Pro Strength Chest Supported Row (PL-PS-CSR) Installation Manual...
- Page 2 Table of Contents 01/ Safety instructions 02/ Installation steps diagram and checklist 03/ Product description 04/ Product specifications 05/ Maintenance guide...
- Page 3 01/ Safety Instructions: Thank you for choosing our company's product. Correct usage of the trainer ensures your safety and convenience. Before using the trainer, please carefully read the following content: 1. Please carefully read all usage instructions before using this product, and strictly follow the methods described in the user manual.
- Page 4 02/Installation Steps Diagram Installation Checklist Installation Step One Name Specs Qty. rear support frame welded component Completed Image base welded component Ground foot adjustment welded component ground foot adjustment welded component hex socket round head bolt M12*70 drum washer Φ12 M12*25 hex socket cylindrical head bolt knob pin...
- Page 5 2. Installation Step Two Installation Checklist Name Specs Qty. Completed Image knob pin Φ9*56.75 compression spring Φ9*31 knob pin Φ22*38.3 knob handle Φ60*35 flat washer Ø6-Ø11.6*t1.6 hex lock nut backrest adjustment welded component backrest adjustment 2 welded component backrest adjustment inner tube welded component welded component backrest adjustment inner tube2...
- Page 6 3. Installation Step Three Installation Checklist Name. Specs Qty. Completed Image left arm welded component right arm welded component left handlebar welded component right handlebar welded component left adjustment guard plate T2.0*59.85*124.5 right adjustment guard plate T2.0*59.85*124.5 Φ19*62 arm pivot Φ25*178 hex socket head bolt M8*1...
- Page 7 4. Installation Step Four Installation Checklist Specs Name Qty. Completed Image drum washer Φ12 gong striker assembly welded component hanger pad 180*45*T6 round cushioning pad Φ75*Φ42.5*20 round cushioning pad Φ75*Φ48.5*20 hex socket head bolt M12*80（半牙） hex lock nut...
- Page 8 5. Installation Step Five Installation Checklist Completed Image Specs Name Qty. seat cushion 348*248*60 chest pad 510*200*60 hex socket flat head bolt M8*25 spring washer Φ8（Ø12.5*t2.1） flat washer Φ8(Ø15.5*t1.6) Note: Installation completed, tighten all bolts in place, use screw caps for all positions where drum washers are used.
- Page 9 ·Manufactured using large-sized steel pipes and electrostatic spraying treatment—ensuring the safety, reliability, and durability of the machine. 04/Product specifications Name Pro Strength Chest Supported Row PL-PS-CSR Dimension 48" x 58" x 58" Weight 450 lb 05/Maintenance guide 1.
