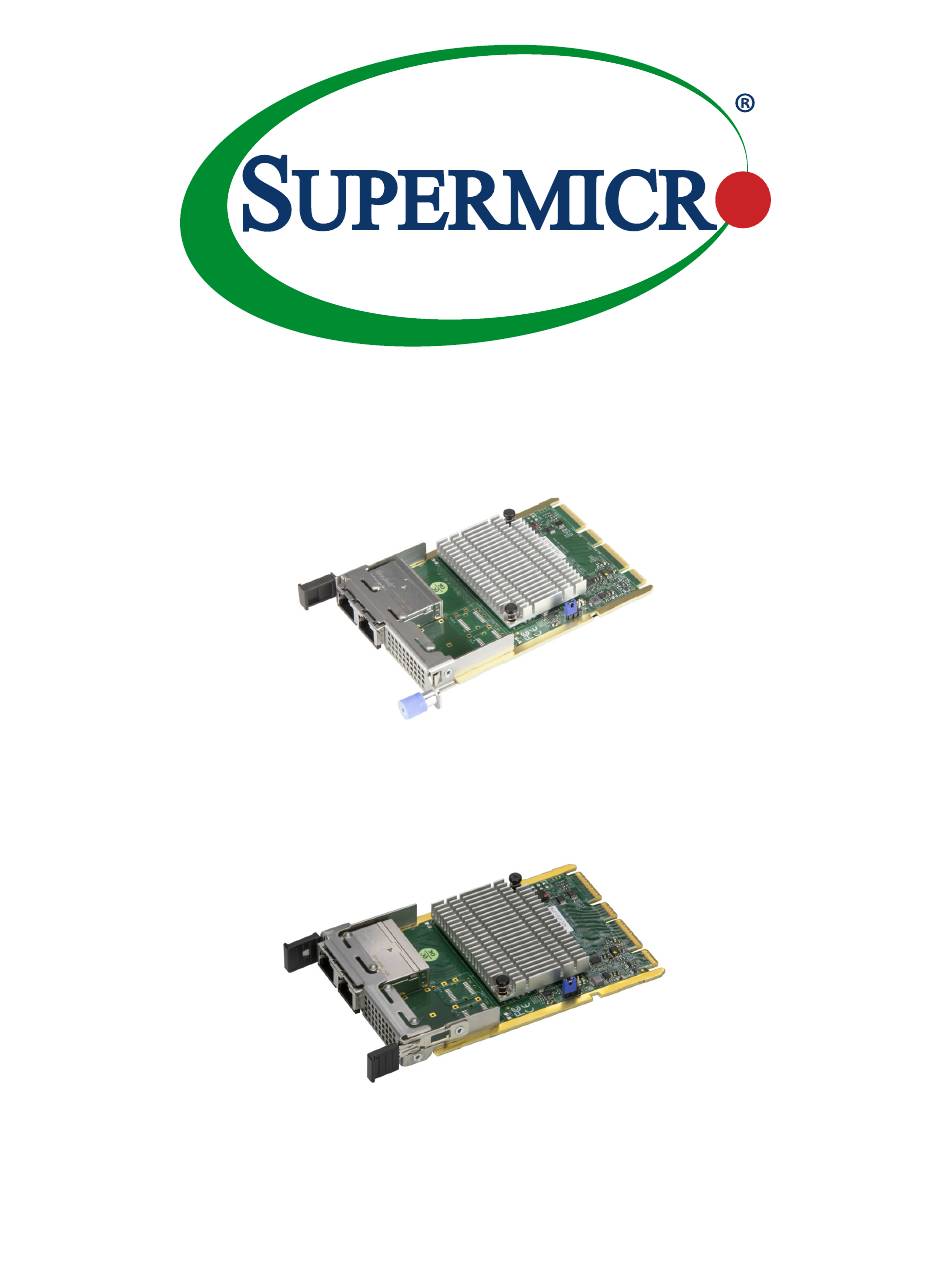

- Page 1 AOC-ATGC-i2TM AOC-ATGC-i2TG USER'S MANUAL Revision 1.0b...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Manual
Preface Preface About This Manual This user's guide is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the AOC-ATGC-i2TM and AOC- ATGC-i2TG add-on module. About This Add-On Card Supermicro Advanced I/O Modules (AIOM) is the latest form factor designed to provide ®... -
Page 4: Conventions Used In The Manual
Frequently Asked Questions: https://www.supermicro.com/FAQ/index.php • If you have any feedback on Supermicro product manuals, contact our writing team at: Techwriterteam@supermicro.com This manual may be periodically updated without notice. Check the Supermicro website for possible updates to the manual revision level. -
Page 5: Naming Convention
Preface Naming Convention... -
Page 6: Contacting Supermicro
Super AOC-ATGC-i2TM/-i2TG User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) -
Page 7: Table Of Contents
3.1 Overview ..........................18 3.2 Static-Sensitive Devices .....................18 3.3 Before Installation .......................19 3.4 Installating the Add-on Card AOC-ATGC-i2TM (with 0.5U bracket) ........20 3.5 Installing the Drivers in Windows ..................23 3.6 Installing Drivers on Linux ....................24 3.7 Installing Drivers on FreeBSD ....................25... -
Page 8: Chapter 1 Introduction
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, refer to our website at https://www.supermicro.com/en/products/networking/adapters. -
Page 9: Specifications
Chapter 1: Introduction 1.3 Specifications General • Advanced I/O Module (AIOM) form factor • Intel X710-AT2 controller • Dual RJ45 connectors with speeds up to 10 Gbps per port • PCIe Gen3 x8 Networking Features • IEEE 802.3ad, 802.1AX Link Aggregation •... - Page 10 Super AOC-ATGC-i2TM/-i2TG User's Manual Management Features • Asset Management support with thermal sensor • NC-SI for remote management • Preboot eXecution Environment (PXE) • iSCSI remote boot • PLDM Power Savings • ACPI compliant power management • Energy Efficient Ethernet (IEEE 802.3az) OS Support •...
-
Page 11: Physical Dimensions
2-port 10 Gigabit Ethernet Adapter with a 0.5U height bracket. AOC-ATGC-i2TG BKT-0208L 2-port 10 Gigabit Ethernet Adapter with a 0.5U height narrow bracket for Grand Twin Front IO systems. Note: This product is only sold as part of an integrated solution with Supermicro server systems. -
Page 12: Chapter 2 Hardware Components
Super AOC-ATGC-i2TM/-i2TG User's Manual Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout Figure 2-1: AOC-ATGC-i2TM Top View... - Page 13 Chapter 2: Hardware Components Figure 2-2: AOC-ATGC-i2TG Top View...
- Page 14 Super AOC-ATGC-i2TM/-i2TG User's Manual LAN2 LAN1 JPAUX1 JDB1 AOC-ATGC-i2TM DESIGNED IN USA REV:1.00 Figure 2-3: AOC-ATGC-i2TM Layout...
-
Page 15: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on the AOC-ATGC-i2TM/-i2TG: AOC-ATGC-i2TM/-i2TG Major Components Component Name Definition Intel X710-AT2 Ethernet LAN Controller ® JPAUX1 1–2: Enable AUX Power in S5 2–3: Disable AUX Power in S5... -
Page 16: Lan Ports And Lan Led Indicators
2.3 LAN Ports and LAN LED Indicators LAN Ports There are two RJ45 LAN ports on the AOC-ATGC-i2TM/-i2TG. These LAN ports support connection speeds of 10 Gbps. Use a direct-attach RJ45 type LAN cable. Each LAN has one bi-colored LED per port (RJ45) at the bottom of the PCB. Refer to the table below for LED color definition. -
Page 17: Jumpers And Connectors
Enable = Enable jumper to WoL is supported but limited to plat- Standby power connect standby forms with sufficient airflow when it is to AOC NIC power to AOC NIC in standby mode (S5 state). Consult Supermicro before enabling it. -
Page 18: Chapter 3 Installation
Super AOC-ATGC-i2TM/-i2TG User's Manual Chapter 3 Installation 3.1 Overview As a part of an integrated solution, your system came with the adapter pre-installed. We do not recommend removing and reinstalling any part of your system components. If you need to remove or re-install a system component, including this add-on card, follow the instructions in this chapter to ensure proper system setup. -
Page 19: Before Installation
Chapter 3: Installation 3.3 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard antistatic equipment (such as gloves or wrist strap) and follow the instructions listed on page 18 to avoid damage caused by ESD. -
Page 20: Installating The Add-On Card Aoc-Atgc-I2Tm (With 0.5U Bracket)
Super AOC-ATGC-i2TM/-i2TG User's Manual 3.4 Installing the Add-on Card AOC-ATGC-i2TM (with 0.5U bracket) Follow the steps below to install an add-on card into your system. (If the system is fixed onto a rack, the removal of the server top cover is not required. If the system is not anchored to a fixed structure, it is recommended to remove the system top cover for ease of installation.) - Page 21 Chapter 3: Installation Installing an AIOM module 1. Position the AIOM module in front of the empty slot and gently push onto the metal bracket. The AIOM module should slide into the chassis until the card is securely seated in the connector. 2.
- Page 22 Super AOC-ATGC-i2TM/-i2TG User's Manual Installing an AIOM module (with an AIOM slot cover) 1. Remove the AIOM slot cover by unscrewing the knob and screw that attaches the bracket to the chassis. 2. Pull the bracket away and set it aside.
-
Page 23: Installing The Drivers In Windows
Follow the steps below to install the drivers for Windows. Download the latest drivers from the Supermicro project board at https://www.supermicro.com/wdl/driver. 1. Run CDR-NIC. 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. 3. Click on INSTALL DRIVERS AND SOFTWARE. -
Page 24: Installing Drivers On Linux
Super AOC-ATGC-i2TM/-i2TG User's Manual 3.6 Installing Drivers on Linux Follow the steps below to install the drivers for Linux: 1. Download the driver from the Supermicro CDR-NIC LAN driver CD or ftp://ftp. supermicro.com/Networking_Drivers/CDR-NIC_1.62_for_Add-on_NIC_Cards/Intel/LAN/ PRO40GB/LINUX. Due to the continuous development of the Linux kernel, the drivers are updated more often than the bundled releases. -
Page 25: Installing Drivers On Freebsd
Note: You must have kernel sources installed in order to compile the driver module. 1. Download the driver from the Supermicro CDR-NIC LAN driver CD or ftp://ftp. supermicro.com/Networking_Drivers/CDR-NIC_1.62_for_Add-on_NIC_Cards/Intel/LAN/ PRO40GB/FreeBSD. - Page 26 Super AOC-ATGC-i2TM/-i2TG User's Manual 9. Edit /boot/loader.conf, and add the following line: ixl_load="YES" compile the driver into the kernel (see item 10) Edit /etc/rc.conf, and create the appropriate ifconfig_ixl<interface_num> entry: ifconfig_ix<interface_num> Example usage: ifconfig_ix0="inet 192.168.10.1 netmask 255.255.255.0" Note: For assistance, see the ifconfig main page.
- Page 27 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical sys- tems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
