AOC-ATG-i2TM

AOC-ATG-i2TB

USER'S MANUAL

Revision 1.0a

Table of Contents

Need help?

Do you have a question about the AOC-ATG-i2TM and is the answer not in the manual?

Questions and answers

Summary of Contents for Supermicro AOC-ATG-i2TM

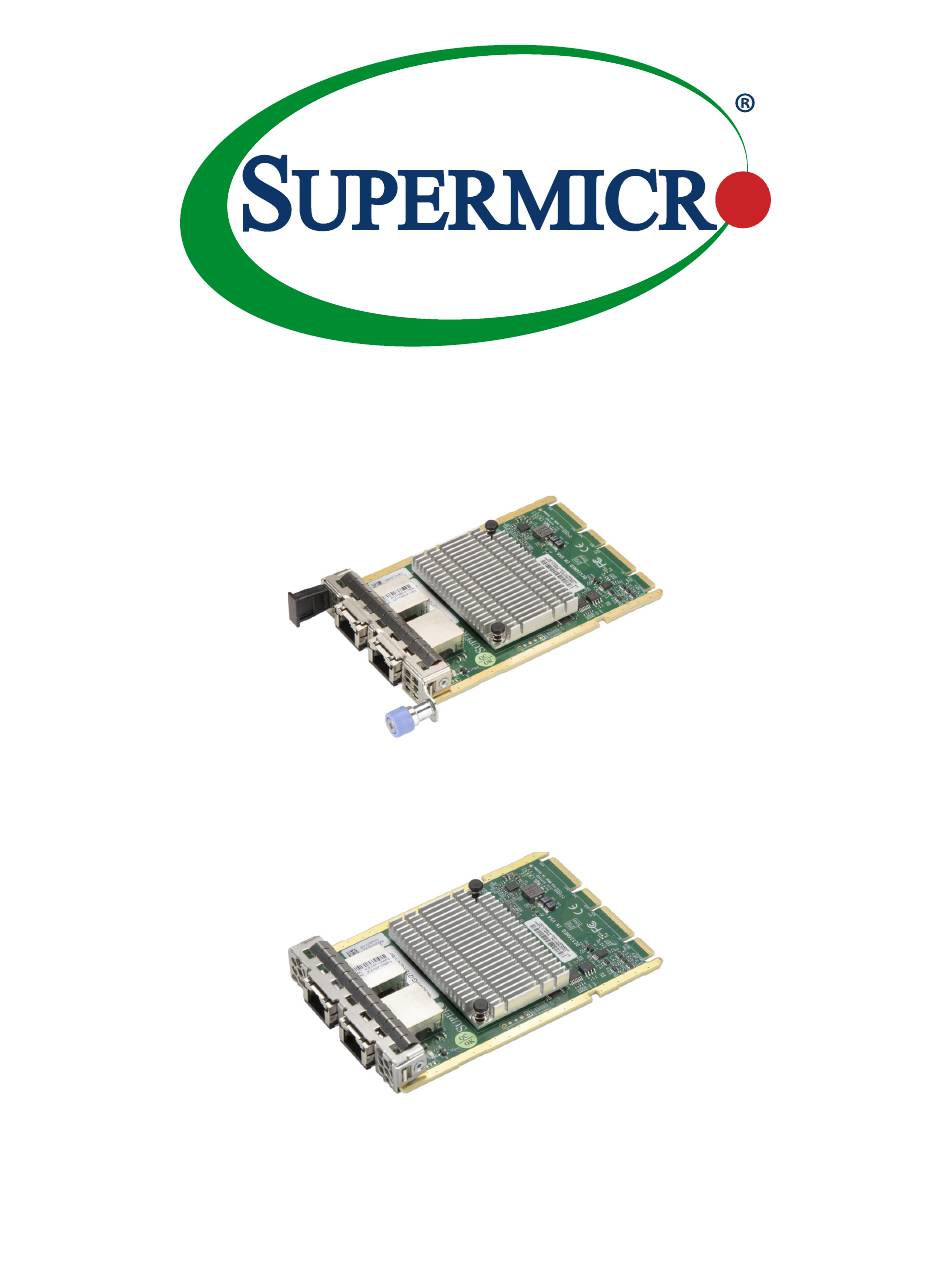

Page 1 AOC-ATG-i2TM AOC-ATG-i2TB USER'S MANUAL Revision 1.0a...
Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
Page 3: About This Manual
Preface Preface About This Manual This user's guide is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the AOC-ATG-i2TM and AOC- ATG-i2TB add-on card. About This Add-On Card Supermicro Advanced I/O Modules (AIOM) are the latest form factor designed to provide a ®...
Page 4: Conventions Used In The Manual
Frequently Asked Questions: https://www.supermicro.com/FAQ/index.php • If you have any feedback on Supermicro product manuals, contact our writing team at: Techwriterteam@supermicro.com This manual may be periodically updated without notice. Check the Supermicro website for possible updates to the manual revision level.
Page 5: Naming Convention
Preface Naming Convention...
Page 6: Contacting Supermicro
Super AOC-ATG-i2TM/-i2TB User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support)
Page 7: Table Of Contents
Preface Table of Contents Chapter 1 Introduction 1.1 Overview ..........................8 1.2 Key Features ........................8 1.3 Specifications ........................9 1.4 Available SKUs ........................11 Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout ..................12 2.2 Major Components ......................17 2.3 LED Ports and LED Indicators ....................18 2.4 Major Components of AIOM Module ...................20 2.5 Jumper Settings .........................21 Chapter 3 Installation...
Page 8: Chapter 1 Introduction
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, refer to our website at https://www.supermicro.com/en/products/networking/adapters.
Page 9: Specifications
Chapter 1: Introduction 1.3 Specifications General • Advanced I/O Module (AIOM) form factor • Intel X550 dual-port 10 GbE controller with integrated MAC and PHY • Dual RJ45 ports I/O Features • Intel Flow Director ® • MSI/MSI-X support • Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) capabilities •...
Page 10: Operating Conditions
Storage humidity: 90% non-condensing relative humidity at 35°C Physical Dimensions • Card PCB dimensions: 19 mm x 76 mm x 115 mm (H x W x D) Note: This product is only sold as part of an integrated solution with Supermicro server systems.
Page 11: Available Skus
Chapter 1: Introduction 1.4 Available SKUs SKUs Bracket Included Description AOC-ATG-i2TM BKT-0168L 2-port 10 Gigabit Ethernet Adapter with a 0.5U height bracket AOC-ATG-i2TB BKT-0181L 2-port 10 Gigabit Ethernet Adapter with a 0.5U height internal lock bracket (for Blade system only)
Page 12: Chapter 2 Hardware Components
Super AOC-ATG-i2TM/-i2TB User's Manual Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout AOC-ATG-i2TM Top View...
Page 13 Chapter 2: Hardware Components AOC-ATG-i2TM Front View...
Page 14 Super AOC-ATG-i2TM/-i2TB User's Manual AOC-ATG-i2TB Top View...
Page 15 Chapter 2: Hardware Components AOC-ATG-i2TB Front View...
Page 16 Super AOC-ATG-i2TM/-i2TB User's Manual LED5 JLAN2 JLAN1 BAR CODE JPAUX1 AOC-ATG-i2TM DESIGNED IN USA REV:1.10 AOC-ATG-i2TM Layout...
Page 17: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on the AOC-ATG-i2TM and AOC-ATG-i2TB: AOC-ATG-i2TM/-i2TB Major Components Component Name Definition Intel X550 10 GbE Ethernet LAN controller PCIe connector JLAN1 RJ45 Port 1 JLAN2 RJ45 Port 2 JPAUX1 1–2: Enable AUX Power...
Page 18: Led Ports And Led Indicators
Super AOC-ATG-i2TM/-i2TB User's Manual 2.3 LED Ports and LED Indicators LAN Ports The AOC-ATG-i2TM/-i2TB add-on card has two network LAN RJ45 ports. These LAN ports support connection speeds up to 10 Gbps. Be sure to use RJ45 type LAN cables.for network connections.
Page 19 Chapter 2: Hardware Components LAN Power Rail LED The AOC-ATG-i2TM/-i2TB add-on card has one Power Good LED, referred to as LED5. This LED will be lit to indicate when the LAN power rails are up and running. Refer to page 18 for its location.
Page 20: Major Components Of Aiom Module
Super AOC-ATG-i2TM/-i2TB User's Manual 2.4 Major Components of AIOM Module The major components of the Supermicro Advanced I/O Modules (AIOM) are the card and bracket. Before a computer system can operate, all slots are required to be populated. If an AIOM module is used, be sure that the bracket is firmly installed into the chassis.
Page 21: Jumper Settings
Chapter 2: Hardware Components 2.5 Jumper Settings Connector Pins Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.
Page 22 Super AOC-ATG-i2TM/-i2TB User's Manual JPAUX1 for Standby Power Function Notes Disable Disable jumper Default to disconnect the No standby power to AOC standby power Enable Enable jumper to Standby Power can be connect standby enabled to provide support for Standby power to AOC NIC power to AOC NIC NC-SI (IPMI/Failover Support).
Page 23: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation 3.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...
Page 24: Before Installation
Super AOC-ATG-i2TM/-i2TB User's Manual 3.2 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard antistatic equipment (such as gloves or wrist strap) and follow the instructions listed on page 24 to avoid damage caused by ESD.
Page 25: Installing The Add-On Card (With 1U Bracket)
Chapter 3: Installation 3.3 Installing the Add-on Card (with 1U bracket) Follow the steps below to install an add-on card into your system. If the system is fixed onto a rack, the removal of server top cover is not required. If the system is not anchored to a fixed structure, it is recommended to remove the system top cover for ease of installation.
Page 26 Super AOC-ATG-i2TM/-i2TB User's Manual Installing and Reinstalling an AIOM module (with an empty slot) 1. Position the AIOM module in front of the empty slot. 2. Gently push onto the metal bracket (do not use the blue latch). The AIOM module should slide into the chassis until the card securely is seated in the connector.
Page 27 Chapter 3: Installation Installing an AIOM module (with an AIOM slot cover) 1. Remove the AIOM slot cover by pulling it with two handles. 2. Position the AIOM module in front of the empty slot. 3. Gently push onto the metal bracket (do not use the blue latch). The AIOM module should slide into the chassis until the card is fully seated inside the connector.
Page 28: Installing The Add-On Card (With 0.5U Bracket)
Super AOC-ATG-i2TM/-i2TB User's Manual 3.4 Installing the Add-on Card (with 0.5U bracket) Follow the steps below to install an add-on card into your system. (If the system is fixed onto a rack, the removal of server top cover is not required. If the system is not anchored to a fixed structure, it is recommended to remove the system top cover for ease of installation.)
Page 29 Chapter 3: Installation Installing an AIOM module 1. Position the AIOM module in front of the empty slot. 2. Gently push onto the metal bracket. The AIOM module should slide into the chassis until the card is securely seated in the connector. 3.
Page 30 Super AOC-ATG-i2TM/-i2TB User's Manual Installing an AIOM module (with an AIOM slot cover) 1. Remove the AIOM slot cover by unscrewing the knob and screw that attaches the bracket to the chassis. Pull the bracket away and set it aside.
Page 31: Installing Drivers On Windows (For Intel X550)
Intel Download Center or the Supermicro site at https://www.supermicro. com/wftp/Networking_Drivers. 1. Run ‘rpmbuild -tb <filename.tar.gz>’. 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. Note: If the FOUND NEW HARDWARE WIZARD screen displays on your system, click CANCEL.
Page 32: Installing Drivers On Linux (For Intel X550)
Super AOC-ATG-i2TM/-i2TB User's Manual 3.6 Installing Drivers on Linux (for Intel X550) Download the drivers from Intel Download Center or the Supermicro site at https://www. supermicro.com/wftp/Networking_Drivers. Follow the instructions below to build the driver manually. Build a Binary RPM Package 1.
Page 33 Chapter 3: Installation The install locations listed above are the default locations. They may not be correct for certain Linux distributions. For more information, see the ldistrib.txt file included in the driver tar. make CFLAGS_EXTRA=”-DIGB_NO_LRO” install Note: IXGBE_NO_LRO is a compile time flag. The user can enable it at compile time to remove support for LRO from the driver.
Page 34: Installing Drivers On Freebsd (For Intel X550)
Super AOC-ATG-i2TM/-i2TB User's Manual 3.7 Installing Drivers on FreeBSD (for Intel X550) Follow the instructions below to install the drivers for FreeBSD kernel 4.8 or later. In the instructions below, x.x.x is the driver version as indicated in the name of the drive tar file.
Page 35 Chapter 3: Installation 7. If you want the driver to load automatically when the system is booted, enter the following: cd ixgbe-x.x.x/src make load cp if_ixgbe.ko /modules Edit /boot/loader.conf, and add the following line: if_ixgbe_load="YES" compile the driver into the kernel (see item 8). Edit /etc/rc.conf, and create the appropriate ifconfig_ixgbe<interface_num>...
Page 36 Super AOC-ATG-i2TM/-i2TB User's Manual Edit the /usr/src/sys/conf/files.i386 file, and add the following line: dev/ixgbe/ixgbe_hw.c optional ixgbe dev/ixgbe/ixgbe_ee.c optional ixgbe dev/ixgbe/if_ixgbe.c optional ixgbe Remove the following lines from the /usr/src/sys/conf/files.i386 file if they exist: /dev/ixgbe/if_ixgbe_fx_hw.c optional ixgbe /dev/ixgbe/if_ixgbe_phy.c optional ixgbe Edit the kernel configuration file (i.e., GENERIC or MYKERNEL) in /usr/src/sys/i386/conf...
Page 37 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical sys- tems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
