Summary of Contents for Supermicro AOC-ATG-b2TG

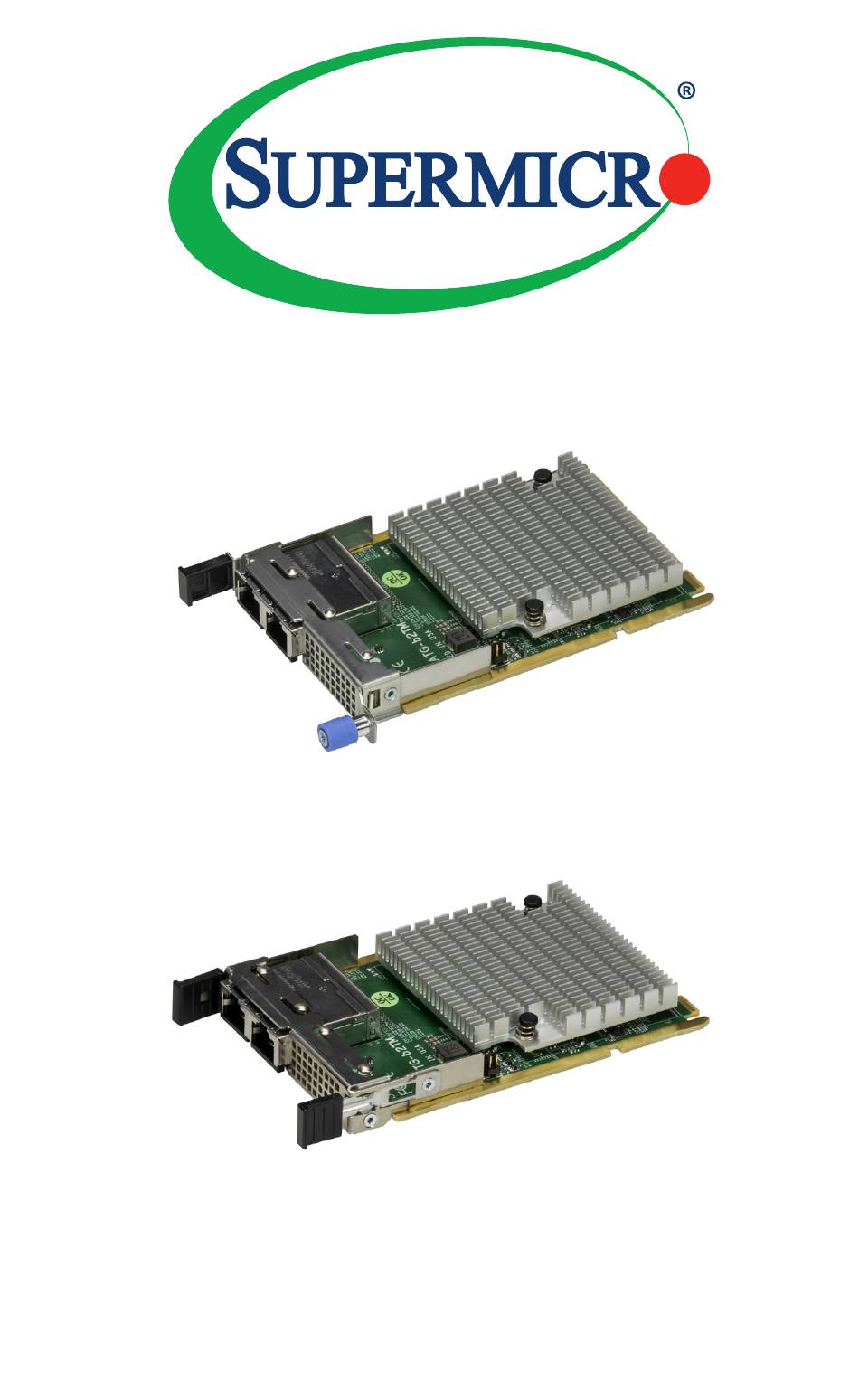

- Page 1 AOC-ATG-b2TM AOC-ATG-b2TG User's Guide Revision 1.0a...
- Page 2 CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”. The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
- Page 3 NPAR (NIC Partitioning) technology provides flexible connectivity for different networking requirements. With all these features, AOC-ATG-b2TM and AOC-ATG-b2TG are truly exceptional 10GbE Ethernet adapters for your continu- ously growing cloud scale and data center applications. An Important Note to the User All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing.
- Page 4 Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and for safety instructions to prevent damage to the system or injury to yourself. Note: Additional information given for proper system setup. Naming Convention for Standard Network Adapters...
- Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com...
- Page 6 Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide Asia-Pacific Email: Sales-Asia@supermicro.com.tw (Sales Inquiries) Support@supermicro.com.tw (Technical Support) RMA@supermicro.com.tw (RMA Support) Website: www.supermicro.com.tw...
-
Page 7: Table Of Contents
Preface Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Product Highlights ................... 1-1 Technical Specifications .................. 1-2 Available SKUs ....................1-5 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components ..................2-3 LED Indicators and Connectors ..............2-4 Jumper Settings .................... -
Page 8: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... -
Page 9: Technical Specifications
Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide Technical Specifications General • Broadcom BCM57416 dual-port 10Gbps controller ® • PCI-E 3.0 x8 (8GT/s) interface • Dual RJ45 connectors • Broadcom TruFlow technology ® Host Interface • PCI-E 3.0 (8GT/s) • MCTP over SMBus •... - Page 10 Chapter 1: Overview Stateless Offload Features • TCP, UDP, IPv4, IPv6 checksum offload • Large Send Offload (LSO) • Receive Segment Coalescing (RSC) • TCP Segmentation Offload (TSO) • Large Receive Offload (LRO) • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) NIC Partitioning (NPAR) •...
- Page 11 Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide Virtualization Features • NetQueue, VMQueue, and Multiqueue • Support for 128 Virtual Functions • VXLAN • NVGRE • Geneve • Edge Virtual Bridging (EVB) Data Center Bridging • Priority-based Flow Control (PFC; IEEE 802.1Qbb) •...
-
Page 12: Available Skus
2-port 10 Gigabit Ethernet adapter with a 0.5U height bracket AOC-ATG-b2TG BKT-0208L 2-port 10 Gigabit Ethernet Adapter with a 0.5U height narrow bracket for Grand Twin Front IO systems. Note: This product is only sold as part of an integrated solution with Supermicro server systems. -
Page 13: Chapter 2 Hardware Components

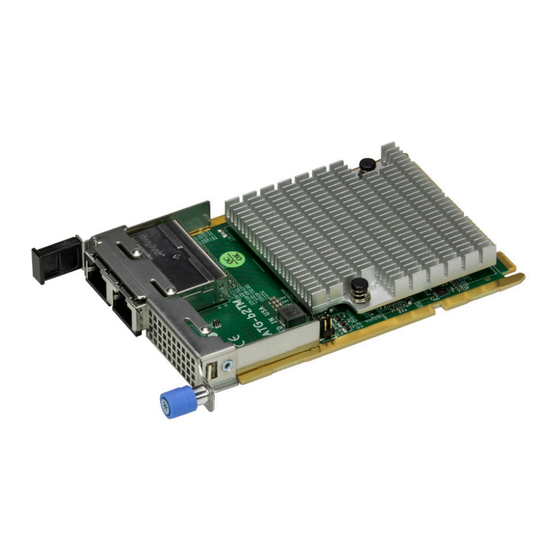

Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout AOC-ATG-b2TM Image AOC-ATG-b2TG Image... - Page 14 Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide BAR CODE LAN2 LAN1 AOC-ATG-b2TM DESIGNED IN USA REV:1.00 JPAUX1 Broadcom® BCM4716 AOC-ATG-b2TM and AOC-ATG-b2TG Layout...
-
Page 15: Major Components
Chapter 2: Hardware Components Major Components The following components are on AOC-ATG-b2TM and AOC-ATG-b2TG. AOC-ATG-b2TM and AOC-ATG-b2TG Major Components Component Name Definition Broadcom BCM4716 Ethernet controller ® Connector cage LAN1 LAN Port 1 LAN2 LAN Port 2 JPAUX1 1-2: Enable AUX Power... -
Page 16: Led Indicators And Connectors
Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide LED Indicators and Connectors LAN Ports The AOC-ATG-b2TM and AOC-ATG-b2TG has two network LAN ports. These LAN ports support connection speeds up to 10Gbps. Plug the Direct Attached Copper (DAC) cable into the port for network connections. -
Page 17: Jumper Settings
Enable jumper to WoL is supported on two ports but power to AOC NIC connect standby limited to platforms with sufficient power to AOC NIC airflow when it is in standby mode (S5 state). Please consult Supermicro before enabling it. -
Page 18: Major Components Of Aiom Module
Super AOC-ATG-b2T(M)(G) Add-On Card User's Guide Major Components of AIOM Module The major components of the Supermicro Advanced I/O Modules (AIOM) are the ® card and bracket. Before a computer system can operate, all slots are required to be populated. If an AIOM module is used, be sure that the bracket is firmly installed into the chassis. -
Page 19: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 20: Before Installation
Super AOC-ATG-b2T(M)(G) Add-on Card User's Guide Before Installation Before you install the add-on card, follow the instructions below. 1. Power down the system. 2. Unplug the power cord. 3. Use industry-standard anti-static equipment such as gloves or a wrist strap and follow the precautions on page 3-1 to avoid damage caused by ESD. -
Page 21: Installing The Add-On Card (With 0.5U Bracket)
Chapter 3: Installation Installing the Add-on Card (with 0.5U bracket) Follow the steps below to install an add-on card into your system. (If the system is fixed onto a rack, the removal of the server top cover is not required. If the system is not anchored to a fixed structure, it is recommended to remove the system top cover for ease of installation) A. - Page 22 Super AOC-ATG-b2T(M)(G) Add-on Card User's Guide B. Installing an AIOM module 1. Position the AIOM module in front of the empty slot. 2. Gently push onto the metal bracket. The AIOM module should slide into the chassis until the card is securely seated in the connector. 3.
- Page 23 Chapter 3: Installation C. Installing an AIOM module (An AIOM slot with an AIOM slot cover) 1. Remove the AIOM slot cover by unscrewing the knob and screw that attaches the bracket to the chassis. 2. Pull the bracket away and set it aside. 3.
-
Page 24: Installing Drivers On Windows
Download the drivers from Intel Download Center or the Supermicro site at https:// www.supermicro.com/wftp/Networking_Drivers. 1. Run CDR-NIC. 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. Note: If the FOUND NEW HARDWARE WIZARD screen displays on your system, click CANCEL. -
Page 25: Installing Drivers (For Broadcom ® Bcm57416)
BCM57416) ® Use the procedures below to install both drivers and firmware for the AOC-ATG- b2TM and AOC-ATG-b2TG add-on card for both Linux and Windows. Linux Drivers Use the following procedures to install drivers on the Linux operating system. Download the drivers from ftp://ftp.supermicro/Networking_Drivers/. - Page 26 Super AOC-ATG-b2T(M)(G) Add-on Card User's Guide 8. Install the library by entering the following commands: tar xvzf libbnxtre-<ver>.tar.gz cd libbnxtre-<ver>.tar.gz ./configure make make install cp bnxtre.driver /etc/libibverbs.d/ echo “/usr/local/lib” >> /etc/ld.so.conf ldconfig –v Windows Drivers Use the following procedures to install drivers on the Windows operating system. Installing 10G Drivers for the Windows Operating System 1.
- Page 27 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
