Pulsar DCDC20 Quick Start Manual

Dc/dc 2.0a module of converter

Advertisement

Quick Links

Wide range of output voltages: 4.5-19V
DC power supply range 8-28V
Maximum current load 2A
AW emergency output triggered by:
Output short
Output overload
1. Technical description
DC/DC-2.0A (DCDC20) converter module used for powering devices that require stabilized voltage in the range
of 5-18 V DC. The maximum current load is 2.0 A (Pmax= 24W). This module does not have galvanic insulation between
the input and output (IN-AUX), and operates on a common ground potential (IN and AUX terminals are connected
galvanically = common terminal).

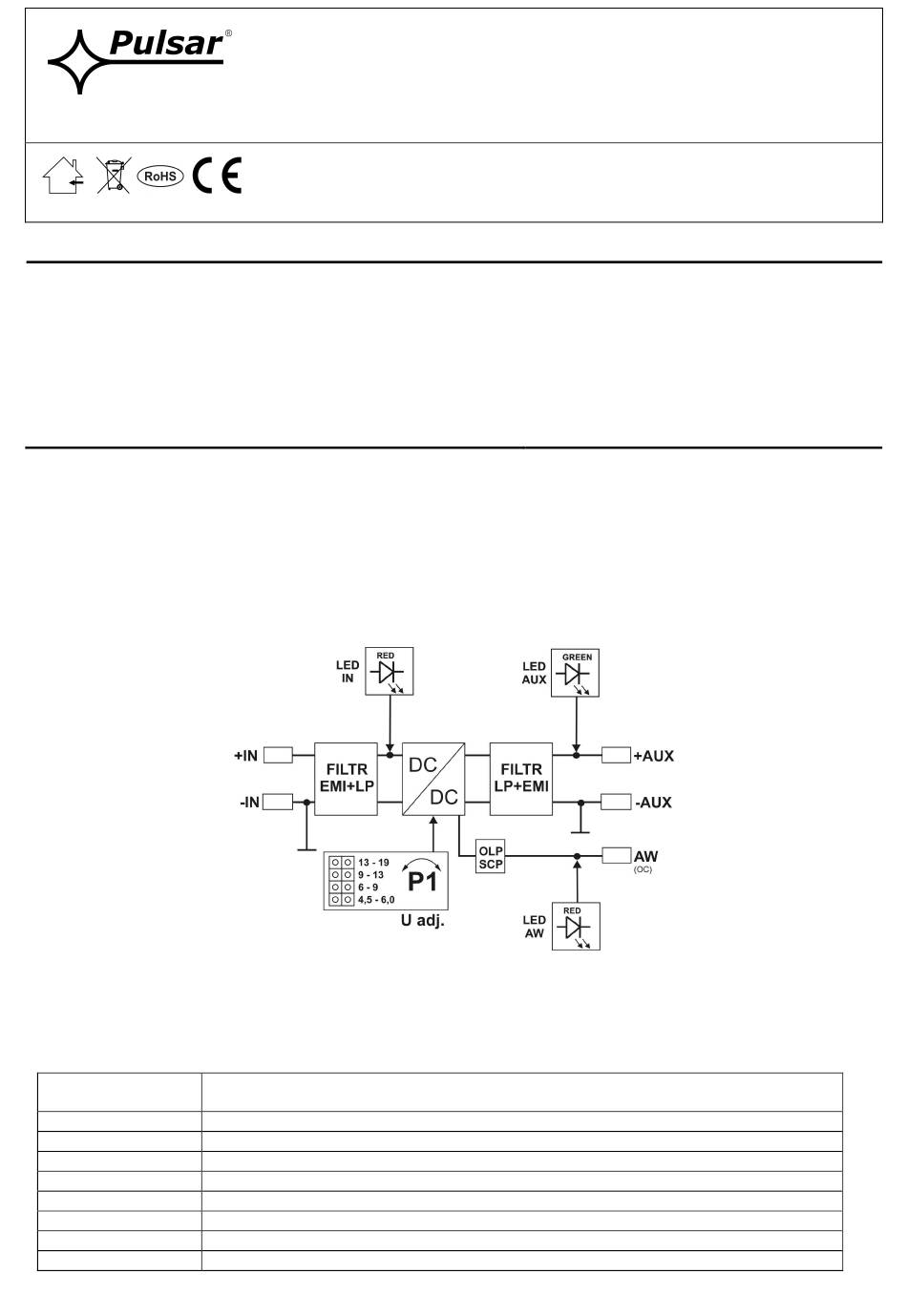

1.1. Block diagram (fig1).
1.2. Description of elements and connection links of the power-supply unit (fig.2, tab.1, tab.2).
Table 1.
No.
[fig. 2]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Features of the module:
Fig.1. Block diagram of the converter module.
IN LED - red
DC/DC module power connectors
P1 voltage regulation (4.5-19.0V)
Jumper- voltage range switching
AUX LED - green
DC/DC module terminal connectors (power and AW)
AW LED - red
Assembly base
DCDC20
v.1.1
DC/DC 2.0A module of converter
Edition: 2-nd from the 08-th December 2011
Supercedes edition: 1st from the 18-th January 2011
Description of element
1
Protection:
SCP short circuit protection
OLP overload protection
OHP overheating protection
High efficiency: 80- 90%
Optical LED indicator
