Pulsar DC/DC20SE Quick Start Manual

 The DC/DC voltage- step up / step down converter with
adjustable output voltage
 Example of use: increasing voltage from 9,5V to 12V DC or
lowering voltage from 16V to 9V DC
 The input voltage range: 9,5÷16V DC
 The output voltage range: 5÷15V DC
 The maximum load current 2A (24W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload

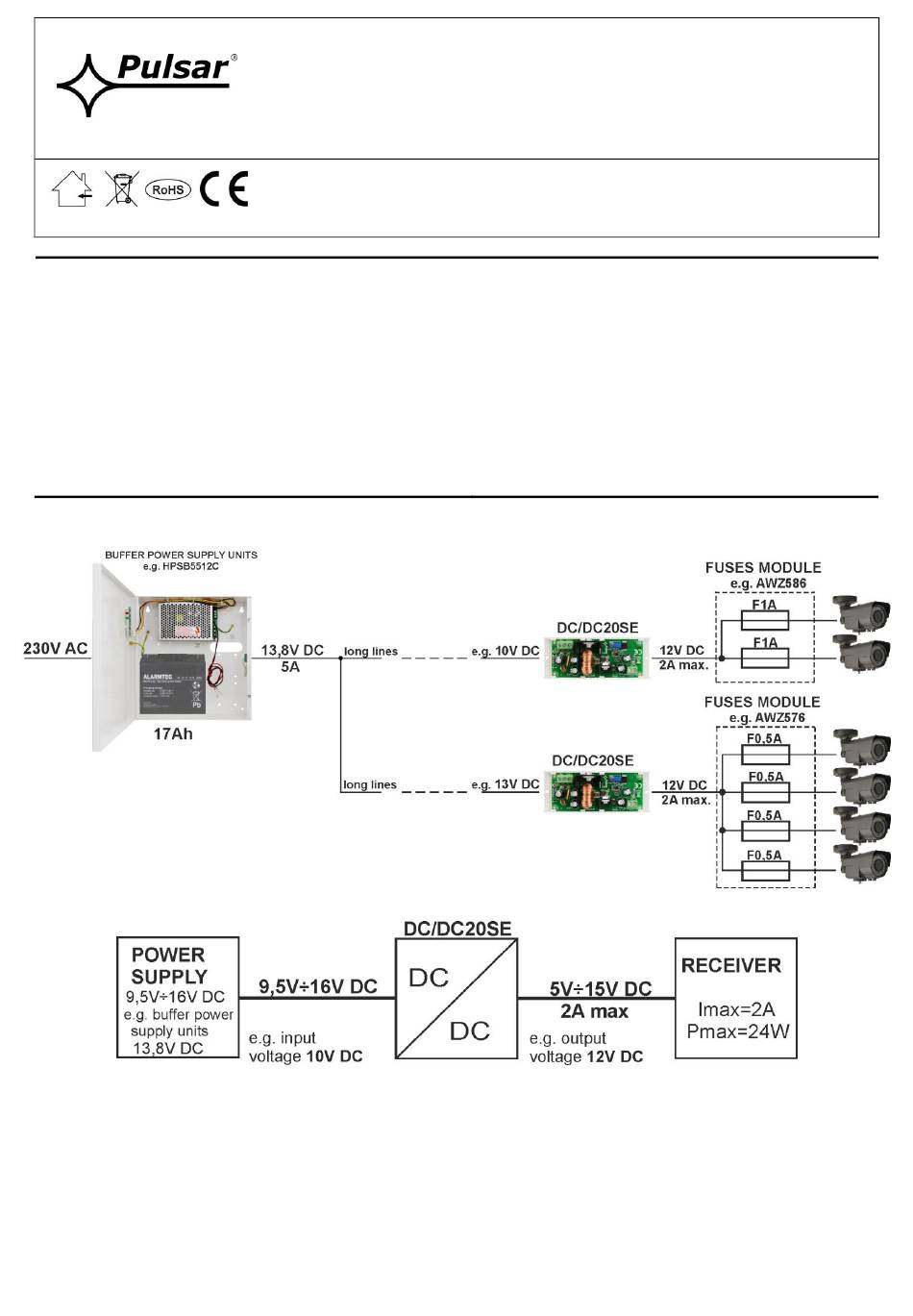

Example of use of the DC/DC20SE step up / step down converter with adjustable output voltage.
1. Technical description
The DC/DC 2A (DC/DC20SE) voltage- step up / step down converter is used for maintaining a constant output voltage in the
range between 5÷15V DC, adjusted with the V
When the input voltage at the output is lower than needed, the converter increases it to the set value. When the input voltage at the
output is higher than needed, the converter lowers it to the needed value set by the V
Imax=2A (Pmax=24W). The module does not feature galvanic isolation between input/output (IN-AUX) and operates on common
"ground" (0V) potential (IN- and AUX- terminals are galvanically connected = common terminal).
DC/DC 2A Step up / step down DC/DC converter with
adjustable output voltage
The module's features:
Schematic diagram of the converter operation.
Adjustment of the
converter
potentiometer, regardless of the input voltage fluctuations in the range of 9,5V ÷ 16V.
ADJ
1
DC/DC20SE
v.1.0
Edition: 2 from 15.01.2016
Supercedes the edition: 1 from 26.08.2015
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 89%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
output voltage: 5V÷15V DC, 2A max.
potentiometer. The maximum load current is
ADJ
EN**
