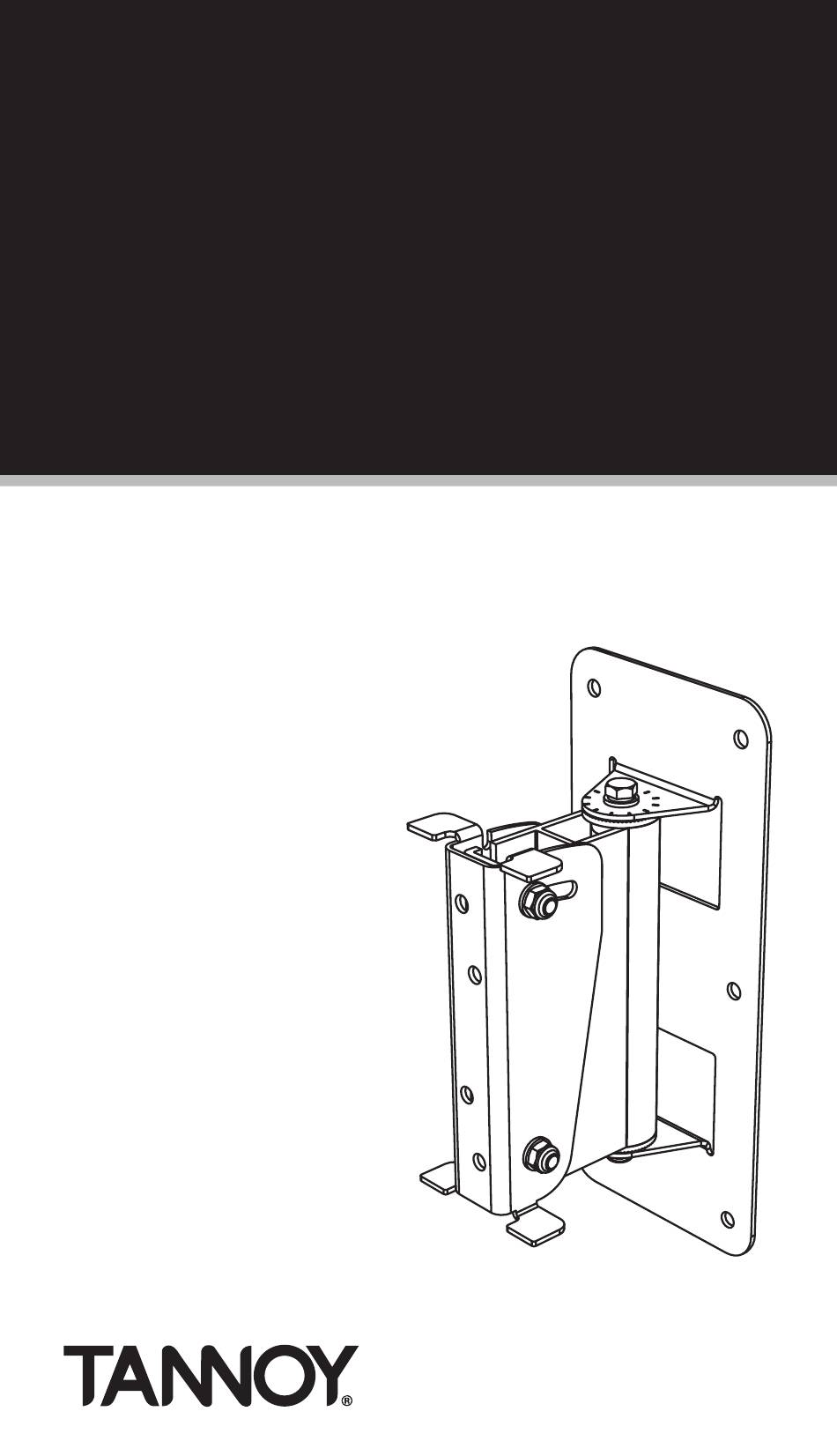

- Page 1 VLS SERIES Pan and Tilt Bracket Installation Guide...
-
Page 2: Important Safety Instructions
10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, does not operate normally, or has been dropped. VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0... -
Page 3: Table Of Contents
4.3 Fixing the bracket to the loudspeaker............4 4.4 Mounting the loudspeaker on the wall bracket........5 4.5 Adjusting the pan and tilt...............5 4.5.1 Pan....................5 4.5.2 Tilt....................5 Bracket pan and tilt angles..............6 Specifications...................6 VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0... -
Page 4: Hardware Included
Use all 6 fixing holes to ensure that the load is spread evenly. 4.3 Fixing the bracket to the loudspeaker Attach the bracket to the loudspeaker using the included screws and washers. VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0... -
Page 5: Mounting The Loudspeaker On The Wall Bracket
4.5.2 Tilt Loosen bolts “E” and “F” on the loudspeaker bracket using a spanner (wrench) and the supplied Allen key. Adjust to desired angle then re-tighten bolts “E” and “F”. VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0... -
Page 6: Bracket Pan And Tilt Angles
45º 35º 6. Specifications Hardware (screws, nuts and washers): Stainless steel Bracket material: Aluminium and steel with high corrosion-resistant nickel zinc finish Colours: Black Ral 9004 or White Ral 9003 VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0... - Page 7 Notes VLS Series Pan and Tilt Bracket Installation Guide rev 1.0.0...
- Page 8 tannoy.com...
