Steps

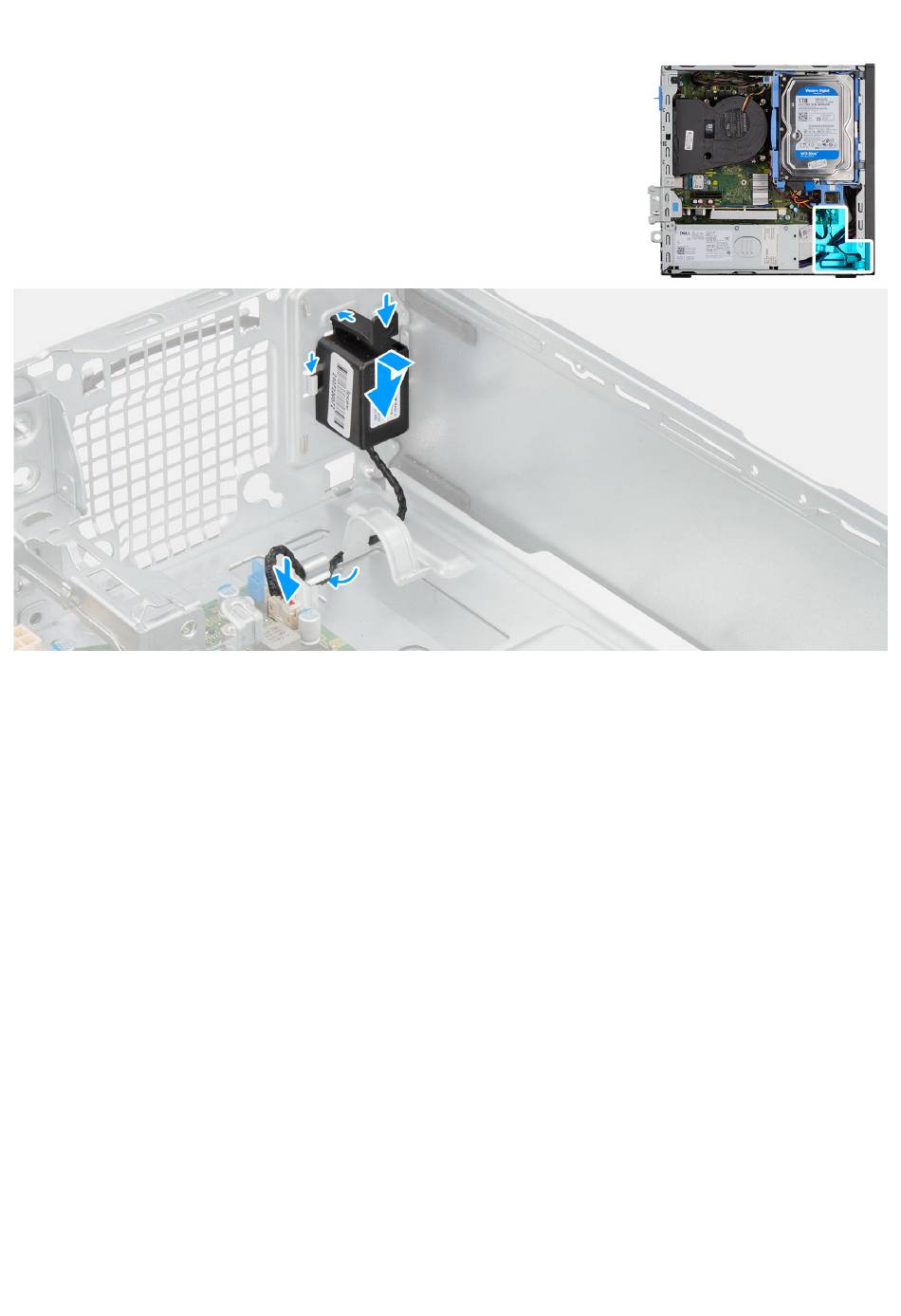

1. Press and slide the speaker in the slot on the chassis until it snaps into place.
2. Route the speaker cable through the routing guide on the chassis.
3. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the
side
cover.
2. Follow the procedure in
Power-supply unit
Removing the power-supply unit
Prerequisites
1. Follow the procedure in
2. Remove the
side
cover.
3. Remove the
front
bezel.
4. Remove the
2.5-inch
5. Remove the
3.5-inch
6. Remove the
disk-drive
after working inside your
before working inside your
hard-drive.
hard-drive.
cage.
computer.
computer.
Removing and installing components
79
