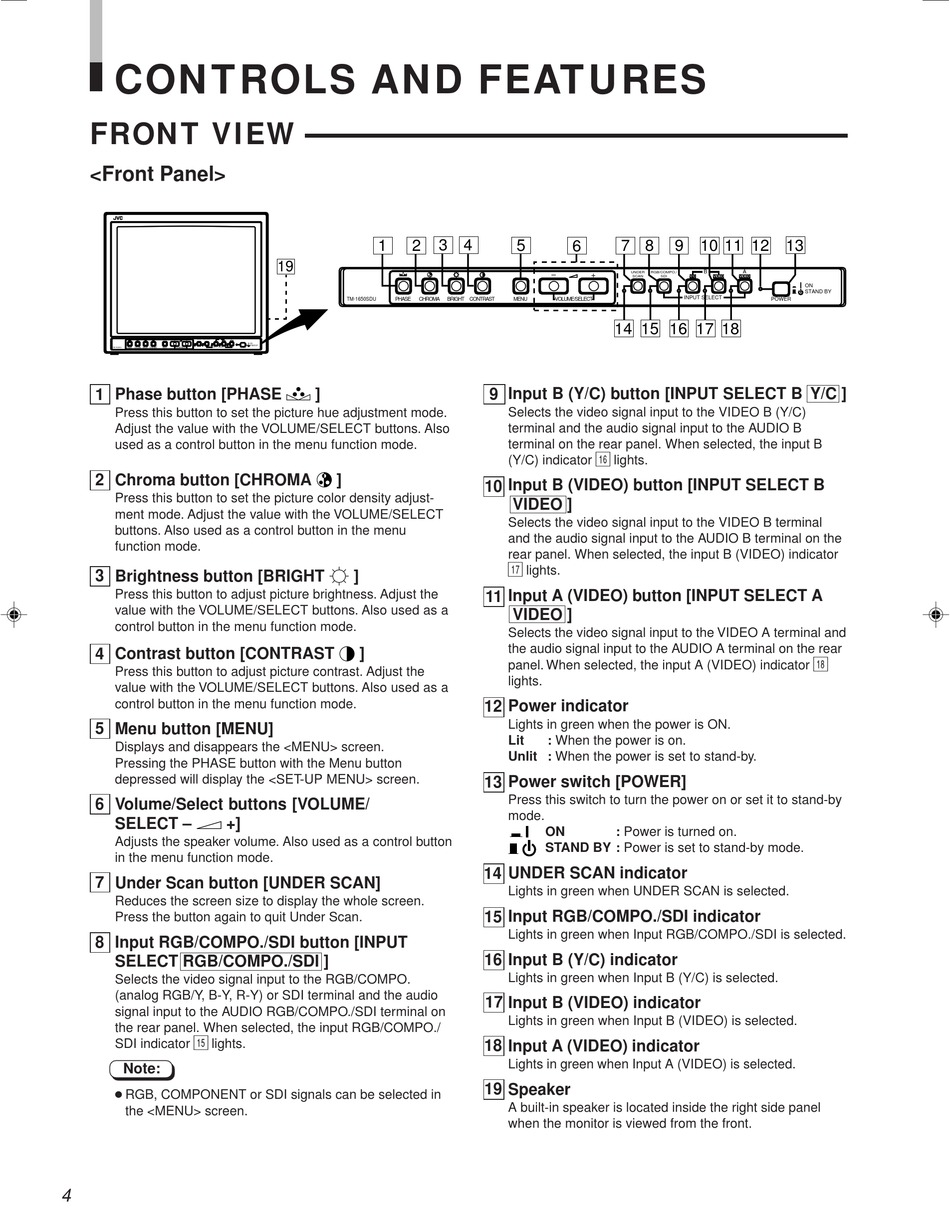

CONTROLS AND FEATURES

FRONT VIEW
<Front Panel>
UNDER RGB/COMPO./ B
– +
SCAN SDI Y/ C VIDEO
TM-1650SDU PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT INPUT SELECT
1 Phase button [PHASE
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
2 Chroma button [CHROMA
Press this button to set the picture color density adjust-
ment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3
Brightness button [BRIGHT
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
Contrast button [CONTRAST
4
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5
Menu button [MENU]
Displays and disappears the <MENU> screen.
Pressing the PHASE button with the Menu button
depressed will display the <SET-UP MENU> screen.
6 Volume/Select buttons [VOLUME/
SELECT –
Adjusts the speaker volume. Also used as a control button
in the menu function mode.
7 Under Scan button [UNDER SCAN]
Reduces the screen size to display the whole screen.
Press the button again to quit Under Scan.
8 Input RGB/COMPO./SDI button [INPUT
SELECT RGB/COMPO./SDI ]
Selects the video signal input to the RGB/COMPO.
(analog RGB/Y, B-Y, R-Y) or SDI terminal and the audio
signal input to the AUDIO RGB/COMPO./SDI terminal on
the rear panel. When selected, the input RGB/COMPO./
%
SDI indicator lights.
Note:
● RGB, COMPONENT or SDI signals can be selected in
the <MENU> screen.
4
1
19
TM-1650SDU
A
VIDEO
ON
STAND BY
POWER
]
]
]
]
+]
2 3 4 5
–
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
Input B (Y/C) button [INPUT SELECT B Y/C ]
9
Selects the video signal input to the VIDEO B (Y/C)
terminal and the audio signal input to the AUDIO B
terminal on the rear panel. When selected, the input B
(Y/C) indicator
Input B (VIDEO) button [INPUT SELECT B
10
VIDEO ]
Selects the video signal input to the VIDEO B terminal
and the audio signal input to the AUDIO B terminal on the
rear panel. When selected, the input B (VIDEO) indicator
&
lights.
Input A (VIDEO) button [INPUT SELECT A
11
VIDEO ]
Selects the video signal input to the VIDEO A terminal and
the audio signal input to the AUDIO A terminal on the rear
panel. When selected, the input A (VIDEO) indicator
lights.
Power indicator
12
Lights in green when the power is ON.
Lit : When the power is on.
Unlit : When the power is set to stand-by.
Power switch [POWER]
13
Press this switch to turn the power on or set it to stand-by
mode.
ON
STAND BY : Power is set to stand-by mode.
UNDER SCAN indicator
14
Lights in green when UNDER SCAN is selected.
Input RGB/COMPO./SDI indicator
15
Lights in green when Input RGB/COMPO./SDI is selected.
16 Input B (Y/C) indicator
Lights in green when Input B (Y/C) is selected.
17 Input B (VIDEO) indicator
Lights in green when Input B (VIDEO) is selected.
18
Input A (VIDEO) indicator
Lights in green when Input A (VIDEO) is selected.
19 Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
7 8
6 9 10 11
B
UNDER RGB/COMPO./
+
SCAN SDI Y/ C VIDEO
INPUT SELECT
14 15 16 17 18
^
lights.
: Power is turned on.
13
12
A
VIDEO
ON
STAND BY
POWER
*
