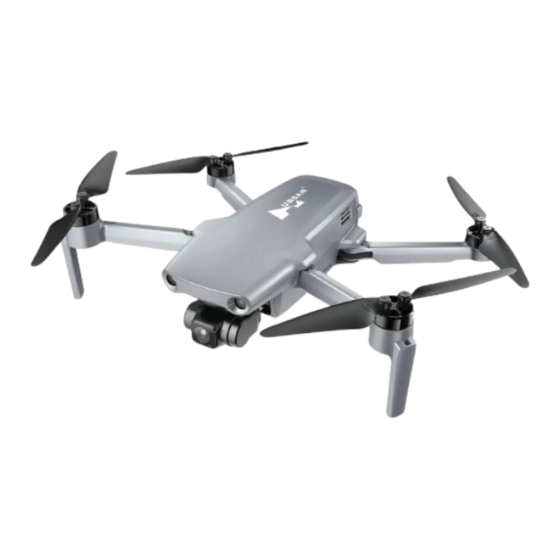

Summary of Contents for Hubsan ZINO MINI PRO

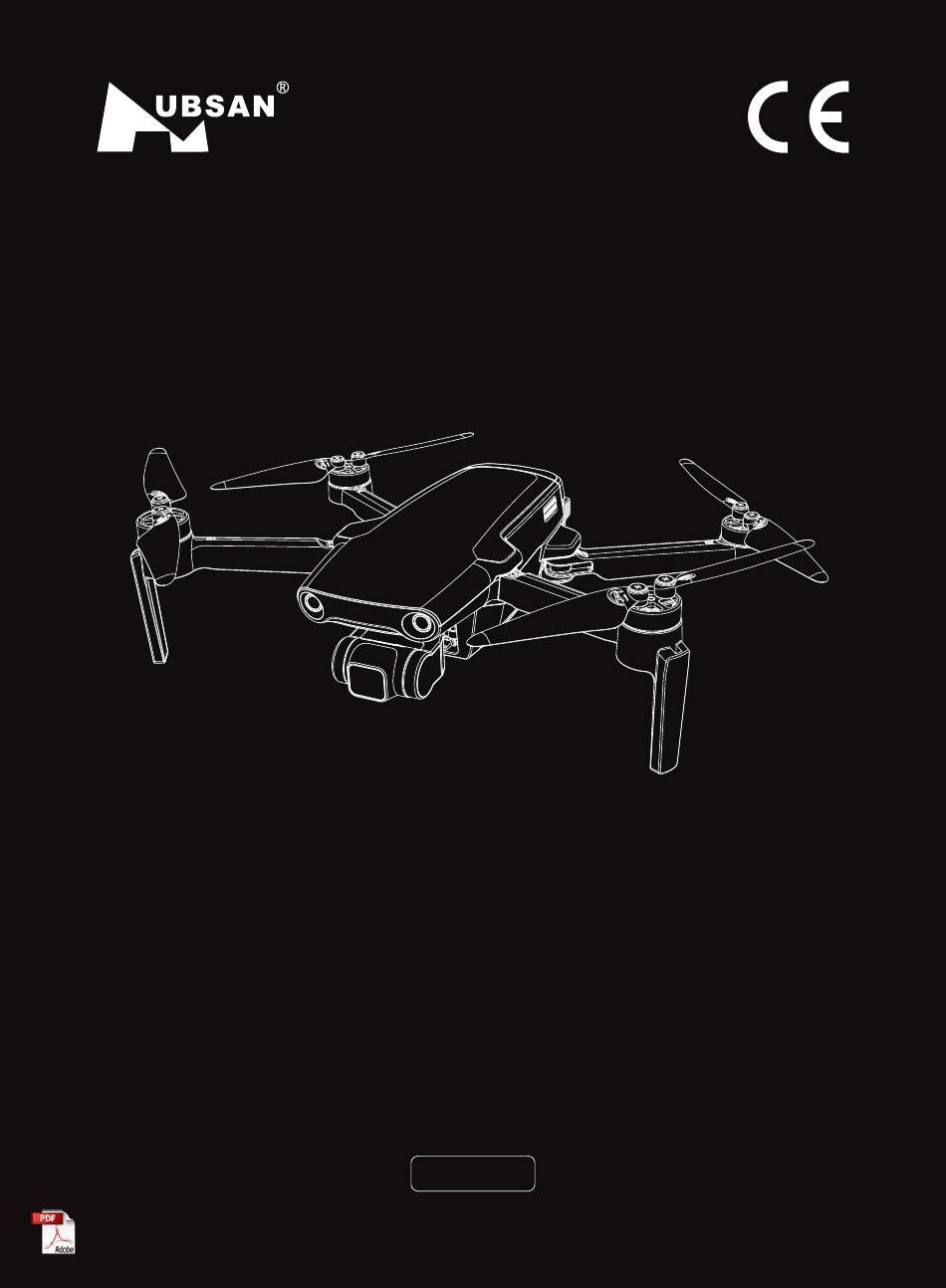

- Page 1 ZINO MINI PRO 《 User Manual 》 V23.04.14...
-
Page 3: Information To The User
/ guidelines set forth by HUBSAN. Part of the details of this document may change with the upgrade of the product software version. Please read the upgrade details carefully before upgrading the software version. -
Page 4: Important Safety Information
MAINTENANCE Do not try to open or repair the units by yourself. Contact HUBSAN or HUBSAN authorized dealers for service. For more information, please visit the official website at www.hubsan.com BATTERY Do not disassemble, squeeze, impact, burn, drop or trample the battery. - Page 5 7.4V. Maintaining and storing the battery with about 7.4V can increase battery life. ● Please use only HUBSAN chargers or HUBSAN Charging Hub for battery charging. ● Do not charge in a flammable and explosive environment to prevent fire.
-
Page 6: Table Of Contents
2.4 Remote Control Diagram 2.5 Remote Control Antenna Angle 2.6 Transmitter Sticks& Thumbwheel Calibration 3 Flight Disclaimer 3.1 Download The X-HUBSAN 2.0 APP Fcc Information 3.2 APP flight control interface 3.3 Pairing The Aircraft 3.4 Compass Calibration 3.5 Staring / stopping The Motors... -
Page 7: Aircraft
1.Aircraft 1.1 Aircraft Spare Part Propeller A Propeller B Smart Battery Motor Battery level indicator Tripod (With Antenna) Battery power switch Gimbal Protection Guard Forward Vision System Body shell Backward Vison System 3-axis gimbal... - Page 8 Bind button Battery buckle Infrared Assistant Hovering Sensing System Downward Vision System Auxiliary Light Note:The aircraft will generate heat when it is running, after the flight, please Avoid direct skin contact with the bottom heat sink and the metal motor housing.
-
Page 9: Aircraft Battery
1.2 Aircraft Battery 1.2.1 Instructions for Smart Charging Manager Aircraft Lithium Battery Capacity: 3000mAh, 7.2V lithium 2S intelligent battery.Consumers can charge it with an ordinary cell phone charger, or use the official standard 9V/2A charger. The time is about 1.5 hours. And also can use other third-party chargers with DC5521 heads with an output voltage range of 9V-12V and a current greater than 2A for charging. -
Page 10: Aircraft Battery Installation
(9) Short Circuit Protection: The power supply is automatically cut if a short circuit is detected. (10) Battery Cell Damage Protection: HUBSAN App displays a warning message when a damaged battery cell is detected. (11) Communication: Information about the battery's voltage, capacity, and current is transmitted to the aircraft. -
Page 11: Battery Switch
1.2.5 Precautions For Battery Be sure to fully charge each time before using the Intelligent Battery. Charge the intelligent battery only with Hubsan supplied power adapter and intelli- gent charging modules. (1) After each flight, battery temperature maybe higher. Allow Intelligent Battery to cool down to normal room temperature before charging. -
Page 12: Propellers
HUBSAN brand new propeller screws 1.4 Camera The ZINO MINI PRO camera uses a Type 1/1.3 CMOS Sensor, supports 2.4um fusion large pixels, and f/1.85 super larger aperture. (1.) When using the camera for the first time, please tear off the protective film of the camera lens before use. -
Page 13: Remote Controller
2. Remote Controller 2.1 Names Of Remote Japan Mode( Mode 1 ) : Controller Components (1) Throttle/ left & right flight controller levers (2) Forward & Backward/Rudden stick America Mode : 1.Throttle/Rudden stick controller levers 1（2） 2（1） 2.Forward & Backward / left & right flight controller levers 3.Long press for One key return ( Aircraft will return to home point) /... - Page 14 America mode(Mode 2) and Japan mode(Mode 1) can switch by X-Hubsan 2.0 APP settings: ① Open APP and choose relevant aircraft model to enter the flight control interface, and click the gear icon in the upper right corner to enter the settings.
-
Page 15: Remote Controller Features
2.2 Remote Controller Features S/N Key / Switch Function Move the stick forward or backward to ascend or Throttle / Rudder descend the drone. Move the stick left or right to Stick ( Mode 1 ) rotate the drone Clockwise or counter clockwise. Move the stick forward or backward to fly the drone Elevator / Aileron forward or backward. - Page 16 Key / Switch Function Long press the Fn+ wheel to adjust the zoom function. Press and hold the Photo+ wheel to adjust the brightness of the remote control screen. When the drone is not taking off, press the Fn button and the Video button for more than 3 seconds to activate the remote control code pairing operation.
-
Page 17: Charging The Transmitter Battery
2.3 Charging The Transmitter Battery The remote is charged using the Micro USB cable as shown: The remote control charging time is about 2.5 hours.The remote control battery indicator light will flash during charging, and will stay on solid when charging completes.The transmitter can use about 1.5 hours after fully charged. -
Page 18: Remote Control Antenna Angle
2.5 Remote Control Antenna Angle （2） （3） （4） (1) Adjust the angle of the remote control antenna and let it face the flight direction of the aircraft as much as possible. (2) Long-distance state, the distance between the two antennas is properly tightened to maintain the antenna directivity. -
Page 19: Flight
B e f o r e f l y i n g , d o w n l o a d a n d i n s t a l l t h e X-HUBSAN 2.0 APP. You could download the APP for free by scanning the code at right or search in APP Store (IOS) Or Goggle Play. -
Page 20: Pairing The Aircraft
② Press the remote control switch to connect to the mobile phone, and wait for the remote control to connect the aircraft in success. ③ Open the mobile phone X-HUBSAN 2.0 APP, it will automatically jump out of the activation interface. -
Page 21: Compass Calibration
3.4 Compass Calibration When using the drone for the very first time, the compass calibration message will pop up before takeoff. Follow the instructions on your screen, rotate the drone horizontally, then point the drone nose to ground and rotate it clockwise. The compass calibration message will disappear once it is completed. - Page 22 (such as tumbling and other abnormal conditions) by default. If it take effect at any time are needed, the user needs to manually set it in the X - hubsan 2 app.
-
Page 23: Aircraft Functions
4 Aircraft Functions 4.1 Flight Control Mode Flight Control Mode (The flight controller monitors the GPS signals and switches to the corresponding flight modes) Use GPS and downward vision positioning system to achieve precise hovering, stable flight, intelligent flight mode, etc. The Mode vision system works in a well-lit environment . -
Page 24: Aircraft Indicator
4.2 Aircraft Indicator Video Indicator（Red）、Image Indicator（Yellow） Functions Indicator Camera Error Red LED flashes slowly (1 time/second) Red LED 、Yellow LED off Function Error Red LED 、Yellow LED off Booting Video Indicator Red LED solid Working Image Indicator Yellow LED solid Working Binding mode Yellow LED flashes quickly... - Page 25 RTH-Process 1. Ensure the "home" point is recorded. 2. Press the return to home icon 3. The aircraft will adjust its direction. 4. The aircraft will climb to the safe altitude as set in the App (1) Regardless of the current height of the aircraft, if the aircraft is within 5 meters of the horizontal distance from home point, it will land;...
-
Page 26: Landing Apron Search
The Downward Vision System and Infrared Sensing System helps the aircraft maintain its current position and hover in place more precisely. The Auxiliary Bottom Light located on the underside of the ZINO MINI PRO aircraft improves visibility for the Downward Vision System in weak light conditions. - Page 27 When the X-Hubsan 2.0 APP prompts the user that advanced calibration is required, pls connect the aircraft to the computer and use the Hubsan Visual Calibration Assistant visual calibration software, complete the calibration by referring to the visual calibration tutorial. For calibration software please visit the official website on Hubsan www.hubsan.com - Service Support - Download Center...
- Page 28 50meters. Please note that the Vision Positioning function may be affected if the aircraft's altitude is above the limit. In X-Hubsan 2.0 APP you can set the Auxiliary Light (on, off or automatic). If Auto is selected, the Auxiliary Light is automatically enabled when the environment light is too weak. Please note that the Vision System cameras performance may be affected when the auxiliary bottom light is enabled.
-
Page 29: Struggling Mode
When the aircraft battery power drops to 11% during the flight, the " " icon will pop up in the upper left corner of flight control interface on X-Hubsan 2.0 APP . Click it will open the struggling mode. When the struggling mode turns on, the aircraft will limit the battery power output so that the aircraft flight distance can be optimized;... -
Page 30: Smart Mode
4.7 Smart Mode 4.7.1 Creative Video 360° Shooting : (1) Select the direction of rotation (clockwise / counterclockwise); (2) Set the rotation angle, the range of rotation angle (90 ° -360 ° ,accuracy 1°); (3) Set the rotation speed (1-30 ° / sec, accuracy 1); (4) Click GO, the aircraft rotates in place hovering at its position, shooting a video during the rotation;... -
Page 31: Orbiting
4.7.2 Orbiting Tap on "Mode Selection" then "Orbit Mode" to set the current location or the position of the mobile device as the center. During Orbit mode, you can adjust the speed and direction by moving the control stick left and right and adjust the orbit radius by moving the control stick forward and backward. -
Page 32: Follow Mode
4 5 . 8 7 7 5 0 3 , - 1 0 6 . 1 2 3 9 8 4 ， 6 5 m Active Tracking 3.0 ZINO MINI PRO Active Tracking 3.0 includes Spotlight, Active Tracking, Circle Tracking. -
Page 33: Hyperlapse
Active Tracking 3.0 includes the following modes: Trace and Parallel. (1)The aircraft tracks the subject at a constant distance and follows the target as it moves. The maximum flight speed is 8m/s. (2)The aircraft tracks the subject at a constant angle and distance from the front and side. The maximum flight speed is 8m/s.The parallel modehas no available obstacle avoidance. -
Page 34: Panorama Mode
Circle T h e a i r c r a f t w i l l t a k e a c e r t a i n n u m b e r o f p h o t o s a n d c o m p o s e time-l apse video automatic al l y accordin g to the ci rcl e poin t of i n t e r e s t a n d t h e p a r a m e t e r s s e t . -
Page 35: Adjustment
4.8 Gimbal Pitch Adjustment Please make sure there are no stickers or impurities on the gimbal before take off, and place the aircraft on flat and open ground. Please do not bump the gimbal after the power is turned on. The gimbal contains precision parts. -
Page 36: Faq
Transmitter Adjustment You can adjust the angle of gimbal pitch by fiddling with the control thumb-wheel of gimbal pitch. 1.The mobile device and remote control cannot be connected (1) Check whether the status of the APP control signal icon has changed (2) For USB Settings on android phones, check out "Android phone connection tutorial"... -
Page 37: Disclaimer
D i s c l a i m e r HUBSAN accepts no liability for damages, injuries or any legal responsibilities directly or indirectly from the use of HUBSAN products under the following conditions: 1.Damages, injuries or any legal responsibilities when users are drunk, under... - Page 38 / or natural structure collapses, ice, avalanches, debris, landslides, earthquakes, etc. 12. The acquisition, through use of HUBSAN products (specifically but not limited to aircraft), of any data, audio, video that results in infringement of law and / or rights.
-
Page 39: Fcc Information
F C C I N F O R M A T I O N This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 40 ●Propellers may cause injury ●This product is not a toy ●Not suitable for children under 14 years of age Product name: ZINO MINI PRO Product Standard Number:Q / HBS 001-2017 Vendor: Shenzhen Hubsan Technology Co., Ltd Address: Unit 2801, Building F, Xinghe WORLD , Yabao Road, Bantian Street, Longgang District, Shenzhen Email: service@hubsan.com...
