Sonel MIC-10k1 / 5050

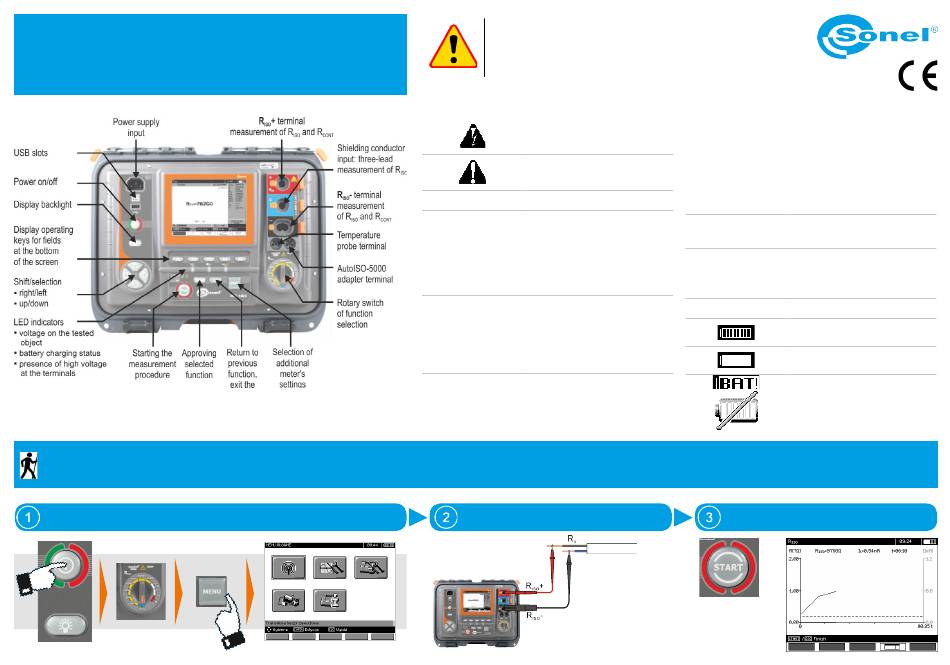

Insulation Resistance Meter ● QuickStart
First steps
Turn on the meter, select and configure the test
Connecting voltage higher then 750 V between any of the test
terminals may damage the meter and cause a hazard to the user.
WARNINGS AND INFORMATION DISPLAYED BY THE METER
Test voltage is present on terminals
of the meter.
You must consult the manual.
Ready!
The meter is ready for measurement.
This message displayed during
or after the measurement indicates
major noise in the system during
NOISE!
the measurement. The measure-
ment result may be affected by
additional uncertainty.
During the measurement, a voltage
Voltage on object
appeared or the object cannot be
Un>50V (for DC voltage) or
discharged for 30 seconds. After
Un~>500V (for AC voltage)
+ continuous two-tone
5 seconds the meter returns to its
beep + red LED flashing
default state - voltmeter.
Activation of current limit. The
symbol displayed is accompanied
LIMIT I!
by a continuous beep.
Connect the meter
▪ Double-lead measurement
▪ Three-lead measurement
▪ Multicore cable measurement
v2.00 | 24.11.2020
Breakdown of the tested object
insulation, the measurement is
interrupted. The message appears
after displaying LIMIT I! for 20 s
HILE !
during the measurement, when
voltage previously reached the
nominal value.
Resistance compensation complet-
AUTOZERO
ed for test leads.
Calibration
Contact manufacturer's authorised
coefficients
service point to re-calibrate device.
error
Battery status
Battery fully charged.
Battery discharged.
Battery discharged. Charge battery.
Start the measurement
Observe the resis-
tance and current
as current readings
or chart (F4).
