OPERATING THE BED
1. Operating beds with 4-sectioned mattress platforms

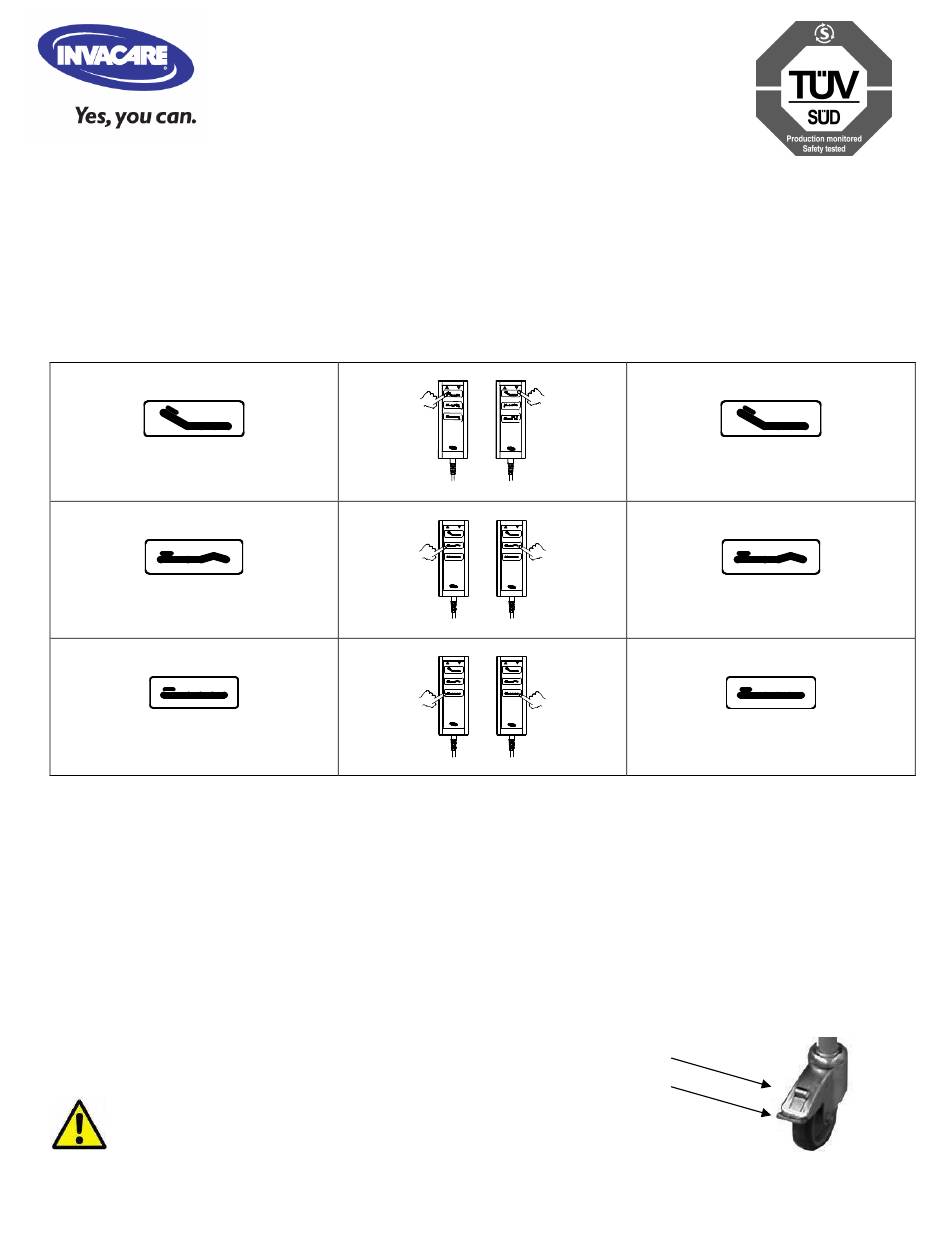

The Medley bed is equipped with HB 70 hand control. Please see illustration 1
Backrest up
Button with the symbol shown above.
Push the left-hand side of the button.
Thigh section up
Button with the symbol shown above.
Push the left-hand side of the button.
Height up
Button with the symbol shown above.
Push the left-hand side of the button.
2. Operation of brakes. Please see illustration 2
Each of the bed's 4 castors is provided with brakes for both lengthwise and crosswise locking.
The brake is foot operated.
When the bed is positioned correctly, at least one castor at the head section and one castor at the foot
section must be locked.
Braking:
Step on the pedal.
Releasing the brake: Step on the release pedal.
The bed's castors must be locked during care of a client
in bed or when using any positioning function.
INVACARE® ETUDE MEDLEY
OPERATING INSTRUCTIONS
Backrest down
Button with the symbol shown above.
Push the right-hand side of the button.
Thigh section down
Button with the symbol shown above.
Push the right-hand side of the button.
Height down
Button with the symbol shown above.
Push the right-hand side of the button.
2
1
Illustration 1
Illustration 2
