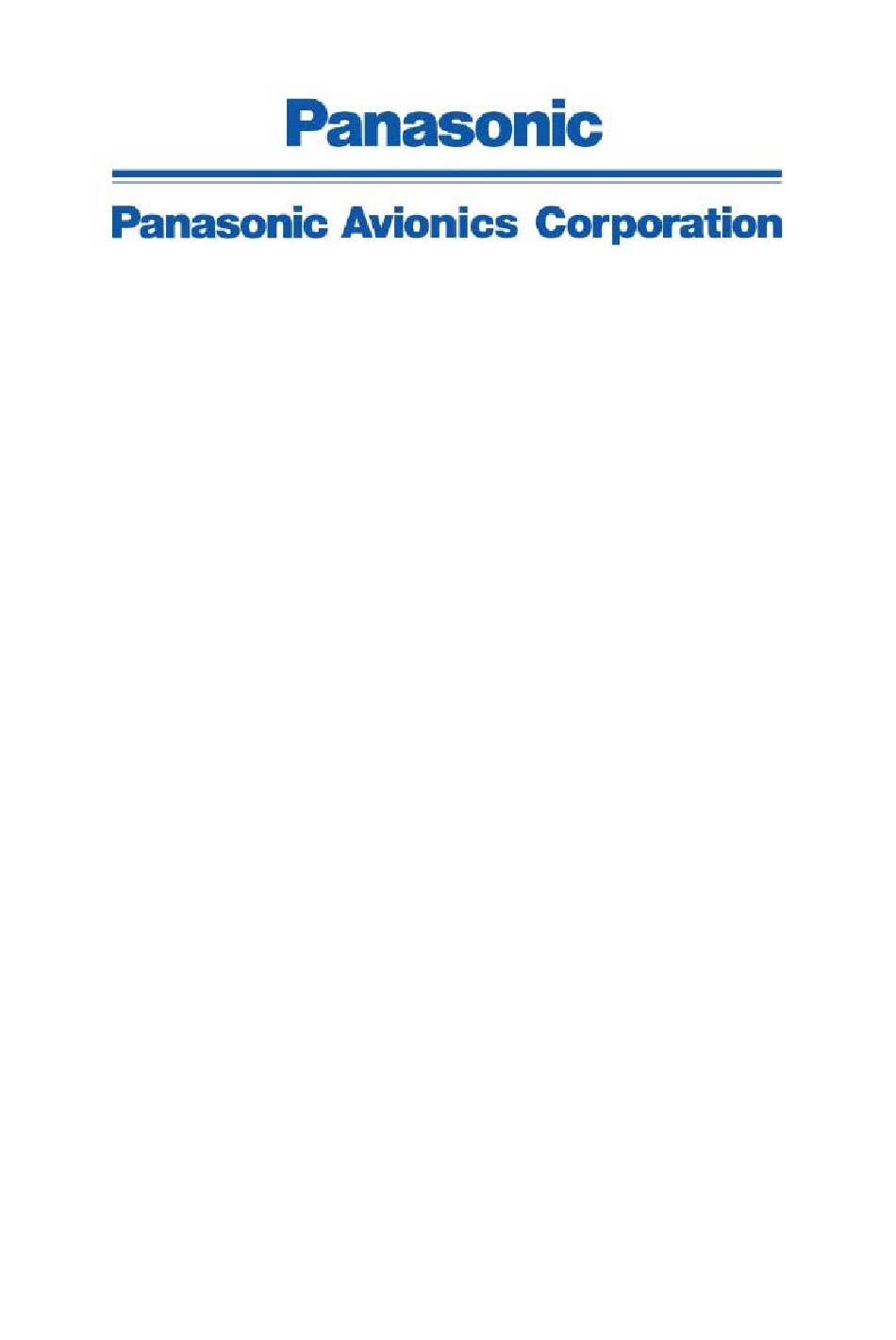

RD-CWAP5G User Manual
QCA9990 5G 4x4 a/n/ac MIMO Mini PCIe Card
(Model : M120000017)
Rev. 1.0
2017/03/21
Notice:
1.
Delta Networks Inc. reserves the right to change specifications detailed in this document at any time without notice, and assumes no responsibility for any errors
within this document.
2.
This document contains proprietary technical information in which is the property of the Delta Networks inc. and shall not be disclosed to others in whole or in part,
reproduced, copied, or used as the basis for design, manufacturing, or sale of apparatus without written permission of Delta Networks Inc.
RD-ECMWIFI User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD-CWAP5G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic RD-CWAP5G

Summary of Contents for Panasonic RD-CWAP5G

  • Page 1 RD-CWAP5G User Manual QCA9990 5G 4x4 a/n/ac MIMO Mini PCIe Card (Model : M120000017) Rev. 1.0 2017/03/21 Notice: Delta Networks Inc. reserves the right to change specifications detailed in this document at any time without notice, and assumes no responsibility for any errors within this document.

  • Page 2: Table Of Contents

    Table of Content PRODUCT OVERVIEW ......................1 GENERAL DESCRIPTION ......................1 1.1. FEATURES ............................1 1.2. SOFTWARE ARCHITECTURE ..................... 5 REVISION HISTORY......................... 7 RD-ECMWIFI User Manual...

  • Page 4: Product Overview

    Product Overview 1.1. General Description The document describes the hardware specification of 4Tx4R 802.11 a/n/ac single band WIFI module. The device is built in Qualcomm QCA9990 which is a highly integrated wireless local area network (WLAN) system-on-chip (SoC) for 5GHz 802.11ac WLAN applications.

  • Page 5: Software Architecture

    Software architecture The device implements QCA9990 integrating half-duplex OFDM, CCK, and DSSS PHY, supporting 1.733 Gbps for 802.11ac 80 MHz channel operation. It supports 802.11n up to 288 Mbps for 20 MHz and 600 Mbps for 40 MHz channel operations, and IEEE 802.11 a/n/ac data rates. Additional features include 802.11ac explicit transmit beamforming (TxBF), 802.11 compatible implicit TxBF, MIMO features, Maximal Likelihood (ML) decoding, Low-Density Parity Check (LDPC), Maximal Ratio Combining (MRC), Space Time Block Code (STBC), and On-Chip One-Time programmable (OTP)

  • Page 6: Revision History

    Revision History Revision Date By Whom Remark 03/21-2017 Bessel.Huang/ Initialize  Jimyin.Chen   RD-ECMWIFI User Manual...

  • Page 7: Important Note

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
  • Page 9 Industry Canada statement: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 10: Note Importante

    considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate Canada authorization. NOTE IMPORTANTE: Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du Canada n'est plus considéré...
  • Page 11 RD-ECMWIFI User Manual...

This manual is also suitable for:

M120000017
