Corsair M75 Manual

CHARGING THE MOUSE

The M75 WIRELESS mouse must be fully charged before its first use.
Connect the mouse to an available USB 2.0 or 3.0 port on your PC with the USB CHARGING / DATA CABLE (N).
The MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H) on the mouse will begin pulsing green to denote battery charging and will turn solid when charging is complete.

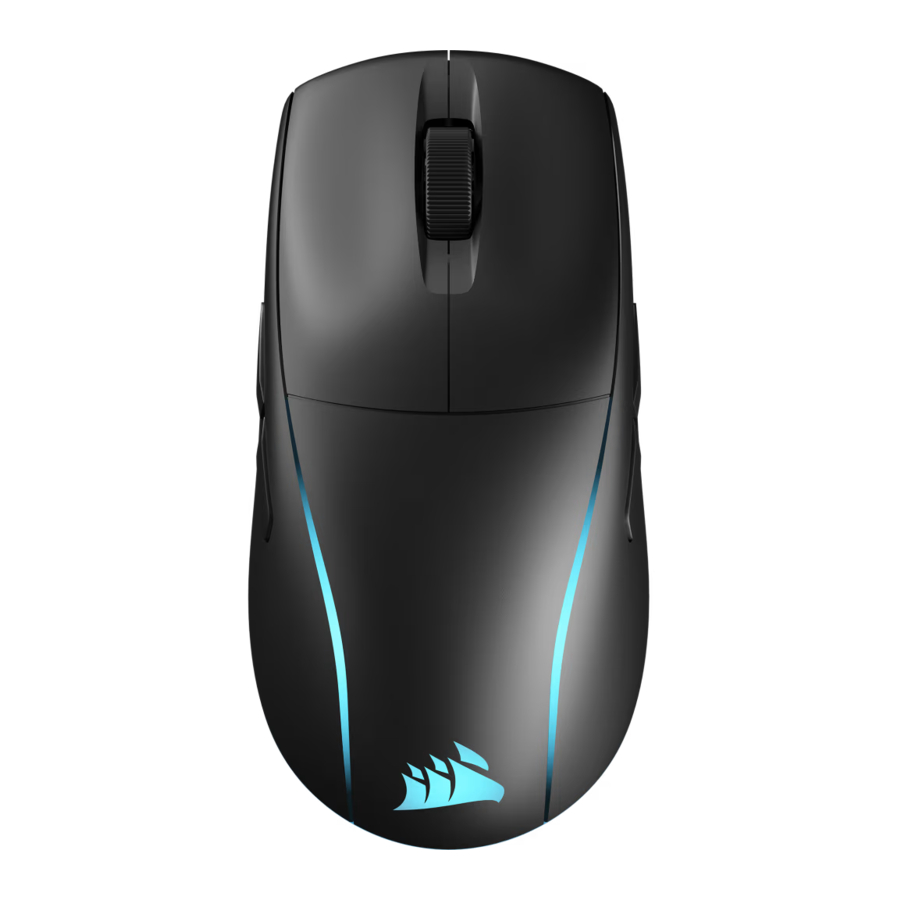

GETTING TO KNOW YOUR MOUSE

1. LEFT MOUSE BUTTON
2. RIGHT MOUSE BUTTON
3. MIDDLE CLICK / SCROLL WHEEL
4. LEFT FORWARD BUTTON
5. LEFT BACK BUTTON
6. RIGHT FORWARD BUTTON
7. RIGHT BACK BUTTON

8. MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB
9. DPI BUTTON
10. USB CHARGING / DATA PORT
11. POWER / WIRELESS MODE BUTTON
12. USB WIRELESS RECEIVER STORAGE
13. USB WIRELESS RECEIVER
14. USB CHARGING / DATA CABLE

SETTING UP 2.4GHz SLIPSTREAM WIRELESS

Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.

• Connect the USB WIRELESS RECEIVER (L) to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port. (e.g. on CORSAIR MM700, MM800, MM1000 mousepads).
• The MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H) will turn solid white when connected.
• If the MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H) is blue, simply press the POWER / WIRELESS MODE BUTTON (K) once and it will turn white.
• Download the iCUE software fromwww.corsair.com/downloads.
• Run the installer program and follow instructions for installation.

If reconnection is required, initiate USB wireless receiver pairing via the iCUE software settings menu.

SETTING UP BLUETOOTH WIRELESS

Bluetooth wireless is best for everyday computing tasks, productivity, and office applications.

• Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
• Power on your mouse by holding down on the POWER / WIRELESS MODE BUTTON (K) for 5 seconds, or until the MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H) lights up.
• Press and hold down the SCROLL WHEEL (C) and then press the POWER / WIRELESS MODE BUTTON (K) once to enter Bluetooth pairing mode.
• Follow the instructions provided to successfully connect your device.
• The MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H) will turn solid blue when connected.

ON-THE-FLY DPI TUNING

This mouse has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting.

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE software. If iCUE is running, then changes are saved to the software profile directly.

MOUSE STATUS AND INDICATIONS

Wireless connection, battery status, and DPI stages are communicated through the MULTIPURPOSE INDICATOR & CUSTOMIZABLE RGB (H).

CHANGING DPI AND PROGRAMMABLE BUTTONS

To tailor your DPI and programmable buttons to your preferences, you must have iCUE installed on your device.

• Download the iCUE software from www.corsair.com/downloads.
• Run the installer program and follow instructions for installation.
• Connect the USB WIRELESS RECEIVER (M) to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port. (e.g. on CORSAIR MM700, MM800, MM1000 mousepads).
• Once connected, follow the instructions presented in iCUE for how to customize your M75 WIRELESS.
