Corsair DARK CORE RGB, CH-9315311-WW, CH-9315311-RF Manual

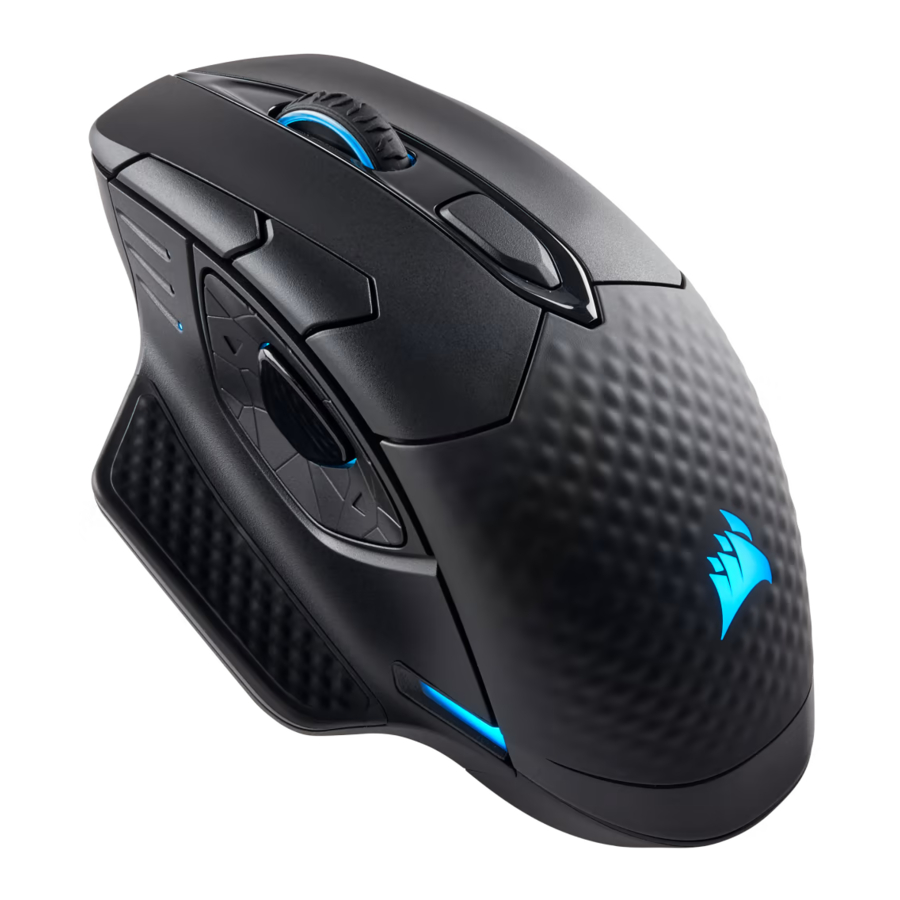

INTRODUCTION

DARK CORE RGB features ultra-fast 1ms wireless, Bluetooth compatibility and wired mode for performance gaming with versatile connectivity. The high-accuracy, 16,000 DPI optical sensor, customizable in 1 DPI steps, can be tuned to virtually any mouse pad. The comfort-contoured shape and 2 interchangeable side grips ensures precision and control. Onboard profile storage, programmable through CUE software, saves RGB lighting effects, macros and DPI settings for easy access to your settings. Up to 24 hours of battery life and continuous use through USB charging while gaming. The durable Omron switches are rated for 50 million clicks to provide ultra-fast response and reliability over time.


The DARK CORE RGB wired/wireless mouse must be fully charged before its first use.

CHARGING THE UNIT

Connect the DARK CORE RGB wired/wireless mouse to an available USB 2.0 or 3.0 port on your PC with the USB charging/data cable. The multi-purpose LED indicator on the mouse will begin pulsing green to denote battery charging and will turn solid when charging is complete.

The multi-purpose LED indicator will briefly show a color corresponding to the battery level charge when first turned on and will turn red when charging is required. The battery has no "memory effect" and should not be completely discharged before recharging to ensure it will last for hundreds of charge/discharge cycles.

STATUS MULTI-PURPOSE LED INDICATOR
LED #1 LED #2 LED #3
BATTERY CHARGING PULSING GREEN OFF OFF
BATTERY CRITICAL, RECHARGE REQUIRED PULSING RED OFF OFF
BATTERY LOW, RECHARGE SOON BLINKING RED BLINKING RED OFF
BATTERY MEDIUM BLINKING AMBER BLINKING AMBER OFF
BATTERY HIGH BLINKING GREEN BLINKING GREEN OFF
BATTERY CHARGED GREEN GREEN GREEN

GETTING TO KNOW YOUR PRODUCT

GETTING TO KNOW YOUR PRODUCT - Part 1
GETTING TO KNOW YOUR PRODUCT - Part 2

  1. DPI UP BUTTON
  2. LEFT CLICK BUTTON
  3. MIDDLE CLICK BUTTON
  4. RIGHT CLICK BUTTON
  5. MULTI-PURPOSE LED INDICATOR
  6. FORWARD BUTTON
  7. USB CHARGING / DATA PORT
  8. PTFE GLIDE PADS
  9. DPI DOWN BUTTON
  10. PROFILE SWITCH BUTTON
  11. INTERCHANGEABLE SIDE GRIP
  12. BACKWARD BUTTON
  13. SNIPER BUTTON
  14. POWER SWITCH
  15. OPTICAL GAMING SENSOR
  16. WIRELESS MODE SWITCH
  17. USB WIRELESS RECEIVER
  18. USB CHARGING / DATA CABLE
  19. USB CABLE ADAPTER

SETTING UP YOUR UNIT USING 2.4GHz WIRELESS

  • Turn on your computer
  • Connect the USB wireless receiver to an available USB 2.0 or 3.0 port on your PC
  • Toggle wireless mode switch to "2.4GHz" position and turn on your mouse
  • The multi-purpose LED indicator on your mouse will turn solid white when automatically connected

For the best 2.4GHz wireless performance, plug in the USB wireless receiver to a front panel USB port on your PC or connect it to the USB charging/data cable via the USB cable adapter.

SETTING UP YOUR UNIT USING BLUETOOTH

  • Turn on your Bluetooth 4.0 or higher enabled computer
  • Initiate Bluetooth pairing mode on your computer
  • Toggle wireless mode switch to "Bluetooth" position, hold PROFILE button and turn on your mouse. The multi-purpose LED indicator will start rapidly blinking blue.
  • The multi-purpose LED indicator on your mouse will turn solid blue when connected
STATUS MULTI-PURPOSE LED INDICATOR
LED #1 LED #2 LED #3
2.4GHz WIRELESS MODE WHITE WHITE WHITE
BLUETOOTH WIRELESS MODE BLUE BLUE BLUE
USB WIRED MODE DEFAULT DEFAULT DEFAULT

MULTI-PURPOSE LED INDICATOR

Various aspects of mouse operation are communicated through multi-purpose LED indicator located on the left side of the mouse.

STATUS – DPI STAGE MULTI-PURPOSE LED INDICATOR
LED #1 LED #2 LED #3
DPI STAGE #1 CYAN OFF OFF
DPI STAGE #2 CYAN CYAN OFF
DPI STAGE #3 CYAN CYAN CYAN
STATUS – SNIPER MODE MULTI-PURPOSE LED INDICATOR
LED #1 LED #2 LED #3
SNIPER MODE ENGAGED YELLOW YELLOW YELLOW
SNIPER MODE DISENGAGED DEFAULT DEFAULT DEFAULT
STATUS – ONBOARD PROFILE SELECT MULTI-PURPOSE LED INDICATOR
LED #1 LED #2 LED #3
PROFILE #1 RED OFF OFF
PROFILE #2 OFF GREEN OFF
PROFILE #3 OFF OFF BLUE

corsair.com
EMAIL: support@corsair.com
FACEBOOK: facebook.com/corsair
BLOG: blog.corsair.com
FORUM: forum.corsair.com
TWITTER: twitter.com/corsair

USA and CANADA: (888) 222-4346 | INTERNATIONAL: (510) 657-8747 | FAX: (510) 657-8748

47100 Bayside Parkway • Fremont • California • 94538 • USA
