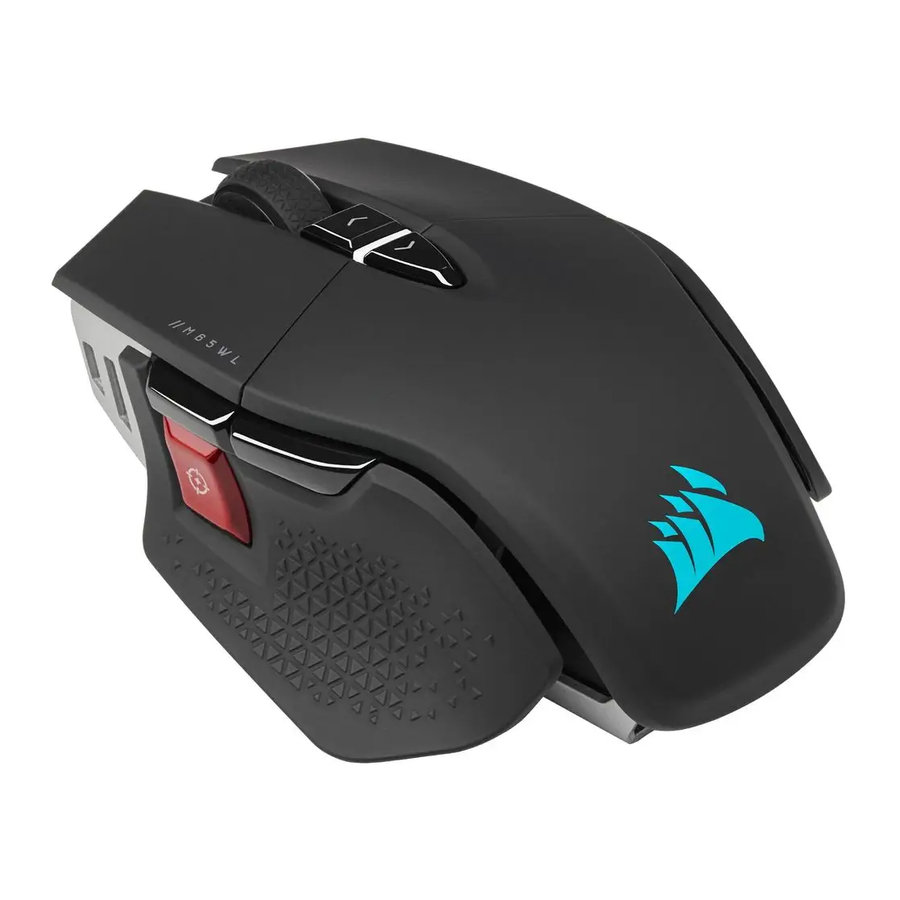

Corsair M65 RGB ULTRA - Tunable Fps Gaming Mouse Manual

SETTING UP YOUR MOUSE

Connect the USB connection cable (N) to an available USB 2.0 or better Type-A port on your Windows^® PC, Apple Mac^®, or Microsoft Xbox One^®.*

*www.corsair.com/xbox-one-support

DPI SETTINGS AND INDICATIONS

The mouse comes preloaded with common competitive DPI settings which can be selected by pressing the DPI Up (D) or DPI Down button (E) with the DPI indicator (I) LED's backlighting to reflect the current stage.

DPI STAGE STATUS	DPI INDICATOR
STAGE #1 – 400 DPI	RED
STAGE #2 – 800 DPI	WHITE
STAGE #3 – 1200 DPI	GREEN
STAGE #4 – 1600 DPI	PURPLE
STAGE #5 – 3000 DPI	CAPRI

ON-THE-FLY DPI TUNING

The mouse has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting

FUNCTION	SHORTCUT	MULTI-PURPOSE LED INDICATOR
INCREASE DPI BY 50	HOLD DPI UP BUTTON (D) AND PRESS FORWARD BUTTON (G)	BLINKING GREEN
DECREASE DPI BY 50	HOLD DPI UP BUTTON (D) AND PRESS BACK BUTTON (H)	BLINKING RED
RESET DPI STAGE	HOLD DPI UP (D) THEN BOTH FORWARD (G) AND BACK (H) BUTTONS FOR 2 SECONDS	BLINKING YELLOW

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE. If iCUE is running, then changes are saved to the software profile directly.
