Corsair SABRE RGB PRO - FPS/MOBA Gaming Mouse Manual

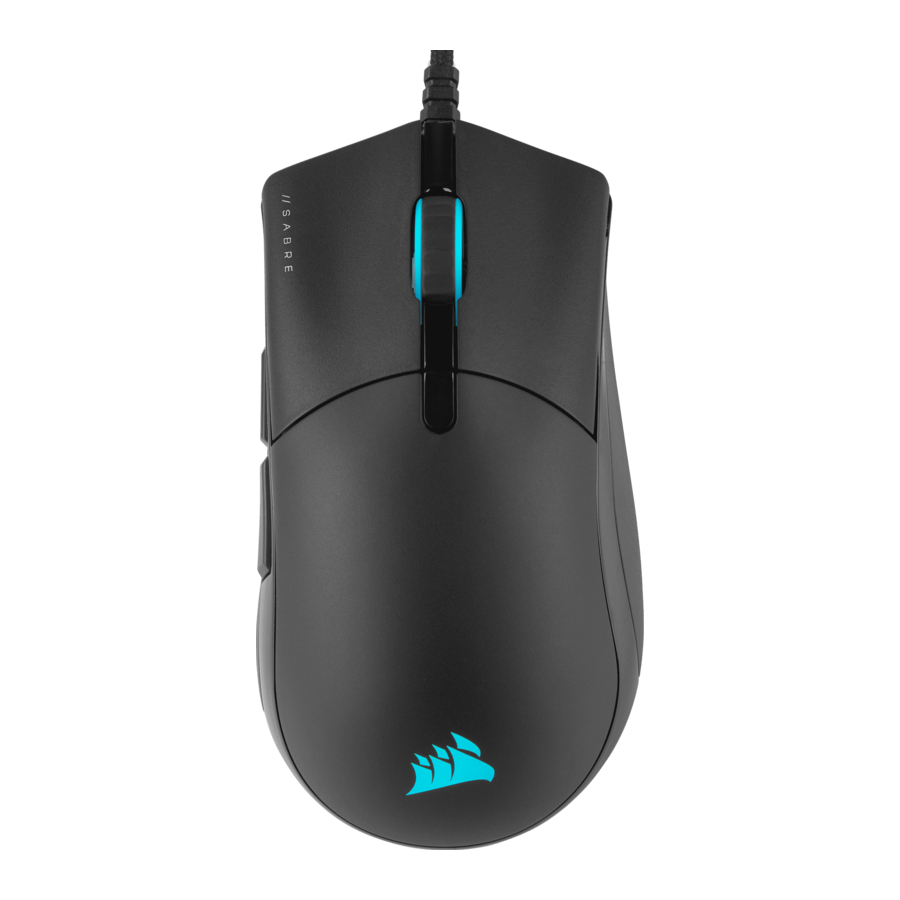

GETTING TO KNOW YOUR MOUSE

1. QUICKSTRIKE LEFT CLICK BUTTON
2. MIDDLE CLICK BUTTON / SCROLL WHEEL
3. QUICKSTRIKE RIGHT CLICK BUTTON
4. FORWARD BUTTON
5. BACK BUTTON
6. DPI CYCLE BUTTON
7. REPLACEABLE PTFE GLIDE PADS*
8. OPTICAL GAMING SENSOR
9. DPI INDICATORS
10. USB CONNECTION CABLE
    *Replacements are available at www.corsair.com.

SETTING UP YOUR MOUSE

Connect the USB connection cable (J) to an available USB 2.0 or better Type-A port on your Windows^® PC, Apple Mac^®, or Microsoft Xbox One^®.*

*www.corsair.com/xbox-one-support

DPI SETTINGS AND INDICATION

The mouse comes preloaded with common competitive DPI settings which can be cycled through by pressing the DPI cycle button (F) with the DPI indicator (I) LED's backlighting to reflect the current stage.

DPI STAGE	DPI SETTING	DPI INDICATOR
STAGE #1	400
STAGE #2	800
STAGE #3	1200
STAGE #4	1600
STAGE #5	3200

ON-THE-FLY DPI TUNING

The mouse also has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software so you can jump right into the action while you find the perfect sensitivity setting.

FUNCTION	SHORTCUT	DPI INDICATOR
INCREASE DPI BY 50	HOLD DPI CYCLE BUTTON (F) AND PRESS FORWARD BUTTON (D)	BLINKS GREEN ONCE
DECREASE DPI BY 50	HOLD DPI CYCLE BUTTON (F) AND PRESS BACK BUTTON (E)	BLINKS RED ONCE
RESET DPI STRAGE	HOLD DPI CYCLE BUTTON (F) THEN BOTH FORWARD (D) AND BACK BUTTONS (E) FOR 2 SECONDS	BLINKS CURRENT DPI INDICATOR YELLOW THREE TIMES

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE. If iCUE is running, then changes are saved to the software profile directly.

SOFTWARE MODE

When iCUE is running the mouse operates in software mode and is controlled by iCUE where RGB backlighting color and effects can be programmed.

Install iCUE on a Windows PC or Apple Mac to connect all of your CORSAIR iCUE compatible products together in a single interface, giving you complete control of everything from key remaps to DPI settings. Download iCUE from www.corsair.com/downloads.
