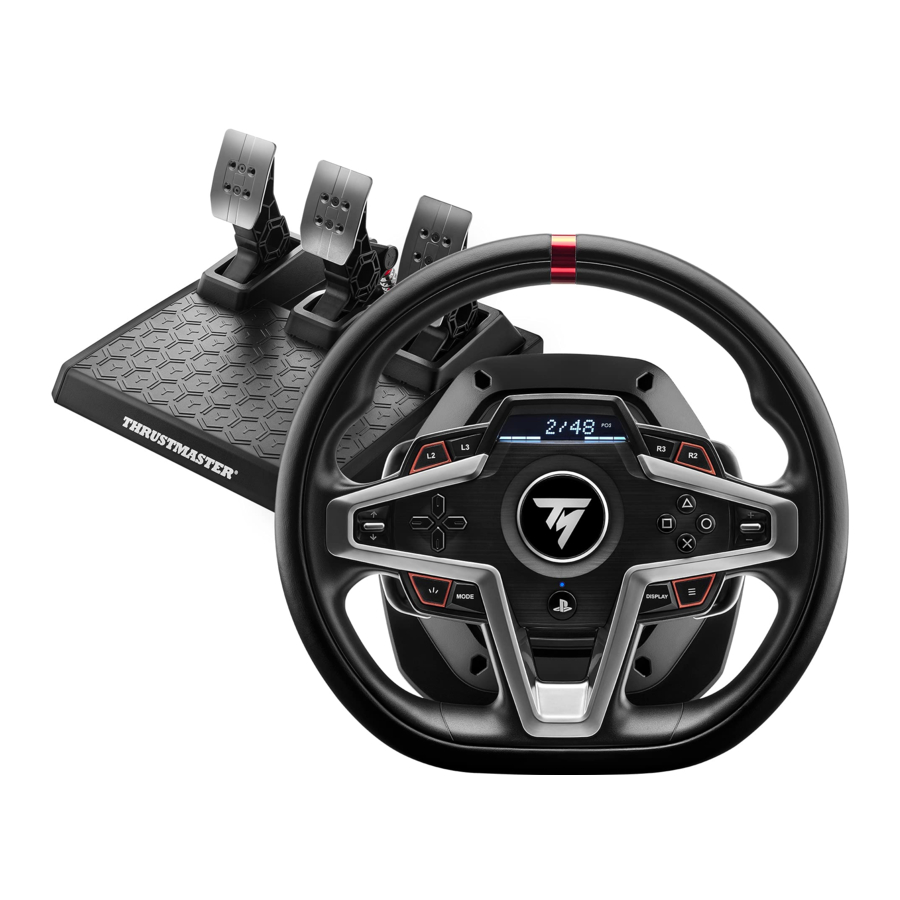

Thrustmaster T248 Manual

TECHNICAL FEATURES

Technical Features Overview - Part 1

  1. T248 base
  2. Wheel rim
  3. T-RDD (Thrustmaster Race Dash Display) screen
  4. Encoder selector switch and encoder push function
  5. + and - encoder selector switch
  6. 2 magnetic paddle shifters (Up and Down)
  7. Directional buttons
  8. VIEW button on Xbox consoles
  9. MODE button
  10. Xbox button
  11. DISPLAY button
  12. MENU button on Xbox consoles
  13. Attachment system
  14. Metal fastening screw
    1. Power cable (EU/US or UK...) and
    2. power adapter
    1. USB-C cable
    2. USB-A cable
  15. Quick release USB-C cable
    1. male to
    2. female

Technical Features Overview - Part 2

  1. Large threaded hole (for attachment system and fastening screw)
  2. Threaded holes for attachment to a racing cockpit (not included)
  3. Hook-and-loop fastener cable holder
  4. Power adapter connector
  5. Racing wheel's USB-C connector
  6. Mini-DIN connector for Thrustmaster shifter, handbrake or hub (sold separately)
  7. RJ12 connector for pedal set

ATTACHING THE RACING WHEEL

Attaching the racing wheel to a table or a desktop

Start by connecting on the underside of the wheel:

  • the power adapter (21);
  • the quick release USB-C cable (17a) to the USB-C connector (22);
  • the T3PM pedal set (24).

Make sure to follow the paths for the different cables, and attach the cables using the hook-and-loop fastener cable holder (20).

  1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
  2. Insert the fastening screw (14) in the attachment system (13), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (18) located beneath the racing wheel, until the wheel is perfectly stable.
    Attaching the racing wheel to a table - Step 1


Never tighten the screw alone without the attachment system in place! (This could damage the racing wheel.)

ATTACHMENT/REMOVAL DIRECTION
To tighten:
Turn the screw counterclockwise
Attaching the racing wheel to a table - Step 1
To release:
Turn the screw clockwise
Attaching the racing wheel to a table - Step 1

Attaching the racing wheel to a racing cockpit

(not included)

  1. Place the base of the racing wheel on the cockpit's shelf.
  2. Screw two M6 screws (not included) into the cockpit's shelf and into the two threaded holes on the underside of the racing wheel (19).

    The length of the two M6 screws must not exceed the thickness of the shelf by more than 0.47 inches/12 mm; longer screws could cause damage to internal components located in the racing wheel's base.
  3. If necessary, you can also screw the standard attachment system (13, 14) into the large threaded hole (18).

The T248 racing wheel's setup diagrams for cockpits and other supports are available at https://support.thrustmaster.com: click Racing Wheels/T248, and then Template - Cockpit Setup.

INSTALLATION

AUTOMATIC CALIBRATION OF THE WHEEL

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel's USB connector to the Xbox console or to the PC.
During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

Never touch the racing wheel during the self-calibration phase!
(This could result in improper calibration and/or personal injuries.)

AUTOMATIC CALIBRATION OF THE PEDAL SET

Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the system or during gameplay (this could result in improper calibration).
Always connect the pedal set before connecting the racing wheel to the system.
Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

Never press the pedals during the racing wheel's self-calibration phase or while a game is loading!
(This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:
Power off your console (or PC) and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console (or PC) and your game.

INSTALLATION ON XBOX CONSOLES

Installation On Xbox Consoles

  1. Plug the power cable and power adapter into an electrical outlet.
  2. Connect the USB-A cable (17b) to a USB-A port on the Xbox console.
    Once the console is powered on, your racing wheel will self-calibrate automatically.

You are now ready to play!
Please note:

  • The list of games compatible with the Xbox console and the T248 racing wheel is available here: https://support.thrustmaster.com (in the Racing Wheels/T248/Games Settings section). This list is updated regularly.

INSTALLATION ON PC

Installation on PC

  1. Visit https://support.thrustmaster.com to download the drivers and Force Feedback software for PC. Click Racing Wheels/T248/Drivers.
  2. Plug the power cable and power adapter into an electrical outlet.
  3. Connect the USB-A cable (17b) to a USB-A port on your PC.

You are now ready to play!
Please note:

  • In the Control Panel and in games, the racing wheel is recognized under the name Thrustmaster Advanced Racer.

UPDATING THE RACING WHEEL'S FIRMWARE

Visit https://support.thrustmaster.com.
Click Racing Wheels/T248/Firmware, and follow the instructions.

MAPPING FOR XBOX CONSOLES

Mapping for Xbox Consoles
Please note:

  • The screen displaying telemetry information (T-RDD) is currently not compatible on Xbox consoles (it is only compatible on PC).
  • Some features (encoders, number of action buttons) are limited by the console protocol.
  • On Xbox, the LSB and RSB buttons on the racing wheel are only functional in some upcoming games (the list of games with this feature is updated regularly).

MAPPING FOR PC

Mapping for PC

USING THE E1/E2/E3/E4 ENCODERS
You can select the active encoder by pushing the encoder selector switch (4) up. The active encoder is displayed on the screen: E1, E2, E3, E4 in succession, and then E1... and so on again.
When the encoder (E1, E2, E3 or E4) is selected, the associated functions are as follows:

  • Push (P) by pushing the encoder selector switch (4) down.
  • + by pushing the encoder selector switch on the right-hand side (5) up.
  • - by pushing the encoder selector switch on the right-hand side (5) down.

The corresponding action is displayed on the screen.
Please note:

  • The E1, E2, E3 and E4 encoders function in most games.
  • The screen displaying telemetry information functions in games compatible with the Thrustmaster SDK. The list of compatible games is available here: https://support.thrustmaster.com (in the Racing Wheels/T248/Games Settings section). This list is updated regularly.

MODE BUTTON

DISPLAYING INFORMATION ON THE RACING WHEEL, AND CONFIGURING THE RACING WHEEL AND PEDAL SET
Press the MODE button (9) to enter the MODE menu.
Only the first two segments are displayed when you are in this menu.

Use the directional buttons (7) in this menu as follows:

Navigation Screen Information/Options

7 levels

2 options
XBOX/PC
Select your system: Xbox console or PC
  • Selection of Xbox console (by default)
  • Selection of PC system
Note: To validate your system choice, press the MODE button (9). Selection will be saved when EXIT appears on screen.

3 displays
ABOUT
General information
  • Firmware version of racing wheel base
  • Name of device connected to mini-DIN connector (23)
  • Type of pedal set connected to RJ12 connector (24)

3 options
FFB
Select the Force Feedback profile
(see FFB PROFILE DIAGRAM section)
  • FFB 1
  • FFB 2 (by default)
  • FFB 3

6 options
ROT°
Select the angle of rotation
(only for games in which the angle of rotation is not automatic)
  • 270°
  • 360°
  • 540°
  • 720°
  • 900°
  • AUTO = Automatic (by default)

2 options
PEDAL
Select the pedal set configuration
  • FLOOR: floor position (by default)
  • INV.: suspended position
    (the accelerator and clutch pedals are reversed)
1 display TEMP
Motor temperature
Racing wheel's motor temperature displayed in real time

1 option
RESET
Reset the racing wheel to default mode.
  • N: No
  • Y: Yes
Select Y, then press the MODE button (9). The racing wheel is reset when EXIT appears on screen.

FFB PROFILE DIAGRAM

FFB Profile Diagram

FFB 1
The FFB 1 effect provides linear Force Feedback. The force that you feel is 100% proportional to the force requested by the game.

FFB 2 and FFB 3
The FFB 2 and FFB 3 effects boost the Force Feedback in order to accentuate the force that you feel in relation to the force requested by the game.
Please note:

  • Validate your choices by pressing the MODE button (9): EXIT is displayed before returning to your default screen.
  • The directional buttons (7) are disabled in games and in the console's interface when the MODE button is enabled.

DISPLAY BUTTON

CONFIGURING THE DISPLAY OF TELEMETRY SETTINGS
(in games for PC compatible with the display)
Please note:

  • The list of games for PC compatible with the T-RDD (Thrustmaster Race Dash Display) screen is available here: https://support.thrustmaster.com (in the Racing Wheels/T248/Games Settings section). This list is updated regularly.
  • The DISPLAY button only works in these games.
  • The DISPLAY button is currently not compatible on Xbox consoles.

Press the DISPLAY button (11) to enter the DISPLAY menu.
Only the last two segments are displayed when you are in this menu.

Use the directional buttons (7) in this menu as follows:

Navigation Screen Information/Options

5 levels
No Shifter
No SPEED

Speed

5 options for display across the segments
RPM

RPM and choice of view across the 9 segments
  • REV >>: left to right
  • REV <<: right to left
  • REV ><: outside toward center
  • REV <>: center toward outside
  • REV --: no display on the segments

2 options
POS

Position
  • DRI: position in the race
  • LAP: number of laps

3 options
TIME

Time
  • PBL: best personal lap time
  • C L: current lap time
  • L L: last lap time

Please note:

  • Validate your choices by pressing the DISPLAY button (11).
  • The directional buttons (7) are disabled in games and in the console's interface when the DISPLAY button is enabled.


Before using this product, please read this manual carefully and save it for later reference.


Electrical shock

  • Keep the product in a dry location and do not expose it to dust or sunlight.
  • Do not twist or pull on the connectors and cables.
  • Do not spill any liquid on the product or its connectors.
  • Do not short-circuit the product.
  • Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
  • Do not use a power supply cable other than the one provided with your racing wheel.
  • Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
  • Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel's base.
  • Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
  • Only use attachment systems/accessories specified by the manufacturer.
  • If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
  • If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
  • The electrical outlet must be located near the equipment and must be easily accessible.
    warning Use only the power supply listed in the user instructions.

Information for power supply adapter

Information published Value Unit
Manufacturer's name or trademark, commercial registration number and address GUILLEMOT CORPORATION S.A.
414 196 758 Rennes
Place du Granier
BP 97143
35571 Chantepie Cedex
France
Model identifier A481-1852590D
Input voltage 100 - 240 V
Input AC frequency 50 - 60 Hz
Output voltage 18.5 V DC
Output current 2.6 A
Output power 47.9 W
Average active efficiency 87.8 %
Efficiency at low load (10%) 87.8 %
No-load power consumption 0.10 W

warning Air vents
Make sure not to block any of the air vents on the racing wheel's base. For optimal ventilation, make sure to do the following:

  • Position the wheel's base at least 10 cm away from any wall surfaces.
  • Do not place the base in any tight spaces.
  • Do not cover the base.
  • Do not let any dust build up on the air vents.

shock hazard For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.
THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.


Injuries due to Force Feedback and repeated movements
Playing with a Force Feedback racing wheel may cause muscle or joint pain. To avoid any problems:

  • Avoid lengthy gaming periods.
  • Take 10 to 15-minute breaks after each hour of play.
  • If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.
  • If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
  • Keep out of children's reach.
  • During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
  • During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
  • During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
  • Make sure that the racing wheel's base is properly secured, as per this manual's instructions.

Product to be handled only by users 14 years of age or older

HEAVY PRODUCT
Be careful not to drop the product on yourself or on anyone else!


Pedal set pinch hazard when playing

  • Keep the pedal set out of children's reach.
  • During gameplay, never place your fingers on or anywhere near the sides of the pedals.
  • During gameplay, never place your fingers on or anywhere near the pedal's rear base.
  • During gameplay, never place your fingers on or anywhere near the pedal's front base.


Pedal set pinch hazard when not playing

  • Store the pedal set in a safe place, and keep it out of children's reach.

T3PM PEDAL SET

TECHNICAL FEATURES

T3PM Pedal Set - Technical Features Overview

  1. Pedal set
  2. Additional hard spring (black)
  3. 2.5 mm Allen key
  4. Spring retaining rod
  5. Upper retaining head with washer
  6. Elastomer cushioning ring (white – Shore 70)
  7. Upper plastic spacer (red)
  8. Soft spring (silver – installed by default)
  9. Lower plastic spacer (red)

AUTOMATIC CALIBRATION OF THE PEDAL SET

  • Never connect the pedal set to the racing wheel's base (or disconnect it from the base) when it is connected to the Xbox console, or during gameplay (this could result in improper calibration). Always connect the pedal set before connecting the racing wheel to the console.
  • Once the racing wheel's calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.
  • Never press the pedals during the racing wheel's self-calibration phase or while a game is loading! This could result in improper calibration.

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:
Power off your console and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console and your game.

ATTACHING THE PEDAL SET TO A SUPPORT OR COCKPIT

The pedal set can be attached to a variety of different compatible supports (sold separately) using the five M6-type threaded holes located underneath the base. To do so, screw at least two M6 screws (not included) through the support shelf, and into the threaded holes on the underside of the pedal set's base.

The length of the M6 screws must not exceed the thickness of your support by more than 0.47 inches/12 mm, so as not to risk damaging the pedal set's internal components.
Attaching the Pedal Set to a Support or Cockpit
The pedal set's setup diagrams for cockpits and other supports are available at https://support.thrustmaster.com: click Racing Wheels/T3PM, and then Template - Cockpit setup.

ADJUSTING THE PEDAL SET

Each of the three pedals includes:
Adjusting the Pedal Set

  • pedal arm(10) with two perforations.
  • plastic head support(11) (placed between the head and the arm) with four perforations.
  • metal head(12) with multiple perforations (nine for the accelerator – six for the brake – six for the clutch).

caution ATTENTION: To avoid any calibration problems, be sure to always disconnect your wheel's USB cable from the console or PC before making any adjustments to your pedal set.

Adjusting the HEIGHT of the gas pedal

  • Using the included 2.5 mm Allen key (3), unscrew the two screws holding the metal head (12) and its support (11) in place.
  • Select your preferred height position, then replace and re-tighten the screws so that the metal head (12) and its support (11) are held firmly in place.
    Adjusting the HEIGHT of the gas pedal

Adjusting the SPACING of the three pedals

  • Using the included 2.5 mm Allen key (3), unscrew the two screws holding the metal head (12) and its support (11) in place.
  • Select your preferred position (to the left, centered, or to the right), then replace and re-tighten the screws so that the metal head (12) and its support (11) are held firmly in place.

Examples illustrating the brake pedal:
Adjusting the SPACING of the three pedals

Number of possible spacing positions per pedal:

  • Three for gas pedal
  • Three for brake pedal
  • Three for clutch pedal

Adjusting the INCLINATION of the pedals

  • Using the included 2.5 mm Allen key (3), unscrew the two screws holding the metal head (12) and its support (11) in place.
  • Turn the plastic head support (11) 180°, then replace and re-tighten the screws so that the metal head (12) and its support (11) are held firmly in place.

Examples illustrating the gas pedal:
Adjusting the INCLINATION of the pedals

Number of possible inclination positions per pedal:

  • Two for gas pedal
  • Two for brake pedal
  • Two for clutch pedal

INCLUDED SET OF BRAKE SPRINGS

4 possible configurations and settings for the brake pressure force
This mod lets you experience a different feel and resistance when braking.
You can choose to install it or not, according to your preferences.

Brake resistance Soft Medium
(by default)
Hard Very hard
Recommended use Desk Desk Pedal set support Cockpit
Soft silver spring (8) x x
White elastomer cushioning ring (6) x x
Hard black spring (2) x x
  1. Pull hard on the lower plastic spacer (9) to compress the spring and remove the spring retaining rod (4) from its location.
    Method 1:

    Method 2:
  2. Reposition the different elements on the spring retaining rod (4).
    Start with the lower plastic spacer (9), your choice of spring (2) or (8), and then the upper plastic spacer (7).
  3. After your selected configuration, install the elastomer cushioning ring (6).
  4. Adjust the upper retaining head with washer (5) and position it in its location.
  5. Strongly compress the spring in order to place the spring retaining rod (4) in its location

A video showing how to change the spring is available at https://support.thrustmaster.com: click Racing Wheels/T3PM.


Before using this product, please read this manual carefully and save it for later reference.
shock hazard For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.
THRUSTMASTER ® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.


Pedal set pinch hazard when playing

  • Keep the pedal set out of children's reach.
  • During gameplay, never place your fingers on or anywhere near the sides of the pedals.
  • During gameplay, never place your fingers on or anywhere near the pedal's rear base.
  • During gameplay, never place your fingers on or anywhere near the pedal's front base.

TECHNICAL SUPPORT
https://support.thrustmaster.com
UK: 020 3147 4889
US: (866) 889-5036
Canada: 866-889-2181

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Thrustmaster T248 Manual

Advertisement

Need help?

Need help?

Do you have a question about the T248 and is the answer not in the manual?

Questions and answers

Table of Contents
