EcoFlow RIVER 3 Plus User Manual

EcoFlow RIVER 3 Plus User Manual

Power station
Hide thumbs Also See for RIVER 3 Plus:
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
About This Manual
Overview
Appearance
Management
FAQ
EcoFlow App
About This Manual
This user manual is applicable to the following products: RIVER 3 Plus,
The terms "RIVER 3 Plus" and "RIVER 3 Plus (270)" in this manual shall
refer to EcoFlow RIVER series products.
Please note that this manual may be updated without prior notice. If you are
reading this manual in PDF format, please note that you can access it online
at
EcoFlow Support
for a better experience and the latest updates.
The illustrations in this manual use the US version of the product as
examples and references. Please refer to the actual product received.
The availability of certain accessories and features described in this manual
may vary depending on your country or region.
Overview

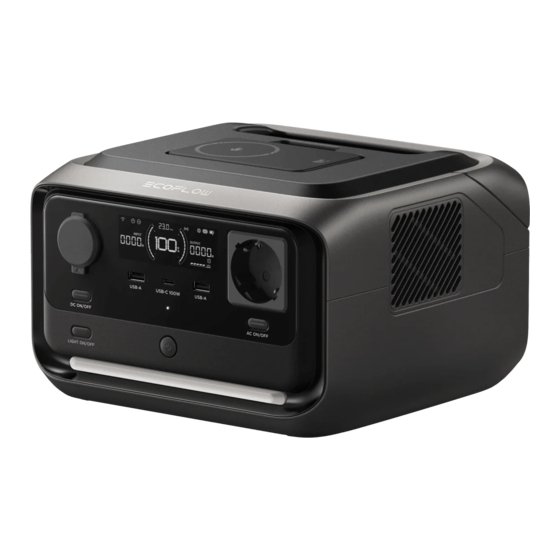

RIVER 3 Plus and RIVER 3 Plus (270) (hereinafter each referred to as "the
power station") are power stations with LiFePO₄ battery. They have multiple
outputs and charging options to meet your actual needs.
Appearance
After-sales
Community
Policy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIVER 3 Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EcoFlow RIVER 3 Plus

Summary of Contents for EcoFlow RIVER 3 Plus

  • Page 1: Table Of Contents

    This user manual is applicable to the following products: RIVER 3 Plus, RIVER 3 Plus (270). Charge Your Power Station The terms "RIVER 3 Plus" and "RIVER 3 Plus (270)" in this manual shall Management refer to EcoFlow RIVER series products.
  • Page 2 DC Output Short press once to turn on/off the DC output port. Button DC Output Port Powers up on-board appliances with a rated power ＜ (Cigarette 126W. Lighter) Displays the real-time battery, input power, output power Display Screen and other operating status. Supports X-Boost feature and powers up devices with a AC Output rated power ＜600W.

  • Page 3: Display Screen

    The types and numbers of AC sockets vary by country and region. Please refer to the actual product. Extra Battery Port Connects the power station to an EcoFlow Smart (With Protective Extra Battery to expand the battery capacity. Cover) 16 Heat Vent Dissipates the internal heat.
  • Page 4 On: At least one pending scheduled task is Scheduled Task configured in the EcoFlow app. On: Output Port Memory is enabled in the EcoFlow app. When the power station is turned off, undergoes a firmware upgrade, or reaches the discharging limit, it stores the current output state before it powers down.
  • Page 5 Flashing: Port malfunction. On: The port is connected to a USB device. 20 USB-C Output Flashing: Port malfunction. On: EcoFlow Smart Extra Battery is connected via the 21 Extra Battery extra battery port. Percentage: Displays current battery level. 22 Battery Level Lightning Icon: The power station is charging.

  • Page 6: Get Started

    1 min before you turn on the product again. For error codes not covered in the table, view detailed error messages and solutions in EcoFlow app. If the problem persists, stop using the product immediately (do not attempt to charge or discharge it) and consult EcoFlow customer service.

  • Page 7: Power Your Appliances

    Tip: When the power station is charging, it can't be turned off by long pressing the main power button unless the charging cable is unplugged first. Power Your Appliances Via USB Output Port Connect your devices directly to the USB ports on the power station. Via AC Output Socket Press the AC output button...

  • Page 8: Charge Your Power Station

    AC timeout interval to never in the EcoFlow app. Additionally, regularly check the power station's battery level. Via DC Output Port (Cigarette Lighter)
  • Page 9 The solar charging cable (solar to XT60i charging cable) and the solar panel are not included in the package. When using an EcoFlow solar panel to charge the product, connect them according to the instructions in the user manual. Before connecting the solar panel, ensure that the output voltage of the panel...

  • Page 10: Download Ecoflow App

    Management Download EcoFlow App EcoFlow offers a companion app for device management. With this mobile application, you can: Enjoy all-in-one control of your EcoFlow devices from anywhere. Monitor power consumption details seamlessly with real-time updates.

  • Page 11: Control Via Phone

    Power on & Retry: Press the main power button to turn on the power station, and start searching again. Control via Phone With the EcoFlow app, you can manage all your EcoFlow binding devices on your phone. The power station supports Wi-Fi and Bluetooth connections, adapting to varying network conditions to ensure convenient access to device settings.
  • Page 12 To extend the power station's runtime, you can install extra battery capacity. The power station supports connecting up to 1 EcoFlow RIVER 3 Plus Smart Extra Battery to expand capacity. Note: Turn off the power station and the smart extra battery first before you connect or remove the extra battery.

  • Page 13: X-Boost: Powering High-Wattage Appliances

    X-Boost is enabled by default. Connect any high-wattage appliance to an AC output socket on the power station to use this feature. You can enable/disable X-Boost in the EcoFlow app. X-Boost is unavailable when the power station is in bypass mode*.

  • Page 14: Storage And Maintenance

    UPS settings. How to establish communication? 1. Visit the website (https://www.ecoflow.com/support/download/) to download the Power Manager installation package for your computer or NAS operating system. 2. Install the software on your computer or NAS.

  • Page 15: Safety Instructions And Compliances

    EcoFlow is not liable for any loss caused by the user's failure to use the product in compliance with the product document. In compliance with laws and regulations, EcoFlow reserves the right to the final interpretation of this document and all documents related to the product.
  • Page 16 To ensure continuous power supply for critical uses, such as storing medicines, vaccines, the perishables, or other valuable items in a refrigerator, set the power station's AC timeout interval to never in the EcoFlow app. Additionally, regularly check the power station's battery level. Medical Equipment...
  • Page 17 For your safety, EcoFlow provides a power cord with an equipment grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 18: Regulatory Compliance

    directly into a battery recycling box. Instead, contact a professional battery recycling company for proper handling. Regulatory Compliance FCC Compliance Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.

  • Page 19: Appendix

    Hereby, EcoFlow Inc. declares that the radio equipment type portable power station is in compliance with Directives 2014/35/EU, 2014/30/EU, 2014/53/EU, 2011/65/EU(RoHS), (EU) 2015/863(RoHS). The full text of the EU Declaration of Conformity is available at the following Internet address: http://www.ecoflow.com/eu/eu-compliance This marking indicates that this product should not be disposed of with other household waste within the EU.

  • Page 20: Specifications

    1. RIVER 3 Plus/RIVER 3 Plus (270) 2. AC Charging Cable 3. Car Charging Cable 4. USB-B to USB-A UPS Communication Cable 5. Manuals & Warranty card Specifications General RIVER 3 Plus: EF-RV-H02-1 Model RIVER 3 Plus (270): EF-RV-H03-1 Net Weight Approx.
  • Page 21 Car Input 11-55V⎓8A Max, 220W Max Battery Info RIVER 3 Plus: 286Wh 22.4V⎓12.8Ah Rated Capacity RIVER 3 Plus (270): 268Wh 22.4V⎓12Ah Cell Chemistry LFP (LiFePO₄) The battery maintains 80%+ SoH (State of Health) after 3000 Cycle Life cycles at 0.5C/0.5C at 25°C (77°F)
  • Page 22 Maximum Output Power • CN: ≤20dBm • US: 0.1076W Bluetooth • CA: 0.1076W • JP: 3.67mW • EU: 9.50dBm • UK: 9.50dBm • AU: 9.50dBm • KR: 0.106 mW/MHz Other Operating ≤2000 m Altitude Copyright © 2024 EcoFlow. All Rights Reserved.
