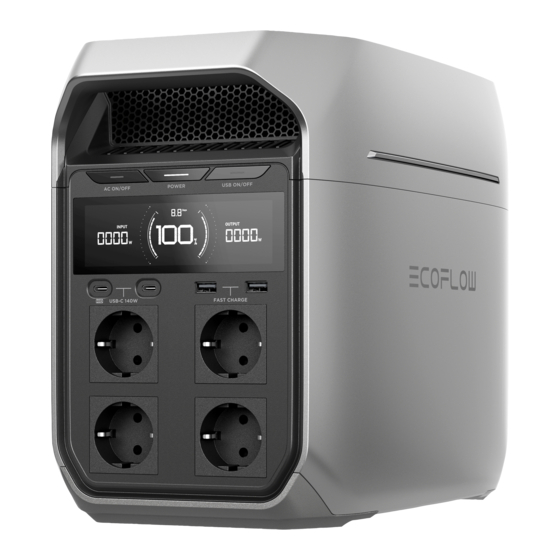

EcoFlow DELTA 3 Manual

EcoFlow DELTA 3 / DELTA 3 Plus
IMPORTANT SAFETY
INSTRUCTIONS
DISCLAIMER
Please read the product document and ensure that you understand it
fully before using the product. After reading this document, keep it for
future reference. Improper use of this product may cause serious injury
to yourself or others, or cause product damage and property loss. Once
you use this product, it is deemed that you understand, approve and
accept all the terms and content in this document. EcoFlow is not liable
for any loss caused by the user's failure to use the product in compliance
with the product document.
In compliance with laws and regulations, EcoFlow reserves the right to
the final interpretation of this document and all documents related to
the product. This document is subject to changes (updates, revisions, or
termination) without prior notice. Please visit EcoFlow's official website
to obtain the latest product information: https://www.ecoflow.com
OPERATION
1. Do not disassemble, repair, or modify this product by yourself. For
any maintenance or service, please contact EcoFlow Customer
Service.
2. Always disconnect the product from all external power sources
before attempting any service or maintenance.
3. To reduce risk of damage to the electric plug and cord, pull the
plug rather than the cord when disconnecting the product.
4. Do not pierce the product with sharp objects.
5. Do not put fingers or hands into the product.
6. Do not insert wires or other metal objects into the product to
prevent short circuits.
7. Do not block or restrict the heat dissipation system of the product
during operation.
8. Do not use any unofficial or unrecommended components or
accessories. For any replacements, please contact EcoFlow for
further assistance.
9. Do not operate this product with a damaged cord or plug, or a
damaged output cable.
10. Do not stack any heavy objects on the product.
11. Place the product on a stable and flat surface. Avoid damage to
the device or personal injury due to the product falling or tipping
over.
12. Use a soft, dry cloth to wipe and clean the product.
13. AC Timeout Tip: The AC output port of the power station will
automatically turn off if the port is idle for a certain period. When
the power station is connected to intermittent loads like
refrigerators or air conditioners, this feature may be triggered. To
ensure continuous power supply for critical uses, such as storing
medicines, vaccines, the perishables, or other valuable items in a
refrigerator, set the power station's AC timeout interval to never
in the EcoFlow app. Additionally, regularly check the power
station's battery level.
14. Medical Equipment Limit: The product is not intended for
powering life-sustaining medical equipment, including but not
limited to medical-grade ventilators (hospital-grade CPAP:
Continuous Positive Airway Pressure) or artificial lungs (ECMO:
Extracorporeal Membrane Oxygenation). If you plan to use it for
other medical equipment, consult with the equipment's
manufacturer first to ensure there are no restrictions on using an
external power source with their equipment.
15. Medical Equipment Interference: When in use, power supply
products will generate electromagnetic fields, which are likely to
affect the normal operation of medical implants or personal
medical equipment such as pacemakers, cochlear implants,
hearing aids, defibrillators, etc. If these types of medical
equipment are being used, please contact the manufacturer to
inquire about any restrictions on the use of such equipment.
These measures are fundamental to ensure a safe distance
between the medical implants (for example, pacemakers, cochlear
implants, hearing aids, defibrillators, etc.) and this product while
in use.
16. The plug of the charging cable included in the package is a
disconnecting device, and the wall outlet to which it is connected
must be easily accessible and well grounded.
17. Electrical appliances connected to this product must comply with
local certification requirements, and Type-C ports are only
permitted for appliances with fireproof enclosures.
18. Risk of Electric Shock: Never use the product to supply power
tools to cut or access live parts or live wirings, or materials that
may contain live parts or live wirings inside, such as building
walls, etc.
19. Use in Repair Facility: During use in a repair facility like a vehicle
repair center, workshop, or any other place where repairs are
conducted, do not place the product on the floor, or at a height
less than 457 mm (18 inches) above the floor.
20. GROUNDING INSTRUCTIONS: This product must be grounded. If
ENGLISH
it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric
shock. For your safety, EcoFlow provides a cord with an
equipment grounding conductor and a grounding plug. The plug
must be plugged into an outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
21. WARNING – Improper connection of the equipment grounding
conductor can result in a risk of electric shock. If you encounter
the following situations, consult a qualified electrician instead of
modifying the plug provided with the product:
- You are unsure whether the product is properly grounded;
- You find that the plug provided with the product does not fit the
outlet.
STORAGE
22. Follow the environment temperature requirements specified in
the product specification to use or store the product. Avoid
degradation or damage to the product, or risks to personal safety
due to excessively high or low temperatures.
23. Do not use the product near a heat source, such as a fire source or
a heating furnace.
24. Do not get the product wet or immerse it in any liquid. When
using the product in wet environments like rainy areas or places
near water, protect it with a waterproof bag.
25. Do not use the product in an environment with strong static
electricity or magnetic fields.
26. Keep the product out of reach of children and pets. If the product
is to be used near children, they should be closely supervised.
27. Keep the product away from fumes, smoke, steam, and dust.
28. Store the product in a tidy, dry, and well-ventilated place.
29. Do not carry the product onto a plane.
30. Do not subject the product to severe impacts, vibrations, or drops.
IN CASE OF EMERGENCY
31. In case of emergency, take precautions against electric shock
before touching the product, such as wearing insulating gloves.
32. If the product gets wet, stop using it immediately and refrain from
further operation or powering it on. Place the product in a secure,
waterproof, and well-ventilated area, then contact EcoFlow
Customer Service for assistance.
33. If the product falls into water, place it in a secure, waterproof, and
well-ventilated area, and keep it away from contact until it is
completely dry. The dried product should not be used again and
must be properly disposed of according to local laws and
regulations.
34. If the product catches fire, we recommend that you use the fire
extinguishers in the following order: water or water mist, sand,
fire blanket, dry powder, and finally a carbon dioxide fire
extinguisher.
35. If the product is overturned and severely damaged, wear
insulating gloves to turn it off, and then place the product in an
open area far from flammable materials and people., and dispose
of it according to local laws and regulations.
RECYCLING AND DISPOSAL
36. The product with severe damage, malfunction, or depleted
battery life should be properly disposed of or recycled.
37. The product contains batteries. Please dispose of the product
following local laws and regulations for battery disposal and
recycling. Do not dispose of it with household waste to avoid
environmental pollution and safety hazards.
38. If possible, ensure the battery is completely discharged (to 0%
capacity) before disposing of the product. If not, refrain from
placing the battery directly into a battery recycling box. Instead,
contact a professional battery recycling company for proper
handling.
PARAMETERS AND SPECIFICATIONS
EcoFlow DELTA 3
Model
Net. Weight
Dimensions
(W x D x H)
General
EF-DL-H10-3
Approx. 12.5 kg (27.6 lbs)
Approx. 202 × 397.6 × 283.6 mm
(8.0 × 15.7 × 11.2 in.)
V1.1
｜ 1
