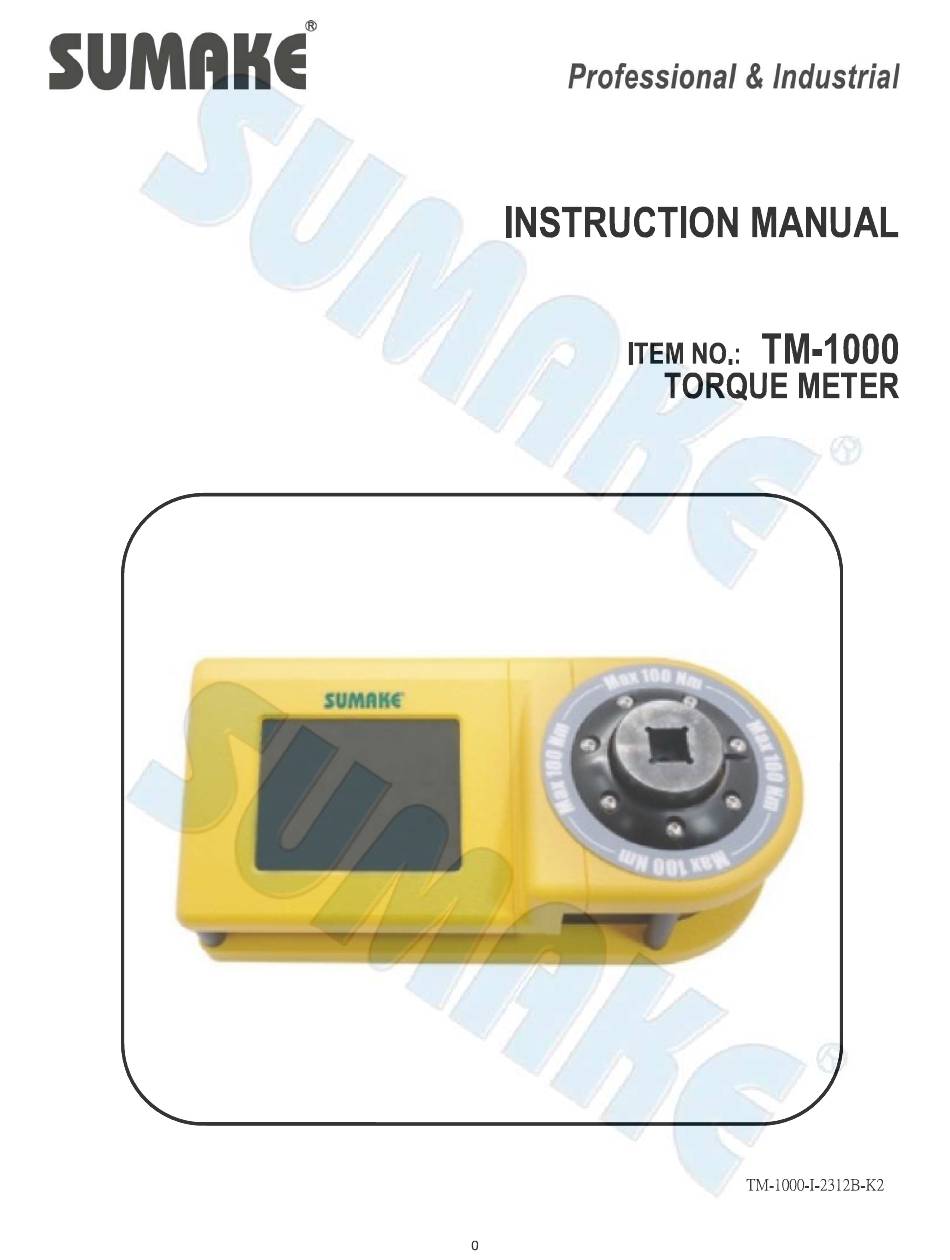

INSTRUCTION MANUAL
TM-1000
ITEM NO.:
TORQUE METER
TM-1000-I-2312B-K2
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Kilews TM-1000

Summary of Contents for Kilews TM-1000

  • Page 1 INSTRUCTION MANUAL TM-1000 ITEM NO.: TORQUE METER TM-1000-I-2312B-K2...

  • Page 2: Table Of Contents

    TableofContents Safety Specifications Component Identification Glossary of Terms Display Features and Settings 6-10 Display Screen Main Menu Settings Editing Profiles Settings Lock Measuring Torque 11-12 Collecting Torque Data Using Quick Run Using Measuring Mode Exporting Data From Measure Mode Rundown Joints Troubleshooting Guide...

  • Page 3: Safety

    Mounting The TM-1000 Torque Tester is capable of measuring high torque values. The tester must be mounted firmly to a solid surface so that its base can react the torque that is applied to the input shaft of the tester without movement.

  • Page 4: Specifications

    Specifications TM-1000 Features The TM-1000 torque tester offers an unparalleled number of features and provides intuitive menu selection through the use of an easy to operate touch screen interface. The TM-1000 provides unsurpassed accuracy for testing torque wrenches, screwdrivers and other torque-controlled power tools.

  • Page 5: Component Identification

    Component Identification WARNING !

  • Page 6: Glossary Of Terms

    Glossary of Terms Profile: A profile allows the user to quickly select a predetermined testing strategy. The DRTQ series torque tester allows for up to 8 different profiles to be preset. Quick Run: The mode for gaining quick access to the torque measuring capability.

  • Page 7: Display Features And Settings

    Display Features & Settings...
  • Page 8 Display Features & Settings...

  • Page 9: Main Menu

    Display Features & Settings At the time of printing, the torque tester supports the English Language language. Other languages may be added in the future, and any available language can be selected by pressing the corresponding button on this screen. The clock settings allow users to set the time and date on the Clock torque tester.

  • Page 10: Editing Profiles

    Display Features & Settings Editing Profiles Tapping on a profile on the profiles menu allows the user to view and edit its attributes. To edit an attribute, the user must press the blue label for that attribute. Once a profile has been edited, the [Set] arrow must be pressed in order to confirm the changes.

  • Page 11: Settings Lock

    Display Features & Settings Measuring Torque Settings Lock The settings lock can be configured to prevent users from accessing certain functions of the torque tester. A four-digit PIN must be entered to change the lock. Once the PIN has been entered, the user is granted access to a screen from which the settings lock or PIN can be changed.

  • Page 12: Measuring Torque

    Measuring Torque Collecting Torque Data The TM-1000 torque tester provides two modes for collecting torque data: Quick Run and Measure Mode. Both are accessible from the main menu and each may be run in either Peak or Track mode, depending on the requirements of the user.

  • Page 13: Exporting Data From Measure Mode

    Measuring Torque Exporting Data From Measure Mode Peak data collected in measure mode can be exported by tapping on the disk icon near the lower-right corner of the screen. When this icon is tapped, the user will first be prompted to provide a name for the data set being exported.

  • Page 14: Rundown Joints

    Troubleshooting Guide RundownJoint A rundown joint is offered with the TM-1000 torque tester for testing power tools. The rundown joint simulates the tightening of a threaded fastener by allowing the tool to run at free speed before fastening and shutting-off. Before starting each rundown, reverse (back out) the fastener until it is loose, but not completely backed out of the thread.
  • Page 15 tester may vary from the final torque of the installed fastener in the workpiece. It is strongly advised that the user audits the final torque of an installed fastener(s) to ensure that the power tool is set properly to meet their requirements. Troubleshooting Guide Problem Possible Cause...
  • Page 16 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment TORQUE METER Model/ Serial No. TM-1000 The object of the declaration described above is in conformity with the relevant union harmonization legislation: Electromagnetic Compatibility 2014/30/EU RoHS 2011/65/EU...
