Xiaomi T302 Manual

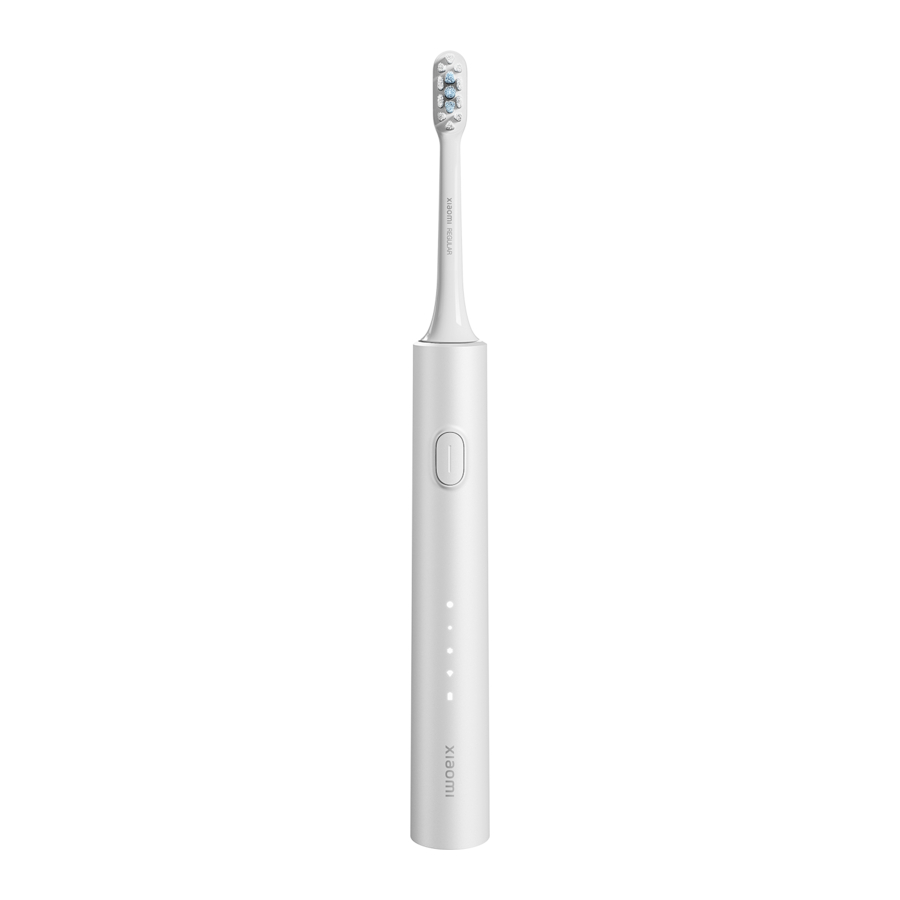

Product Overview

1. Shaft Protective Cover
2. Shaft
3. Toothbrush Handle
4. On/Off Button
5. Battery Level Indicator
6. Mode Indicator
   Standard Cleaning
   Delicate & Gentle
   Gum Massage
   Whitening Polish
7. Toothbrush Head Cover
8. Toothbrush Head
9. Charging Dock
10. User Manual
11. Warranty Notice

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

How to Use

1. Make sure that the toothbrush head is installed in the same direction as the front of the toothbrush handle, and make sure there is a slight gap between the toothbrush head and the handle (the gap is designed to prevent the toothbrush head from colliding with the handle during high-frequency vibration, so as to generate more power from the motor).

2. Wet the toothbrush head and squeeze a proper amount of toothpaste onto the toothbrush head.

3. Turning on/turning off/changing modes


Turning on: Press the button to turn on the toothbrush.
Changing modes: After the toothbrush is turned on, press within 10 seconds to change modes.
Pause: Press the button for one second to pause the toothbrush. The toothbrush will automatically turn off after being paused for 30 seconds.
Turning off:

• Within 10 seconds after the toothbrush is turned on, press the button to turn it off when the toothbrush is in the whitening polish mode or after changing it to the mode.
• When your toothbrush runs for over 10 seconds, press the button to turn it off under any mode.

4. Healthy brushing
   • Position the toothbrush head at an angle of 45° to the gum line and slowly move it along the teeth and gum line.

   • During brushing, the toothbrush pauses briefly every 30 seconds to prompt the user to change the brushing position.
   • When there is no active pause during use, the toothbrush will automatically turn off after running for 2 minutes.
   • Four brushing modes are available:
     • Standard cleaning: Suitable for daily oral hygiene
     • Delicate & gentle: Suitable for new users and people with sensitive teeth
     • Gum massage: Suitable for people with sensitive gums
     • Whitening polish: Suitable for people with stubborn tooth stains
5. Cleaning the toothbrush head
   1. After brushing teeth, rinse the toothbrush head with running water.

   2. After rinsing the toothbrush head, put on the toothbrush head cover to keep the toothbrush head clean and hygienic.


*Dentists recommend replacing the toothbrush head every three months.

Regular Charging

• Battery level indicator description

• When the battery level indicator is breathing orange at a fast pace and the toothbrush cannot be turned on, it means the battery is drained. It takes approximately 4 hours (the charging time varies depending on the remaining power) to fully charge the battery. When the battery is drained, the toothbrush can be turned on and complete one brushing session after two minutes of flash charging.
  Note: The toothbrush charging dock is designed for this toothbrush and is incompatible with other products.

• Please use a 5 V 1 A power adapter (sold separately) when charging.

Removing the rechargeable battery

1. Insert a flat screwdriver into the gap between the handle's bottom cover and the handle, and pry upward until the bottom cover opens.

2. Use a flat screwdriver to press the buckles on both sides of the inner compartment, press the front metal shaft against a hard object, and push the inner compartment out of the toothbrush.

3. Use a diagonal cutter to cut off the positive and negative battery connection wires. Remove the battery and deposit it at an official recycling point.


Specifications

Name: Xiaomi Electric Toothbrush T302
Model: MES608
Rated Voltage: 3.6 V	Rated Power: 2 W
IP Rating: IPX8	Battery: 3.6 V , 1050 mAh, 3.78 Wh
Charging Time: Approx. 4 hours
Name: Charging Dock
Model: MES608	Rated Input: 5 V =1 A
Charging Method: Wireless charging
Maximum Output Power: -13 dBm
Operating Frequency: 110–205 kHz
This device has been tested and meets applicable limits for radio frequency (RF) exposure.

Troubleshooting

Safety Instructions

When using the toothbrush for the first time, it may cause itch or minor gum bleeds. This is normal when the gums are not accustomed to the efficient cleaning of an electric toothbrush. It is recommended to use delicate & gentle mode when your gums are not used to it yet. Normally, gum bleeds will stop within one to two weeks. Stop using the toothbrush and consult a dentist if it persists.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not expose the appliance or battery to excessive temperatures.
• Be aware of the risk of terminals of the battery-operated appliance or battery being short-circuited by metal objects.
• This appliance contains a battery that is non-replaceable.
• Only use and charge the appliance at temperature between 5°C and 35°C.

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Shenzhen Soocas Technology Co., Ltd. (a Mi Ecosystem company)
Address: Room 401, 402, 1101, 1102, 1103, 1104, Building 2 Chongwen
Area, Nanshan iPark, No. 3370 Liuxian Avenue, Fuguang Community,
Taoyuan Subdistrict, Nanshan District, Shenzhen, China
For further information, please go to www.mi.com
