Summary of Contents for HAMPTON BAY LILLYCREST II 32719

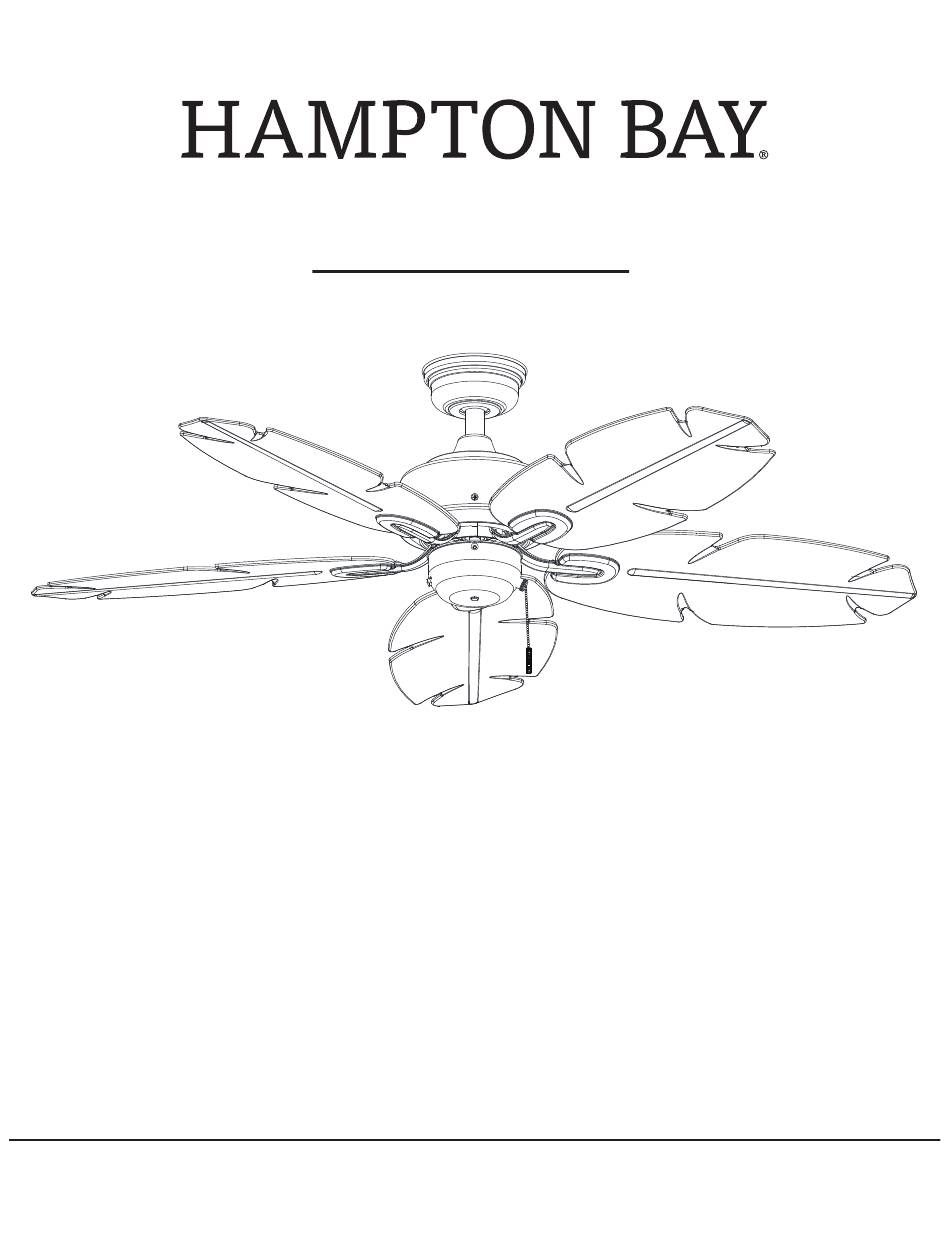

Page 1
THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning ............. 13 Pre-Installation ..............3 Troubleshooting ..............13 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS To reduce the risk of electric shock, ensure the electricity has been WARNING: To reduce the risk of personal injury, do turned off at the circuit breaker or fuse box before you begin.
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law.
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Extra blade bracket screw Plastic wire connector Hanger pin Locking pin Pull chain Water proof plug Extra mounting screws for outlet box...
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Switch cup (inside canopy) Blade Ball/downrod assembly Blade bracket Canopy Coupling cover Fan-motor assembly IMPORTANT: This product and/or components are governed by one or more of the following U.S. Patents: 5,947,436;...
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain or personal injury, mount to an outlet box marked proper blade clearance when installing on a steep, sloped “Acceptable for fan support of 35 lbs. (15.9 kg) or less,” ceiling.
Assembly - Standard Ceiling Mount Preparing for standard mounting Routing the wires □ □ Remove the canopy ring (II) from the canopy (C) by turning the Route the wires exiting the top of the fan motor ring counterclockwise until it unlocks. assembly (E) through the center of the canopy ring (II).
Page 8
Assembly - Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lbs. (15.9 kg) or less,” and use the screws provided with the outlet box.
Assembly - Hanging the Fan (continued) Making the electrical connections WARNING: Each wire nut supplied with this fan is designed to accept up to one 12-gauge house wire and two wires from the fan. If you have larger than 12-gauge house wiring or more than one house wire to connect to the fan wiring, consult an Outlet box electrician for the proper size wire nuts to use.
Page 10
Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
Assembly - Attaching the Fan Blades Attaching the blades to the blade brackets □ Mount the fan blade (G) to the blade bracket (H) by aligning the three key-slot holes in the blade (G) with the three posts on the top of the blade bracket (H).
Operation A. Warm Weather OPERATING YOUR FAN Turn on the power and check the operation of the fan. The fan pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off The appropriate speed settings for warm or cool weather depends on factors such as the room size, ceiling height, and number of fans.
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
Page 14
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
Page 15
MERCI Nous vous remercions d’avoir fait confiance à Hampton Bay en achetant ce ventilateur de plafond. Nous nous efforçons en permanence de créer des produits de qualité conçus pour agrémenter votre maison. Vous pouvez visiter notre site en ligne pour consulter notre gamme complète de produits répondant à...
Table des matières Table des matières .............. 2 Assemblage ................. 7 Consignes de sécurité ............2 Utilisation ................12 Garantie ................3 Entretien et nettoyage ............13 Pré-installation..............3 Dépannage ................. 13 Installation ................6 Consignes de sécurité LISEZ ET CONSERVEZ CES INSTRUCTIONS Pour réduire le risque d’électrocution, assurez-vous que le courant AVERTISSEMENT : Pour réduire les risques de est coupé...
être considéré comme un défaut. Les réparations effectuées par des personnes non autorisées rendront cette garantie caduque. Il n’existe aucune autre garantie formelle. Par la présente, Hampton Bay décline toute garantie y compris, mais sans s’y limiter, celles qui ont trait à...
Pré-installation (suite) QUINCAILLERIE FOURNIE REMARQUE : La quincaillerie n’est pas illustrée à la grandeur nature. Pièce Description Quantité Vis supplémentaire pour support de pale Capuchon de connexion en plastique Goupille de suspension Goupille de verrouillage Chaîne (tirette) Bouchon étanche Vis de montage supplémentaire pour boîte de sortie de courant...
Pré-installation (suite) CONTENU DE L’EMBALLAGE Pièce Description Quantité Pièce Description Quantité Support de fixation à glisser Boîte de branchement (à l’intérieur de la monture) Pale Ensemble boule/tige de suspension Support de pale Monture Couvercle pour accouplement Moteur du ventilateur IMPORTANT : Ce produit et/ou ses composants sont protégés par un ou plusieurs des brevets américains suivants : 5,947,436;...
Installation OPTIONS D’INSTALLATION AVERTISSEMENT : Pour réduire les risques d’incendie, REMARQUE : Une tige de suspension plus longue peut s’avérer nécessaire pour maintenir une distance correcte de choc électrique ou de blessure corporelle, installez entre les pales et le plafond, lors d’une installation sur sur une boîte de sortie de courant portant la mention un plafond présentant une forte pente.
Assemblage – Installation normale au plafond Préparation à l’installation normale Acheminement des fils □ □ Retirez l’anneau de monture (II) de la monture (C) en le tournant Faites passer les fils sortant du dessus du moteur du dans le sens antihoraire jusqu’à ce qu’il soit déverrouillé. ventilateur (E) par le centre de l’anneau de monture (II).
Page 22
Assemblage - Suspension du ventilateur Montage du ventilateur sur la boîte électrique AVERTISSEMENT : Pour réduire les risques d’incendie, de choc électrique ou de blessure corporelle, installez sur une boîte de sortie de courant portant la mention « Capable de supporter un ventilateur de 15,9 kg (35 lb) ou moins »...
Assemblage – Suspension du ventilateur (suite) □ Connectez les fils noir et bleu du moteur du ventilateur au fil noir du Effectuer les connexions électriques câblage de la maison au moyen d’un capuchon de connexion (BB). □ Assurez chaque capuchon de connexion au moyen de ruban isolant. AVERTISSEMENT : Chaque capuchon de connexion fourni avec □...
Page 24
Assemblage – Suspension du ventilateur (suite) Installation du moteur du ventilateur (installation normale) AVERTISSEMENT : Si la méthode d’installation normale avec la boule et la tige de suspension est utilisée, la languette de l’anneau qui se trouve au bas du support de fixation doit reposer dans le sillon de la boule de suspension.
Page 25
Assemblage – Installation des pales du ventilateur Installation des pales sur les supports de pales □ Fixez les pales du ventilateur (G) sur les supports de pale (H) en alignant les trois trous en forme de serrure situés sur la pale (G) avec les trois tenons sur le dessus du support de pale (H).
Utilisation A. Par Temps chaud UTILISATION DU VENTILATEUR Mettez le ventilateur en marche et vérifiez son fonctionnement. La chaîne (tirette) du ventilateur permet de contrôler sa vitesse comme suit : Tirez 1 fois pour la vitesse élevée, 2 fois pour la vitesse moyenne, 3 fois pour la vitesse faible et 4 fois pour éteindre le ventilateur.
Entretien et nettoyage AVERTISSEMENT : Assurez-vous que l’alimentation électrique est coupée avant de nettoyer le ventilateur. □ En raison du mouvement naturel du ventilateur, certains raccords peuvent se desserrer. Vérifiez les raccords de support, les brides et les fixations des pales deux fois par an. Vérifiez qu’ils sont solidement fixés. Il n’est pas nécessaire de retirer le ventilateur du plafond. □...
Page 28
Questions, problèmes, pièces manquantes? Avant de retourner au magasin, veuillez communiquer avec le service à la clientèle Hampton Bay de 8 h à 19 h, HNE, du lundi au vendredi, et de 9 h à 18 h, HNE, le samedi 1 855 HD-HAMPTON HOMEDEPOT.CA Conservez ce guide pour un usage ultérieur.
