Operating Instructions and Parts Manual
Please read through this owners manual carefully before using your new tool. Use your tool properly and
only for its intended use.

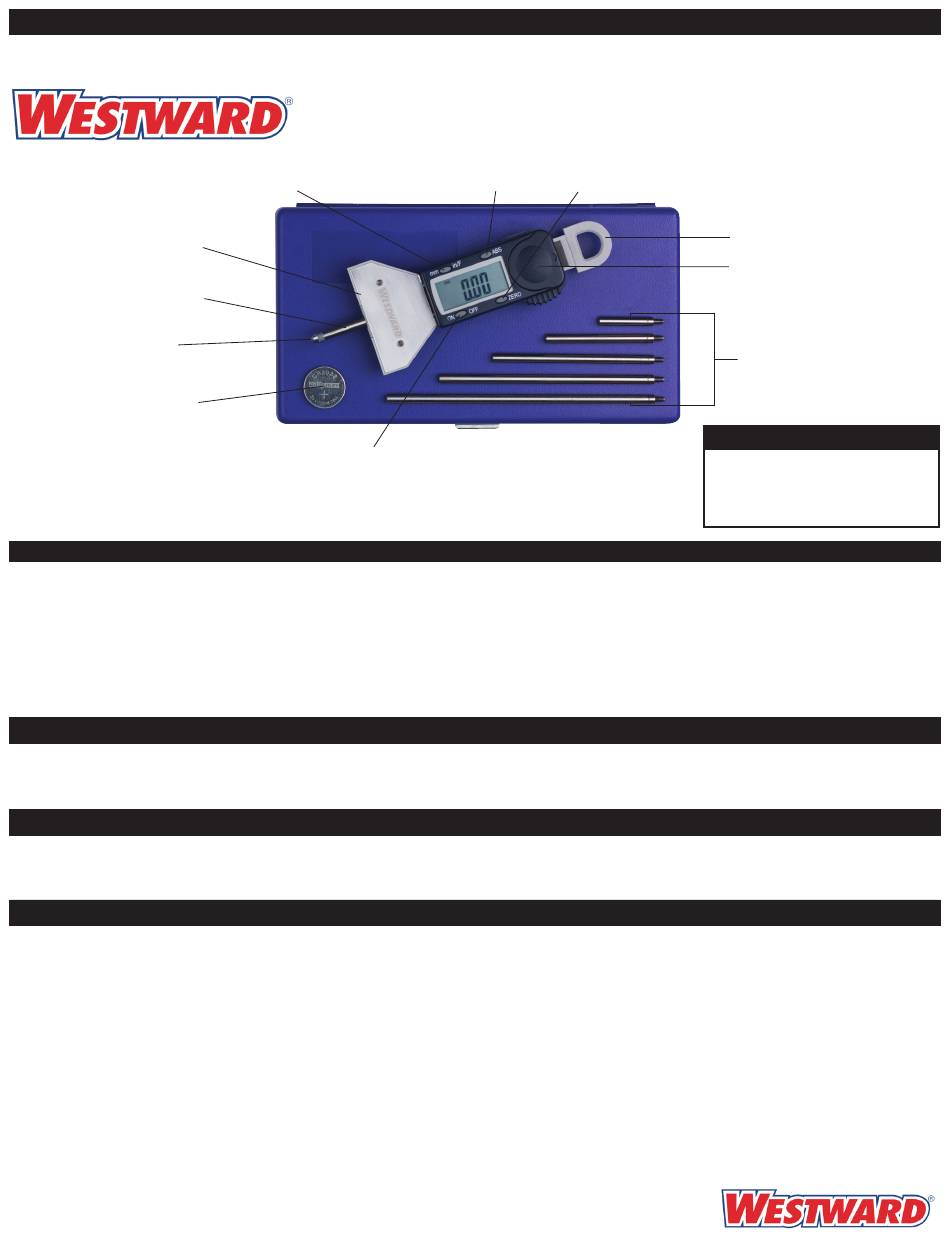

Measuring Base
Plunger
Ball Contact
Battery
On/Off
: Press <on> button once to turn on. Press button an additional time to turn off.
Zero Setting:
Press <zero> function button at any position.
Change Measuring Standard:
• For measurement between 0 and 1"
the range of the plunger.
• For measurement lengths greater than 1".
ing additional rods, the depth gage must be set against a master part or a setting master.
Hold:
Press once to retain measurement on display. Press once again to return to measuring mode.
• Slide off the battery cover and rubber gasket, then remove the battery by gently tapping the instrument in your hand. (Never try to force or pry the battery out). Insert
the new battery with the positive pole "+" facing upwards and replace the gasket and cover.
• Please dispose of used batteries at a proper collection center.
Symptom
• Digits do not change or count correctly
• No Display
RESET:
In order to RESET the instrument, remove the battery, wait 30 seconds, replace the battery and turn the instrument on.
Precautions: Although a top quality product, certain precautions are required for any electronic instrument:
• Avoid exposure to all liquids and excessive humidity.
• Avoid exposure to electromagnetic fields.
• Do not expose the instrument to direct sunlight.
• Do not attempt to disassemble the depth gage for extended periods of time.
Manufactured for Grainger International Inc.
100 Grainger Pkwy., Lake Forest IL 60045 U.S.A.
Depth Gage & Electronic Caliper Kit
Direct in/mm/F conversion
On/Off
Press <mm/in/F> function button to toggle between mm, in or fractions.
. Place the depth base on a surface plate or other flat surface and press ZERO. Zero can also be set at any point within
Add the necessary amount of measuring rods for the depth required. To insure correct measurements after add-
Battery Replacement
• Clean the depth gage with a soft cloth.
• DO NOT use any type of solvent.
• DO NOT immerse the depth gage in liquid.
Troubleshooting
Zero
Hold
Depth Gage: 2YNK3
Functions
Cleaning
Corrective Action
• Remove the battery for 30 seconds then reinstall.
• Check battery contacts or replace battery.
FOW240
Printed in China
02/10
Model No: 2YNK4
Lifting Handle
Battery Cover
Extension Rods 2-6"
IMPORTANT!
Initial Operation
This depth gage comes supplied with a bat-
tery and is instantly operational. However,
we suggest you read this manual prior to
using your instrument.
