Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
The Wall-Mounted Hose Box with automatic spring hose recoil is designed for irrigation of the garden and is intended
for use in hobby gardens.

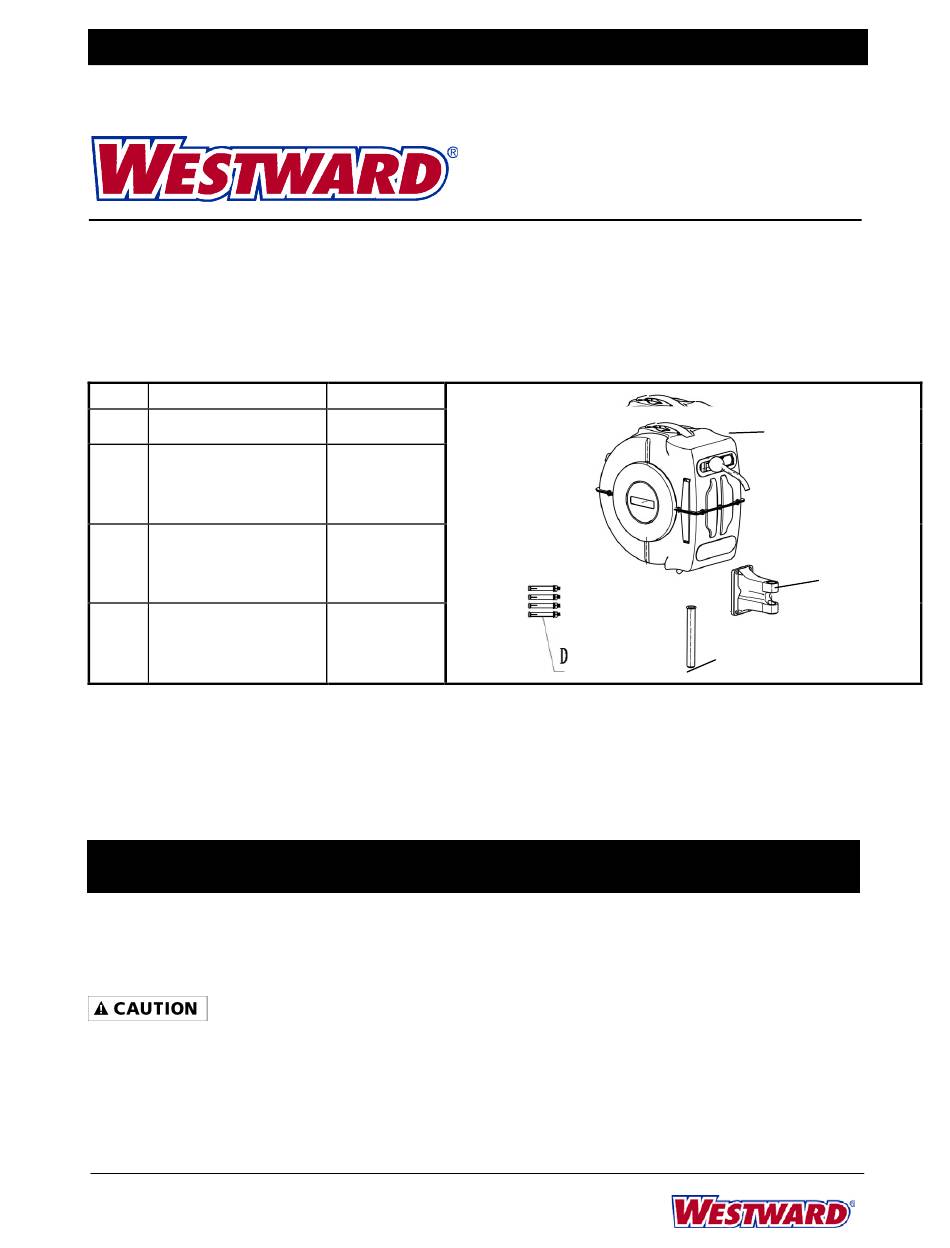

Parts list
N O
D e s c r i p t i o n
A
R e e l
B
M o u n t i n g b r a c k e t
C
A l u m i n u m t u b e
D
E xp a n s i v e b o l t
Unpacking
1. Remove product from its packaging.
2. Check the product and accessories. To ensure there was no damage in shipping.
Specification & Dimensions
Max. Pressure
Model
(Bar)
24AD42
420PSI
General Safety Information
Read the Operating Instructions before Initial operation.
Setting up your hose reel:
1.
Choose a mounting location that is near a faucet or source of water.
2.
Mount the bracket (B) to the wall using the expansion bolts (D). Make sure that all four (4) bolts are in the
center of the holes. Note: All bolts must be used for safe mounting.
FORM ZYZ42
Printed in China
07/13
Q u a n t i t y
1 p c
1 p c
1 p c
4 s e t s
Pressure Range
Main Hose
(Bar)
(Feet)
0PSI -150PSI
65 Ft. AUTO REWIND HOSE REEL
Dimensions (Inches)
Length
Width
65
28
10-1/8
24AD42
A
B
C
Weight
Height
(Pounds)
17-7/8
20.39

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24AD42 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westward 24AD42

  • Page 1 Operating Instructions and Parts Manual 24AD42 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
  • Page 2 Westward Operating Instructions Manual 24AD42 65 Ft. AUTO REWIND HOSE REEL Attach the hose reel (A) to the mounting bracket by centering the reel over the bracket and inserting the aluminum tube (C) through both the hose reel and the mounting bracket by tapping with a rubber mallet (as shown in Figure 1).
  • Page 3 Westward Operating Instructions Manual 24AD42 65 Ft. AUTO REWIND HOSE REEL Troubleshooting- Spring Tension: Disconnect the hose reel from the mounting bracket by removing the aluminum rod. Remove the side cover on the opposite side of the water system. Use pliers to tightly hold the center ring using the two openings provided (Figure 2).
  • Page 4 Westward Operating Instructions Manual 24AD42 65 Ft. AUTO REWIND HOSE REEL For Repair Parts, Call 1-800-323-0620 24 hours a day-365 days a year Ref. No. Description Qty. Ref. No. Description Qty. Outer casing Handle Coil wheel Handle base Spring Window...
  • Page 5 Instrucción de Funcionamiento y Piezas Manuales 24AD42 Por favor lea y guarde estas instrucciones. Lea este manual de instrucciones cuidadosamente antes de usar el producto. Protéjase a sí mismo y a los demás observando toda la información de seguridad, advertencias y precauciones. El incumplimiento de las instrucciones podrí...
  • Page 6: Cuidado Y Mantenimiento

    Westward Instrucció n de Funcionamiento y Piezas Manuales 24AD42 65 Ft. Carrete de Manguerra AUTO Rebobinado insertando el tubo de aluminio (C) tanto a través de la bobina de manguera y el soporte de montaje por roscado con un martillo de goma (como se muestra en la Figura 1).
  • Page 7 Westward Instrucció n de Funcionamiento y Piezas Manuales 24AD42 65 Ft. Carrete de Manguerra AUTO Rebobinado Vacì e completamente toda el agua de la manguera y la manguera de entrada antes de los perí odos de tiempo de congelación o almacenamiento invernal.
  • Page 8 Westward Operating Instructions Manual 24AD42 65 Ft. Carrete de Manguerra AUTO Rebobinado Para las Piezas de Reparación, llama 1-800-323-0620 24 horas un dí a – 365 dí as un año Ref. No. Descripción Qty. Ref. No. Descripción Qty. Carcasa externa...
  • Page 9 Mode d'emploi et Manuel de pièces détachées 24AD42 Veillez lire et conserver ces instructions. Lisez le manuel d'utilisateur avant d'utiliser ce produitProtégez-vous et les autres en observant les consignes de sécurité, les avertissements et les mises en garde. Le non-respect de ces instructions peut entraî...
  • Page 10 Westward Mode d'emploi et Manuel de piè ces dé taché es 24AD42 AUTO ENROULEUR À REMBOBINAGE DE 65 Pieds Installer le support (B) au mur en utilisant les boulons expansibles (D). Assurez-vous que tous les quatre boulons (4) soient au centre des trous. Remarque: Tous les boulons doivent être utilisés pour assurer la sécurité...
  • Page 11 Westward Mode d'emploi et Manuel de piè ces dé taché es 24AD42 AUTO ENROULEUR À REMBOBINAGE DE 65 Pieds Si le ressort intérieur commence à avoir des difficultés à rembobiner le tuyau, parce qu'il peut être fatigué. Suivez les procédures pour l'ajout de tension trouvées dans la section DÉPANNAGE de ce manuel.
  • Page 12 Westward Mode d'emploi et Manuel de piè ces dé taché es 24AD42 AUTO ENROULEUR À REMBOBINAGE DE 65 Pieds Pour les pièces de Remplacement, Appeler 1-800-323-0620 24 heures par jour – 365 jours par an No. Réf Description Qté. No. Réf Description Qté.
