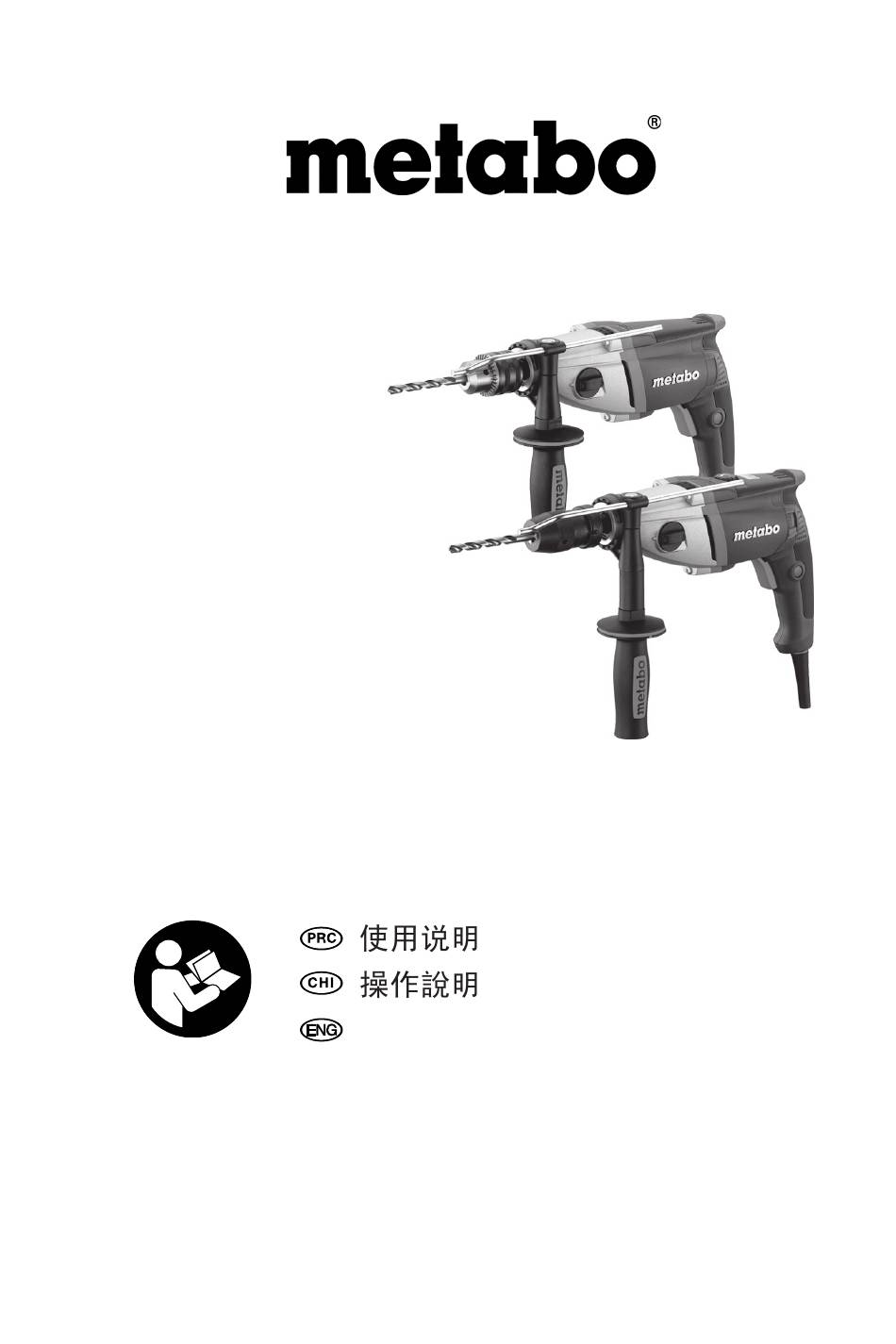

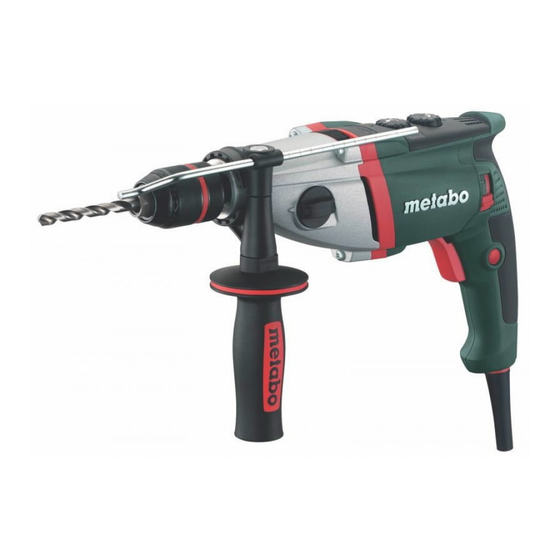

- Page 1 SB 710 SBE 701 SP SBE 710 SBE 730 SBE 751 SBE 900 Impuls SBE 1000 SBE 1100 Plus ........5 ........10 Operating Instructions ....15 170 27 0870 - 1112 (incl.SHW) 170 27 0870 - 0311...
- Page 2 1000 1100 1000 0-1000 0-800 0-900 /min 3100 0-3100 0-2700 0-2800 1000 /min 1800 3100 2700 2800 ø max. (3/4“) (in) /min. s max. 59000 51000 53000 40 (1 9/16“) ø max. (in) (1“) (1/2“) (5/8“) (5/8“) ø max. (in) (5/16“) 1,5-13 1,0-13...
- Page 3 SB 710 SBE 900 Impuls SBE 1100 Plus SBE 701 SP SBE 1000 SBE 710 SBE 730 SBE 751 SBE 701 SP SBE 710 SBE 730 SBE 751...
- Page 4 l = 1,2 m 50 x 20 mm: 6.31110 60 x 30 mm: 6.31111 6.23598 6.31078 6.27608 60 x 40 mm: 6.31112 6.30554 6.30552 6.30553 6.30550 6.30551 a=80 mm a=100 a=86 b=80 mm b=100 b=80 6.31281 6.00890 6.27106 6.12001 6.12003 SBE 900 Impuls ø...
- Page 5 SBE1000,SBE1100 Plus(...
- Page 6 (SBE 1100 Plus, SBE 1000) (SBE 1100 Plus) (SBE 900 Impuls) (SBE 900 Impuls) 8.12 5 Futuro Plus 6 Futuro Top (SB 710 (11) SBE 1100 Plus...
- Page 7 (13) (12) (13) Futuro Top 8.10 Futuro Plus (SB 710 (SBE 900 Impuls) 1 6) 8.11 (SBE 900 Impuls) 8.12 Futuro Top (13) Futuro Plus...
- Page 8 (SBE 1100 Plus) SBE 900 Impuls) 6.31281) (SB 710 www.metabo.com (13) (11) (SB 710 www.metabo.com. SBE 900 Impuls: www.metabo.com (10) (SBE 1000, SBE 1100 Plus) (SBE 1100 Plus)
- Page 9 EN 60745 ø max = s max EN 60745 h,ID h,ID EN 60745...
- Page 10 针 电 具的 性 阅 所有的 指 。如 遵 指 ， 电 、 /或其 的 。 善 所有的 指 ， 阅。在 指 用的 “电 具” 指 电 的电 具（ 备电 ） 用 电 的电 具（ 电 ）。 所的 全 f) 着合适的 。...
- Page 17 具的 性 所有的 指 。如 遵 指 ， 、 /或其 的 。 善 所有的 指 ， 。在 指 用的“ 具” 指 須連 的 具（ 備 ） 用 的 具（無 ）。 場所的 全 f) 著合適的 。 時 的衣 ， 戴首 。 、衣...
-
Page 19: Table Of Contents
Operating Instructions Dear Customer, Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. -
Page 20: Overview
Auto-stop carbon brushes: The Metabo S-automatic safety clutch must not be If the carbon brushes are completely worn, the used for torque control. machine switches off automatically. SBE 1100... -
Page 21: Use
Preselect speed 8 Use (except SB 710) Use the setting wheel (8) to preselect the Adjusting depth stop maximum speed. See page 4 for recommended Release additional handle (2). Set depth stop (3) to drilling speeds. the desired drilling depth and retighten additional handle. -
Page 22: Tips And Tricks
For thread tapping (except SB 710), apply some oil - Caution! The tool is not yet fully clamped! to the tap. Select a low speed and the first gear. -
Page 23: Accessories
For the complete range of accessories, see = Uncertainty (vibration) h,ID www.metabo.com or refer to the main catalogue. The vibration level specified in these instructions has been measured using a procedure standard- ised in EN 60745 and can be used for comparing 13 Repairs power tools with one another. - Page 24 A-effective perceived sound levels: = Sound pressure level = Acoustic power level = Uncertainty (sound level) Wear ear protectors! Measured values determined in conformity with EN 60745. Machine in protection class II * Energy-rich, high-frequency interference can cause fluctuations in speed. The fluctuations disappear, however, as soon as the interference fades away.
-
Page 25: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference! The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 28 Metabowerke GmbH, 72622 Nürtingen, Germany www.metabo.com...
