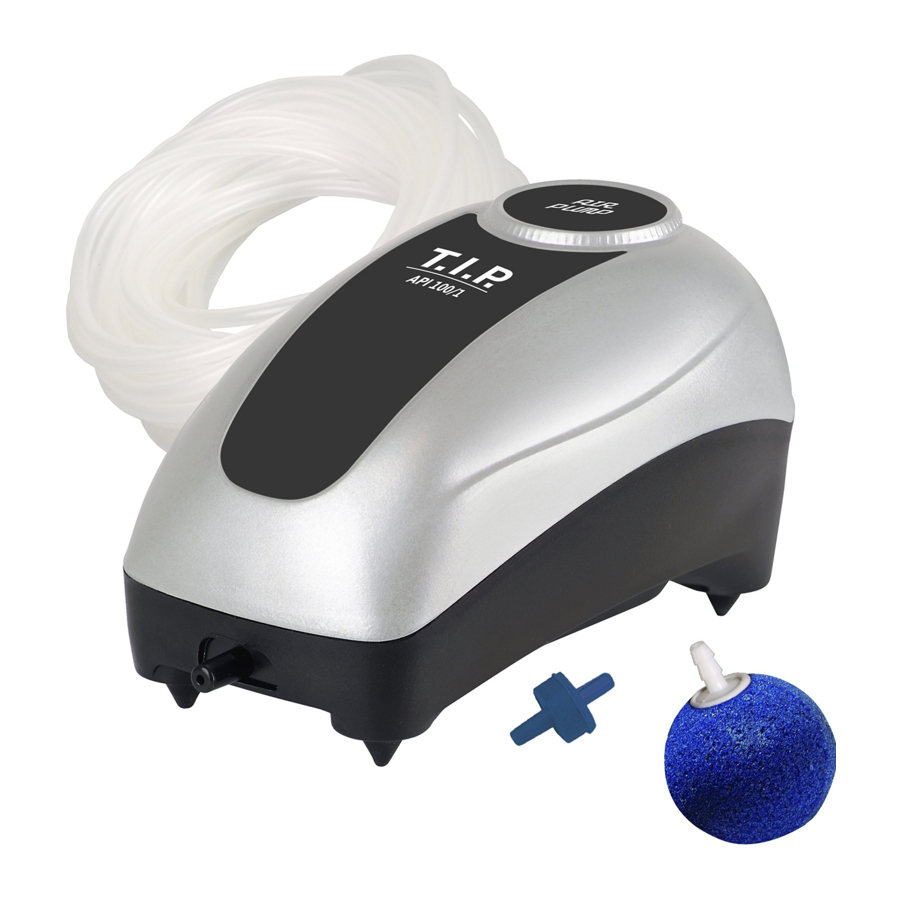

T.I.P. API 100/1 Manual

Technical Data

Model	API 100/1
Mains Voltage / Frequency	220 - 240 V~ 50 Hz
Power Consumption	2,2 Watt
Enclosure rating / Isolation Class	IP44 / ll
Max. Flowrate	90 l/h
Length of line cord	1,3 m
Type of cord	H03VVH2- F
Net weight	0,5 kg
Item Part Nr.	30430

Intended Use

The pump is designed to aerate aquaria and pond water. Do not place the pump above water to avoid slip into water, it must be installed and used outside the water.

Use the appliance only indoor, do not install outdoor.
The pump must be protected from freezing temperature.

Installation

General Safety Instructions on installation

Disconnect the unit from the mains before installation.
Prior to any maintenance disconnect the power supply to all units immersed

Do not force single components while assembling as this may damage the unit.

Pay due attention to the attached pictures at the end of this manual of instructions. The figures hereafter which are put in brackets are referring to these pictures.

Safety guidelines

(see fig. 1)

• Mains voltage and type of current have to correspond to the data on the type plate.
• Pull out mains plug before starting to work or maintenance on the pump, in the pond or aquarium (disconnect the pump).

The pump should be placed so that it cannot fall in the water. Keep the pump dry. Fix the pump by means of a string (A) which can pass through the hole at the back side of the pump. Caution! The pump may travel due to the vibrations that result during operation. Ensure the pump is fixed by the string (A) securely before operation.

The pump should be placed at higher level than water surface (B).

The pump should not be used, if mains connection, plug or housing are damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any repair work should be done only by the manufacturer or by an authorized repair shop who has on hand all the special tools.

Run a part of the cable downward in a curve so as to prevent water flowing freely along the cable to the plug or the plug socket (C). In case plug or socket have got wet, do avoid any contact! Interrupt current supply to the plug socket!

Run a part of the hose downward in a curve so as to prevent water flowing freely along the hose to the pump (D). In case the pump has got wet, pull out mains plug!

• Do never hang up or transport the pump by the cable!
• Protect the pump from freezing in winter!
• Take special care in following these safety guidelines when children are near by.

Installation

• Order of setting up (see fig. 1):


1. aerating pump,
2. hose approx. 10 cm,
3. non- return valve,
4. hose and
5. air stone.

Customer Service

In case of warranty claims or faults please return the unit to the shop /seller.

General Safety Instructions

Please read the following operating instructions carefully and familiarize yourself with the unit prior to using for the first time. If used for purposes other than that intended, our guarantee conditions will become null and void. We are not responsible for damages caused by mishandling of the unit. Please keep these instructions for any future reference and hand them over when passing the unit on to a new owner.

Persons not conversant with the contents of these operating instructions must not use this device.

The pump must not be used by children.

The pump may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they have been supervised or instructed in the safe use of the equipment and have understood the resulting hazards. Children are not allowed to play with the device.

The pump must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Instructions with these symbols are particularly to be noted:

Hazardous for persons or equipment if the safety instructions of this unit are ignored or disregarded.

Hazardous, as electrocution leading to death or severe injuries to persons could result from this unit if the safety instructions are ignored or disregarded.
Please check the unit for any damage due to transport. Any damage caused during transportation has to be reported immediately – and within 8 days from purchase date – to the shop/seller.
