Summary of Contents for Braun ThermoScan IRT 6020

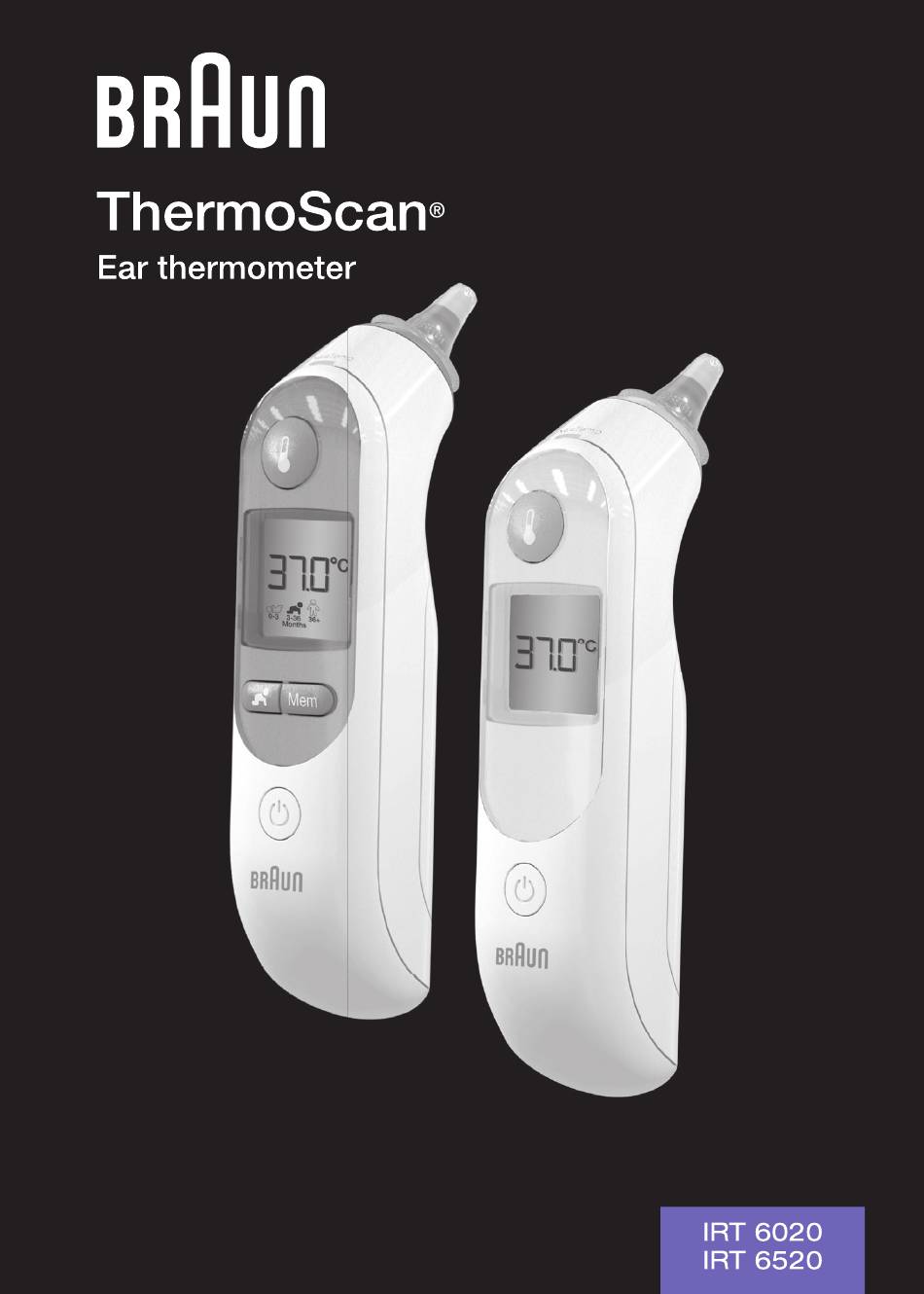

- Page 2 IRT 6520 IRT 6020...
-

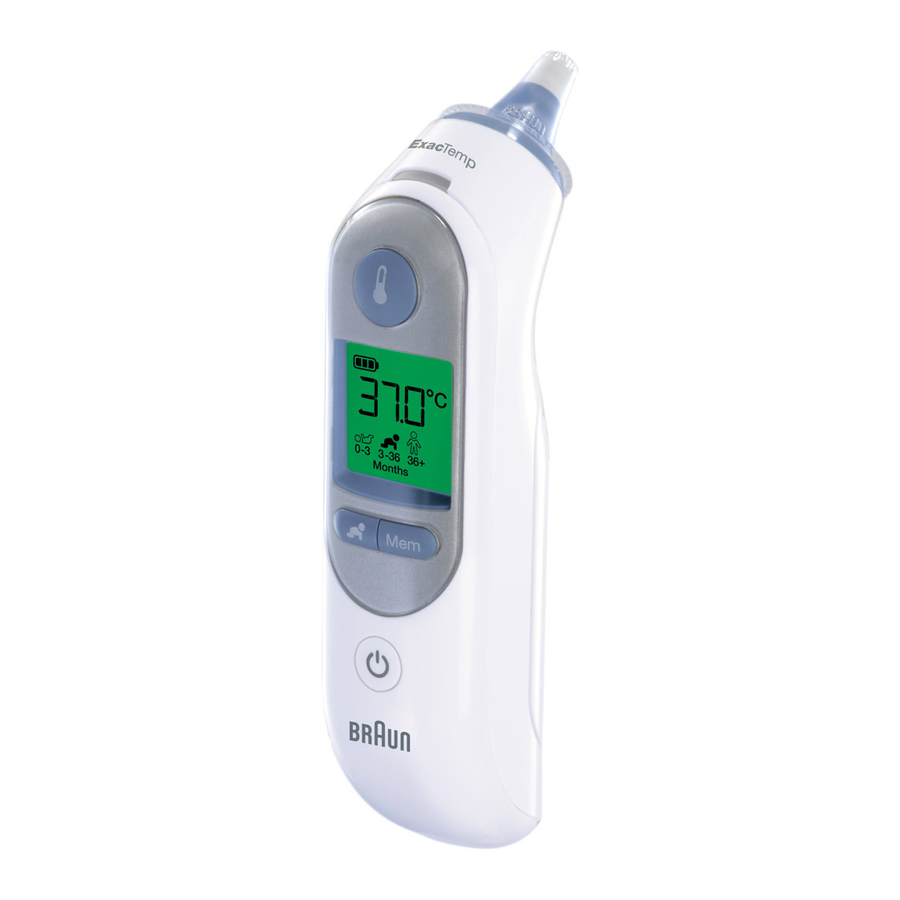

Page 3: Product Description
(below -25 °C / -13 °F or over 55 °C / 131 °F) or excessive humidity (>95% RH). This thermometer must only be used with genuine Braun ThermoScan lens fi lters (LF 40). To avoid inaccurate measurements always use this thermometer with a new, clean lens fi lter attached. -
Page 4: Body Temperature
It also varies from person to person and fl uctuates throughout the day. Therefore, it is important to determine normal temperature ranges. This is easily done using Braun ThermoScan. Practice taking temperatures on yourself and healthy family members to determine the normal temperature range. - Page 5 When the Braun ThermoScan is placed in the ear, it continuously monitors the infrared energy. The measurement is fi nished and the result displayed when the thermometer detects that an accurate temperature measurement has been taken.
- Page 6 Attach a new lens fi lter by pushing the thermometer probe straight into the lens fi lter inside the box and then pulling out. Note: The Braun ThermoScan will not work unless a lens fi lter is attached. Select age with Age Precision ™...
-
Page 7: Temperature-Taking Hints
NOTE: Defaults to last age setting used if you do not change. The Braun ThermoScan ear thermometer turns off automatically after 60 seconds of inactivity. The thermometer can also be turned off by pressing the Power button The display will briefl y fl ash OFF and it will go blank. -
Page 8: Memory Mode
15 seconds even after temperature is taken. Changing the temperature scale Your Braun ThermoScan is shipped with the Celsius (°C) temperature scale activated. If you wish to switch to Fahrenheit (°F) and/or back from Fahrenheit to Celsius, proceed as follows: Make sure the thermometer is turned off . -
Page 9: Care And Cleaning
Never submerge this thermometer in water or any other liquid. Store thermometer and lens fi lters in a dry location free from dust and contamination and away from direct sunlight. Additional lens fi lters (LF 40) are available at most stores carrying Braun ThermoScan. Replacing the batteries The thermometer is supplied with two 1.5 V type AA (LR 06) batteries. -
Page 10: Errors And Troubleshooting
Errors and troubleshooting Error Message Situation Solution No lens fi lter is attached. Attach new, clean lens fi lter. The thermometer probe was not Take care that the positioning of the positioned securely in the ear. probe is correct and remains stable. An accurate measurement was not possible. -
Page 11: Product Specifications
Product specifi cations Displayed temperature range: 34 – 42.2 °C (93.2 – 108 °F) Operating ambient temperature range: 10 – 40 °C (50 – 104 °F) Storage temperature range: -25 – 55 °C (-13 – 131 °F) Operating and storage relative humidity: 10-95% RH (non condensing) Display resolution: 0.1 °C or °F... - Page 12 Guidance and manufacturer’s declaration – electromagnetic emissions The IRT 6020/6520 equipment is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the IRT 6020/6520 should ensure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment –...
- Page 13 Guidance and manufacturer’s declaration – electromagnetic immunity The IRT 6020/6520 is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the IRT 6020/6520 should ensure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic...
