Datavideo DAC-90 Instruction Manual

Datavideo DAC-90 Instruction Manual

Sdi audio de-embedder
Hide thumbs Also See for DAC-90:

Advertisement

Quick Links

Download this manual
SDI AUDIO
DE-EMBEDDER
DAC-90
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DAC-90 and is the answer not in the manual?

Questions and answers

Related Manuals for Datavideo DAC-90

Summary of Contents for Datavideo DAC-90

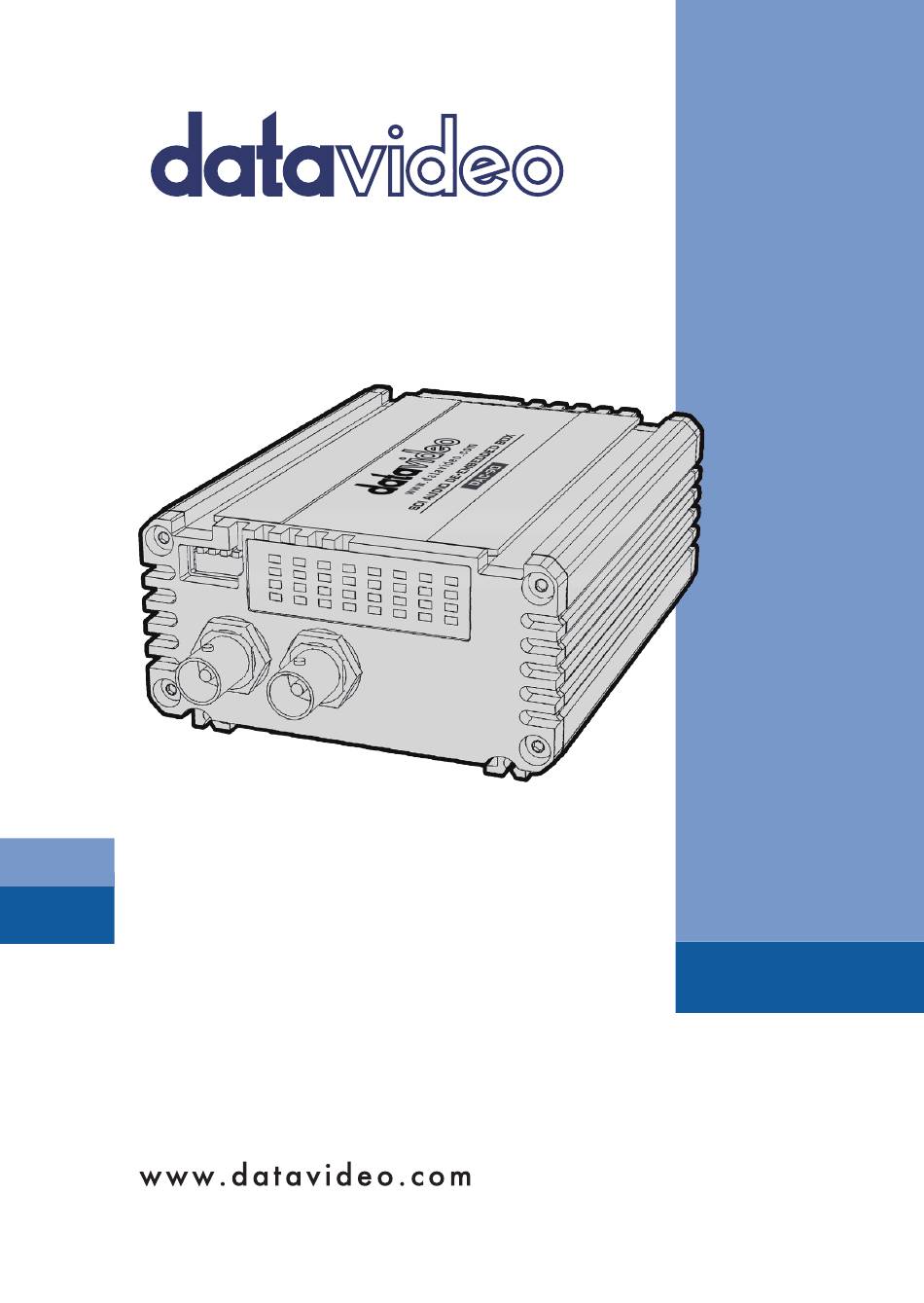

  • Page 1 SDI AUDIO DE-EMBEDDER DAC-90 Instruction Manual...

  • Page 2: Table Of Contents

    Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual.

  • Page 3: Fcc Compliance Statement

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 4: Warranty

    Warranty Standard Warranty • Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase. • The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 5: Three Year Warranty

    PCIe Card are covered for 1 year. • The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking...

  • Page 6: Introduction

    Introduction DAC-90 is an audio de-embedding box that allows the user to de- embed 16 analog audio signals (4 at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format and automatically detects and switches between different formats. In...

  • Page 7: Connections & Controls

    Connections & Controls Front Panel Mini-XLR Balanced XLR Audio Output Firmware Upgrade Port Power Indicator Indicates the power status DC In Socket Connects the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.

  • Page 8: Rear Panel

    Rear Panel SDI IN SDI input for video and audio SDI OUT Re-clocked Video and Audio output from SDI input Audio level indicator display Indications of current audio level Green Yellow -45~-40 -39~-35 -34~-29 -28~-24 -23~-18 -17~-13 -12~-8 -7~0 (Unit : dBFS)
  • Page 9 4 PIN DIP Switch Audio level adjustment 4 PIN DIP Switch Configuration...

  • Page 10: Firmware Update

    USB connection. 2. Set DIP SW4 to 1 (1: down; 0: up). 3. Connect the DAC-90 mini-USB port to the PC via a USB cable (you do not need to connect the DC 12V Power at this point and the PWR LED should be off).
  • Page 11 6. Safely remove the Datavideo USB device. 7. Set DIP SW 4 to 0 and then remove the Mini USB connection after the update is completed. 8. After the DC 12V Power Supply is connected, you will then see the PWR LED turned on;...

  • Page 12: Frequently-Asked Questions

    Frequently-Asked Questions This section describes problems that you may encounter while using DAC-90. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center.

  • Page 13: Dimensions & Weight

    Dimensions & Weight All measurements in mm Unboxed Unit Weight: 0.37 Kg Boxed Unit Weight: 0.6 Kg...

  • Page 14: Specifications

    Specifications Interface SDI Video Input 3G/HD/SD SDI x 1 3G/HD/SD SDI x 1 (Re-clocked Loop SDI Video Output through) Analog Audio Output Mini XLR (Balanced) x 4 Power LED x 1 Audio Level Indicator Audio Level LED : 4 rows Updates and Mini USB x 1 Configuration...
  • Page 15 SDI Audio Sampling 24-bit (SD 20-bit), 48KHz SDI Color Precision 4:2:2 / 4:4:4 (8/10/12-bit) SDI Color Space YUV, RGB SDI Auto Switching Automatically detects SD, HD, 3G Audio Level SMPTE and EBU switchable General Settings Control DIP Switch Power Supply DC 12V Operating 0°C to 40°C (32°F to 104°F)

  • Page 16: Service & Support

    It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to DATAVIDEO WORLDWIDE OFFICES common questions, support requests or contact your local office below.
