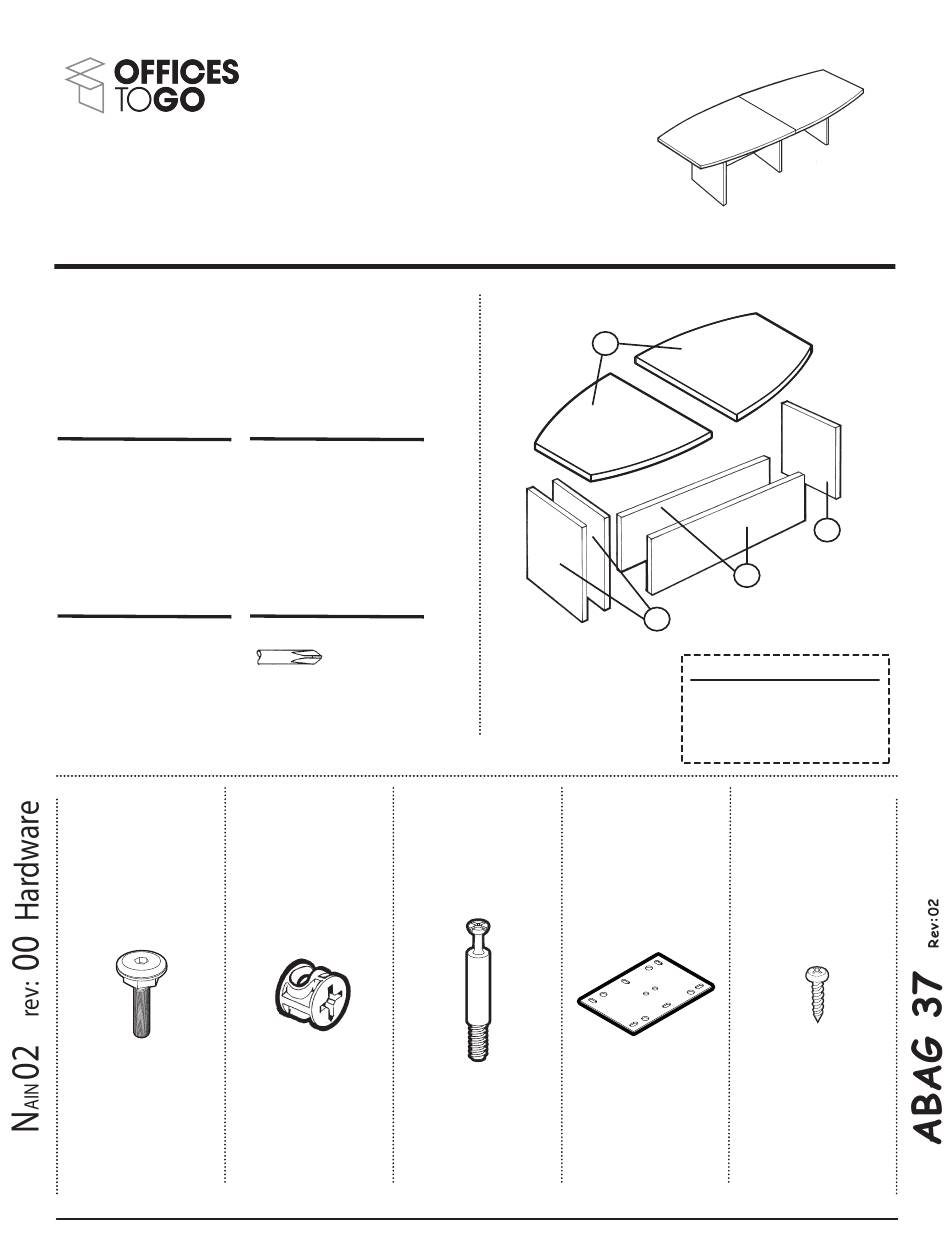

Assembly Instructions
Thank you for purchasing this product from Global.
Before you begin assembly, check that you have all the
parts and hardware shown on this page.
If there is any item missing, circle the item, indicating
quantity required and return to us by fax or mail:
CANADA
Global Upholstery
560 Supertest Road
Downsview, Ont.
M3J 2M6
TEL. (416)661-3660
FAX. (416)661-4300
Attn.: Customer Service
T
OOLS REQUIRED
Screwdriver size #2
I t is advisable to assemble unit on a carpet to avoid scratches.
GEN222
Leveller 5/16"-18 x 15/16" Base,
1 1/8" Stem
X 6
Printed in Canada
Newland
120" & 140" Boat Shaped Boardroom Table
US
Global Industries Inc.
17 West Stow Road
P.O. 524
Marlton, NJ 08053
TEL. (856)596-3390
FAX. (856)596-5684
Attn.: Customer Service
PHILLIPS
FST066
Minifix 15 Cam,
Minifix Connecting Bolt
Housing, 12.5mm Length
X 28
d .
a
.
Leg x2
b . Modesty panel x2
c .
Inside Leg
d . Top x2
FST070
CST318
Transaction top
X 28
NL120BT
NL144BT
b .
a .
Notice to installers:
Open and assemble only one
product at a time to avoid
a potential mix up of parts
and hardware.
FST028
#8 x3/4 Pan HD.
Flat Plate
X 2
X 12
c .
N
02
AIN
Pg 1 of 4 Rev.00
