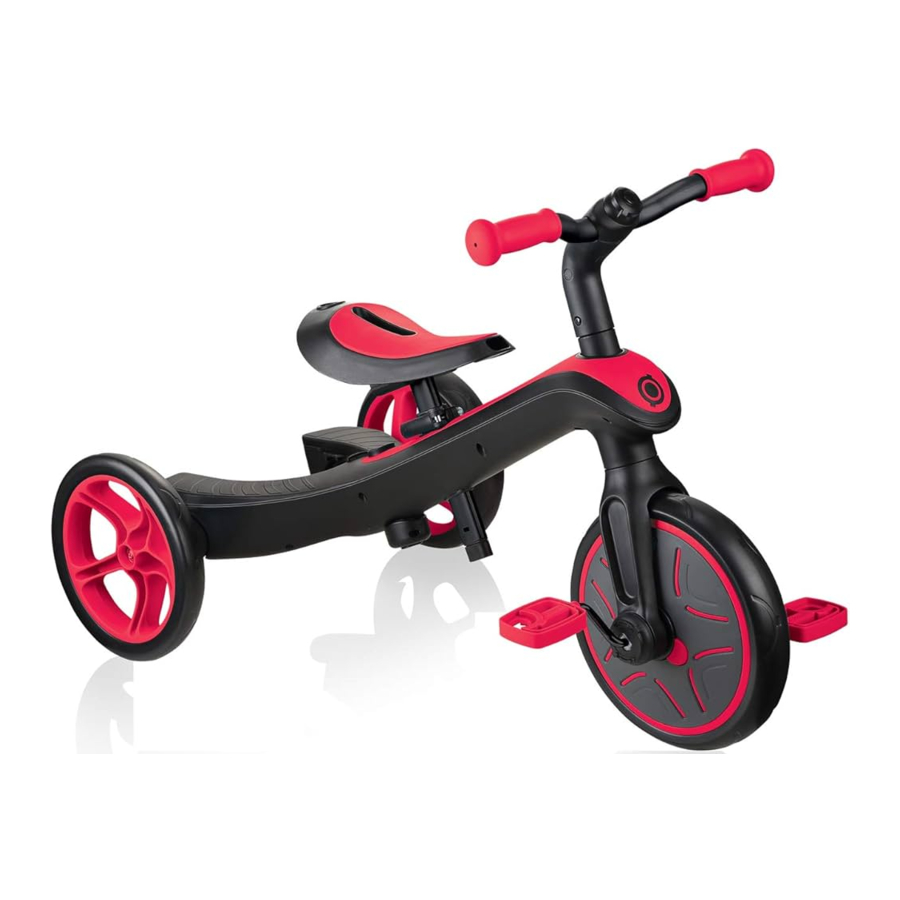

GLOBBER EXPLORER TRIKE Series Manual

Introduction

Please carefully read the instructions before assembling and using the product. Keep the instructions for future reference.
Be careful when unpacking and assembling the product.
This product must be assembled by a responsible adult.
Remove all the parts which are not necessary for play before giving the product to your child.
Warning! Do not step or stand on back of frame which will cause product overturned.
Tricycle mode: Warning! Not to be used by children over 36 months; insufficient strength to support.

How to assemble EXPLORER TRIKE 3in1

1. The front wheel's fork needs to be aligned with the frame of the trike; then insert the stem of the front wheel's fork into the frame.
2. Take the handlebars and align them with the front wheel by making sure the stem of the front wheel's fork slots into the handlebars' column. Make sure the handlebars are placed in the correct direction with the top column facing outwards, away from the seat. Push the handlebars down until you hear a click to securely fix them in place.
3. Turn the pedal locks of the front wheel in the direction of the unlocked symbol; place the pedals in the front wheel's slots. Turn the pedal lock in the direction of the locked symbol to secure the pedals in the front wheel. You may need to hold the opposite pedal lock to ensure that the pedal doesn't spin freely.
4. To install the rear wheels, you need to unscrew the knob at the end of the wheel assembly. The brakes of the rear wheels must be pointing inward when they are installed for all trike stages. Place the wheel in the hexagonal slot at the rear of the trike frame and ensure that the brake is upwards and doesn't touch the ground. Once the wheel is in the correct position, you need to re-screw the knob back into the wheel slot to ensure the wheel will remain securely in place.
5. To insert the saddle, you must first open the clamp and press the bottom spring-loaded button on the saddle stem. Then, push the saddle down until you hear a click. Close the clamp. The saddle is adjustable with 2 available heights (31cm; 34cm). The minimum insertion depth is where "MAX" is marked on the stem when placing the top spring-loaded button in the saddle's stem hole. This is the highest height of the saddle. The maximum insertion of the saddle is pushing the saddle down until the saddle's stem is all the way down. This is the lowest height of the saddle.
6. Take the footrest and slide it up the saddle stem. You must press the spring-loaded button at the bottom of the saddle stem; the footrest is secure once you hear a click and twist the knob under the footrest to 90 degrees. The footrest must be facing forwards, not backwards, to be in the correct position.

   Check footrest is securely locked before every use.
7. To assemble the parent handlebar, take the top part of the parent handle, where there is the black handle, and place it into the bottom shaft by pressing the spring-loaded button. There are 2 available heights on the parent handlebar (92cm; 96.5cm). Make sure to align the spring-loaded button with the holes; you must hear a click to ensure the handle is securely in place. To secure the parent handlebar to the trike, carefully place the shaft through the saddle's hole and into the hole on the trike's frame. Once you hear a click, the pole is secure.
   * To remove the parent handle, you must press the red button under the trike's frame; then release the shaft and carefully lift the parent handle out.

How to operate the freewheel mode

The front wheel has two modes of operation.

• Unlocked mode: when the pedals are turning independently from thefront wheel.
• Locked mode: when the pedals and the front wheel are connectedtogether and move as one.
• To put the front wheel in Locked mode, you need to align the spot on the red button to the arrows on the inner hub; press the red button on the locked symbol side until you hear a click.
• To put the front wheel in Unlocked mode, you need to align the spot on the red button to the arrows on the inner hub; press the red button on the unlocked symbol side until you hear a click.

Freewheel function is to be used only with the parent handle (Push bar).

Check that the push bar (parent handle) is locked in position before use.

Automatic freewheeling ensures the tricycle can be pushed safely while the child's feet rest on the pedals without the pedals turning.

How to operate the brakes

The following explanation is only applicable for EXPLORER TRIKE 3in1 guided trike mode.

• To operate the rear wheels' brakes, you need to push the rear brakes down by applying pressure with your foot. You must always use both rear brakes when you need to stop the tricycle from moving. The brakes are locked and the tricycle will remain stationary once you hear a click after pushing down both brakes.
• To unlock the brakes, you need to fully lift up both brakes with your foot. The tricycle is mobile once you hear a click after pushing up both brakes.
• The left brake controls the left-hand side rear wheel and the right brake controls the right-hand side rear wheel.

Transform Guided trike to Training trike

• When the child is old enough to pedal, take off the push bar, and put the front wheel in locked mode to allow pedalling.
• Press the red button at the bottom of the frame to remove the parent handle.
• Remove the footrest by turning the knob 90 degrees, then press the spring-loaded button on the left-side of the saddle stem.

Transform Training trike to Balance bike

• Unscrew the knob at the end of the wheel assembly. Place the wheel inside of the Trike frame. Slide the wheel in the hexagon shaped hole and screw back the knob onto the wheel. Repeat the procedure for the other wheel. Make sure the brakes do not touch the ground.
• Put the pedal lock of the front wheel in the unlocked position. Remove the pedals from the wheel; you can store them at the rear of the saddle.
•
  Protective equipment should be worn. Not to be used in traffic. Always wear safety equipment (helmet, elbow-pads, kneepads, gloves).
• Braking for walking bike: The product can be braked with the feet. The child can stop moving by stopping walking/running. Please take care that your child can always stop from the speed it produces and wears appropriate shoes.

General instructions of use

• Prior to use, make sure that the product has been assembled properly. Check all the connection elements: steering column and footrest must be correctly adjusted and make sure that the locking mechanisms are securely locked. Check the product before the child rides to determine if there are any potentially hazardous parts or conditions.
• Children should be supervised by adult while riding this product. Special care should be taken to instruct children in safe riding.
• Do not use on the public highways, examples of safe riding area: To be used on flat and no gravel areas (playground, Public Square)
• Do not use this product near a staircase, on a slope, on a road or on a wet surface.
• More mobility child grows; the more potential hazards increase. At home, be sure to remove frames or mirrors hung too low and could break, and any object that could fall in the event of impact. Corner table can also be a danger.
• Do not allow more than one rider on the product at a time.
• Be sure the child wears clothes and appropriate footwear when using product.
• Be sure the rider keeps both hands on the handlebars for proper control.
• Do not allow the rider to wear anything that obstructs hearing and visibility, or which impairs the functioning of product.
• The product should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

Maintenance and security

• Security checks: check periodically the product to identify any loose or dislocated element particularly the wheels, pedals, seat and handlebars.
• Periodic cleaning will bring a good life. Wipe the product with a dry cloth if it has been soiled.
• Regularly check the condition of abrasion and avulsion.
• Regularly check that parts are not broken or damaged, if this happens, stop using this product.- Regular checks can prevent an accident.

Additional Info
For questions and inquiries please contact us at: contact@globber.com

Spare parts

To order spare parts for this product, please visit our website www.globber.com

TO AVOID SERIOUS INJURY: Continuous adult supervision required; never use near motor vehicles; never use near streets, swimming pools, hills, steps, or sloped driveways; Always wear shoes when using the product. Never allow more than 1 rider.
Adult assembley required. Choking hazard to children under the age of 3 year - contains small parts prior to assembly.

WARNING:

• Not to be used by children over the age of 5 years due to size limitation.
• Tricycle mode: Intended for children 10 months to 36 months. Walking bike mode: Intended for children 2 - 5 years.
• Maximum child's weight: 44 lbs. (20kg)
• Plastic bags can be dangerous. To avoid suffocation, Keep plastic bags away from babies and children.
• Instruct children on proper use of this product before allowing them to ride.
• This product is not to be used in a manner other than for which it is intended.
• This product is intended for outdoor domestic family use only.
• It is recommended that rider always wear a properly fitted helmet that complies with U.S. Consumer Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Do not step or stand on back of frame which will cause product overturned.
• Do not attempt to modify the product. For help contact Globber USA consumer service. Importer: Globber USA - 50 Fountain Plaza, suite 1400, Buffalo, New York, 14202 USA.
