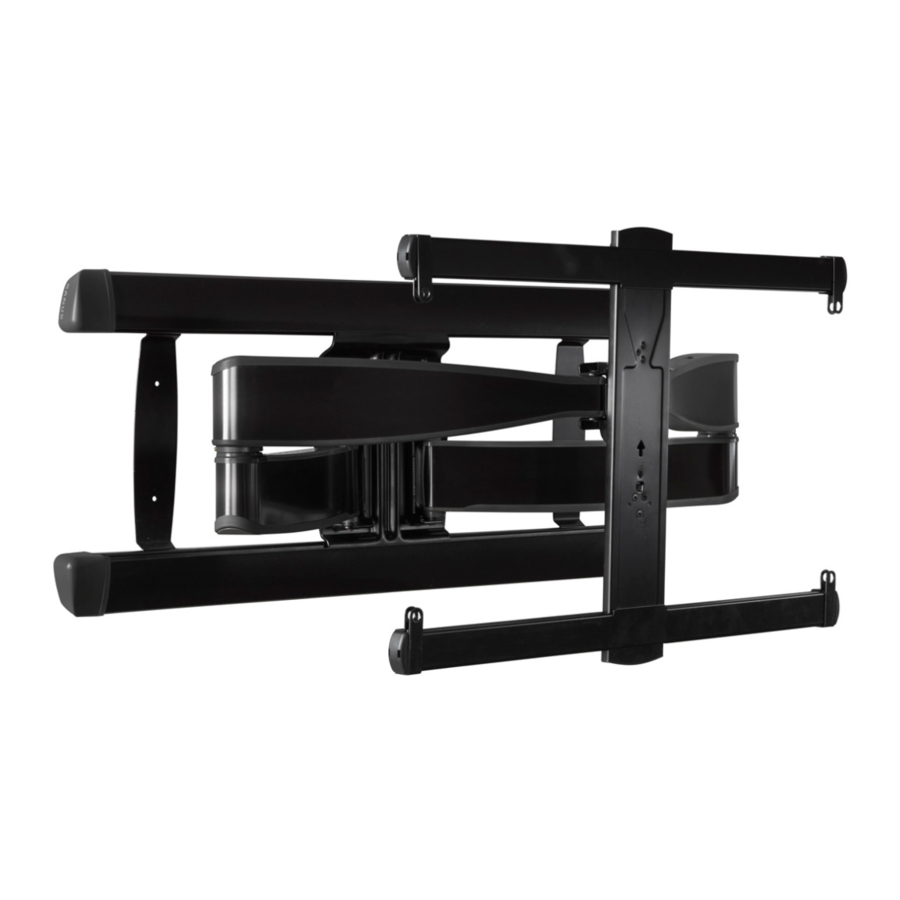

Sanus VLF728-B2, VLF728-S2, VLF728 Manual

Sanus VLF728-B2, VLF728-S2, VLF728 Manual

Also See for VLF728-B2:

Advertisement

Sanus VLF728-B2, VLF728-S2, VLF728 Manual

WE'RE HERE TO HELP


Want to watch a video that shows how easy this DIY project will be?
Watch it now at: SANUS.com/2793


Get it right the first time. HeightFinder™ shows you where to drill.
Check it out at: SANUS.com/2567


Our install experts are standing by to help.
Call us at:
US: 800-359-5520
EMEA: +31 (0) 495 580 852
UK: 0800 056 2853

Before you begin


Remove the stand from your TV — if attached.


Install any accessories you may have purchased — if they require the TV to be removed from the wall for assembly. The TV is removable for future accessory purchases.


Protect the face of your TV when laying it down for installation.

Tools Needed

Attach TV Bracket to TV


This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
informationNOTE: Not all hardware included will be used.

  1. Parts and Hardware
    Attach TV Bracket to TV - Step 1
    1. Select TV Screw Diameter
      Only one screw size fits your TV.

      informationNOTE: If your TV included inset spacers or adapters, use them UNDER the mount hardware.
    2. Select TV Screw Length and Spacers
      1. NO SPACER
        Flat Back TV [TV brackets lay flat on your TV]
        Use short TV screws . Spacers not needed.

      2. SPACER NEEDED
  • Flat Back TV with Extra Space Needed [for deep inset holes or cable interference]
  • Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]
    Use long TV screws and spacers to create extra space between the TV and TV bracket.

    Attach TV Bracket to TV - Step 2


Verify adequate thread engagement with your screw , washer spacer combination AND TV bracket .

  • Too short will not hold your TV.
  • Too long will damage your TV.
  1. Attach TV Brackets to Your TV
    1. MEASURE
      Attach TV Bracket to TV - Step 3
    2. ADJUST TO WIDTH W
      Attach TV Bracket to TV - Step 4
      1. ASSEMBLE FOR HEIGHT H
        For height 300 mm or less

      2. ASSEMBLE FOR HEIGHT H
        For height greater than 300 mm

        Attach TV Bracket to TV - Step 6
    3. LOOSELY ASSEMBLE
      Attach TV Bracket to TV - Step 7
    4. CENTER
      Attach TV Bracket to TV - Step 8
    5. SECURE ASSEMBLY
      Attach TV Bracket to TV - Step 9
    6. TIGHTEN ALL SCREWS
      Attach TV Bracket to TV - Step 10

Attach Wall Plate to Wall


This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
informationNOTE: Not all hardware included will be used.

Parts and Hardware
Parts and Hardware

Attach Wall Plate

Wood Stud Installation

Avoid potential personal injury or property damage!
Wood Stud Installation - Step 1

  • Drywall covering the wall must not exceed 5/8 in. (1.5 cm)
  • Minimum wood stud size: nominal 2 x 4 in. (5.1 x 10.2 cm) actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
  • Minimum horizontal space between fasteners: 16 in. (40.6 cm)
  • Stud centers must be verified
  1. LOCATE
  2. VERIFY
  3. MARK
  4. POSITION TEMPLATE
    informationTIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/2567].
    Wood Stud Installation - Step 2
  5. DRILL

    Be sure you drill into the CENTER of the stud.
    Wood Stud Installation - Step 3
  6. OPEN COVERS
    Wood Stud Installation - Step 4
  7. SECURELY TIGHTEN

    Avoid potential personal injury or property damage! All four lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
    Wood Stud Installation - Step 5

Solid Concrete or Concrete Block Installation

Avoid potential personal injury or property damage!

  • Mount the wall plate directly onto the concrete surface
  • Minimum solid concrete thickness: 8 in. (20.3 cm)
  • Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
  • For concrete applications, arm (STEP 3) must remain centered (horizontally) in wall plate . Keep this in mind when selecting the wall plate location


Avoid potential personal injury or property damage!
warningInstall lag bolts into the slots AS SHOWN.
Three (3) lag bolts at the top.
One (1) lag bolt at the bottom.

  1. POSITION TEMPLATE
    informationTIP: To calculate your precise wall plate location, check out our HeightFinder at sanus.com [www.sanus.com/2567].
    Solid Concrete or Concrete Block Installation - Step 1
  2. DRILL

    Never drill into the mortar between blocks. Never drill into the mortar between blocks.
    Solid Concrete or Concrete Block Installation - Step 2
  3. INSERT

    Be sure the anchors are seated flush with the concrete surface.
    Solid Concrete or Concrete Block Installation - Step 3

Attach TV to Wall Plate


Before starting assembly, verify this part is undamaged. If damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Parts and Hardware
Attach TV to Wall Plate - Parts and Hardware

Attach Arm Assembly to Wall Plate

  1. HANG
    HEAVY! You may need assistance with this step.

    Avoid potential personal injury or property damage!
    For CONCRETE APPLICATIONS:
    The arm assembly MUST remain centered in wall plate .
    informationNOTE: For WOOD STUD APPLICATIONS, the arm assembly can be slid anywhere along wall plate for optimal positioning of your TV.
    Attach Arm Assembly to Wall Plate - Step 1
  2. SECURE

    Avoid potential personal injury or property damage! Always make sure both locking screws are tightened, so the arm assembly is securely fastened to wall plate .
    Attach Arm Assembly to Wall Plate - Step 2
  3. CLOSE COVERS
    Attach Arm Assembly to Wall Plate - Step 3

Hang TV onto Arm Assembly

  1. HANG YOUR TV
    HEAVY! You may need assistance with this step.
    Hang TV onto Arm Assembly - Step 1
  2. ATTACH
    Hang TV onto Arm Assembly - Step 2
  3. SECURELY TIGHTEN

    Avoid potential personal injury or property damage! Always make sure your securement screw is tightened, so the TV is securely fastened to the arm assembly .
    Hang TV onto Arm Assembly - Step 3

Manage Cables

  1. ROUTE CABLES

    Pull arm to its full extension, to leave enough slack and prevent stretching the cables when the arms are moved.
    Manage Cables - Step 1
  2. ATTACH COVERS
    Manage Cables - Step 2

Adjustments


LEVEL ADJUSTMENT
LEVEL ADJUSTMENT


TILT ADJUSTMENT
TILT ADJUSTMENT
informationNOTE: If you do not intend to adjust the tilt for different viewing locations, you can tighten the tilt tension knob , to prevent unwanted movement. If needed, use hex key to tighten more firmly.

Your TV should adjust easily when moved, then stay in place. Your TV should adjust easily when moved, then stay in place. Adjust the tilt tension knob Adjust the tilt tension knob if your TV naturally tilts up or down.


TV LATERAL SHIFT

HEAVY! You may need assistance with this step.

Avoid potential injuries or property damage!
Do NOT adjust the arm position from center for concrete applications.
Arm MUST remain centered in wall plate for all concrete applications!

For wood stud applications ONLY:

  1. Remove the TV.
    TV LATERAL SHIFT - Step 1
  2. Open cover strips .
    TV LATERAL SHIFT - Step 2
  3. Loosen butdo not remove, locking screws .
    TV LATERAL SHIFT - Step 3
  4. Slide arm to the desired position.
    TV LATERAL SHIFT - Step 4
  5. Tighten locking screws .

    Avoid potential personal injury or property damage! Always make sure both locking screws are tightened so the TV is securely fastened to wall plate .
    TV LATERAL SHIFT - Step 5
  6. Close the cover strips ,then hang your TV (see STEP 3).
    TV LATERAL SHIFT - Step 6


EXTEND / RETRACT -- ONLY IF NECESSARY
EXTEND / RETRACT -- ONLY IF NECESSARY

Avoid potential personal injury or property damage! DO NOT remove screws , only turn enough for slight adjustment.
ONLY if needed, adjust the extension/retraction arm tension with screw using hex key .


REMOVE THE TV

HEAVY! You may need assistance with this step.
REMOVE THE TV

  1. Disconnect all cables from the TV.
  2. Remove securement screw .
  3. Pull down on the release cord to release the TV.
  4. Carefully lift the TV from arm assembly .


REMOVE THE ARM ASSEMBLY
REMOVE THE ARM ASSEMBLY

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you're comfortable with this easy install process.
Check your TV owner's manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: [US]: 800-359-5520 [EMEA]: +31 (0) 495 580 852 [UK]: 0800 056 2853.


Avoid potential personal injuries and property damage!

  • This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
    — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
  • This product is designed for INDOOR USE ONLY.
  • The wall must be capable of supporting five times the weight of the TV and mount combined.
  • Do not use this product for any purpose not explicitly specified by manufacturer.
  • Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit
(including accessories)
DO NOT EXCEED

If your TV (including accessories) exceeds this weight, this mount is NOT compatible.
Visit SANUS.com or call customer service to find a compatible mount.

Wall Construction
ONLY install on these acceptable wall types.
Unsure?
Call Customer Service

[US]: 800-359-5520
[EMEA]: +31 (0) 495 580 852
[UK]: 0800 056 2853

DO NOT install in drywall alone

Drywall alone will NOT hold the weight of your TV.
