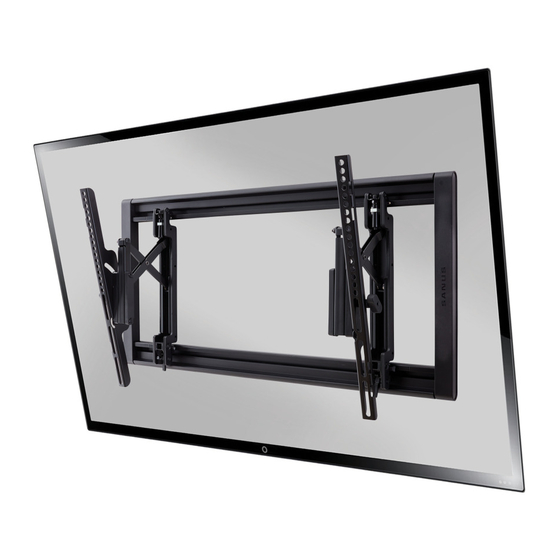

VLT7-B3
INSTRUCTION MANUAL
Texte français page 12
WE'RE HERE TO HELP
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2951
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/2566
Our US-based install experts
are standing by to help.
Call us at:
800-359-5520
Or, chat at:
SANUS.com/chatSP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sanus VLT7-B3
Summary of Contents for Sanus VLT7-B3
- Page 1 GET IT RIGHT THE FIRST TIME Follow this step-by-step VLT7-B3 instruction manual to INSTRUCTION MANUAL speed up your installation. Texte français page 12 WE’RE HERE TO HELP Want to watch a video that Get it right the first time. Our US-based install experts shows how easy this DIY HeightFinder™...
-
Page 2: Wall Construction
If your TV, plus accessories, weighs MORE (including accessories) than indicated, this mount is NOT compatible. (68.0 kg) DO NOT EXCEED Visit SANUS.com or call customer service to For Wood Stud Solid Concrete or For Steel find a compatible mount. -
Page 3: Before You Begin
Dimensions in. [mm] TV INTERFACE 23.6in 600mm 5.9in 150mm 15.7in 3.9in 400mm 100mm WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED 24.0in 610mm 7deg 31.3in 16.0in 796mm 406mm 12deg 15deg 15deg 15.1in 10.8in 28.7in 383mm 273mm 730mm SIMULATED 42" 6.8in FLAT SCREEN TV WITH 400 MM VESA 172mm... - Page 4 STEP 1 ATTACH TV BRACKET TO TV Parts and Hardware for STEP 1 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
- Page 5 1.3 Attach TV Bracket Assembly to TV POSITION SECURELY TIGHTEN NO SPACER SPACER NEEDED tilt tension knob TV brackets should be TIP: oriented to the outside edges. CAUTION: Brackets should be parallel with one another. STEP 2 ATTACH WALL PLATE TO WALL Parts and Hardware for STEP 2 WARNING: This product contains small items that could be a choking hazard if swallowed.
-
Page 6: Wood Stud Installation
/2566 7/32 in. (5.5 mm) To calculate your precise wall plate location, check out CAUTION: Be sure you drill into the CENTER of the stud. TIP: our HeightFinder at sanus.com [www.sanus.com/2566]. REMOVE TEMPLATE SECURELY TIGHTEN Open covers Close bottom cover... - Page 7 . Keep this in mind when selecting the wall plate location Min. 16 in. (40.6 cm) To calculate your precise wall plate location, check out TIP: TIP: our HeightFinder at sanus.com [www.sanus.com/2566]. DRILL REMOVE TEMPLATE 3 in. (7.6 cm) 3/8 in. (10 mm)
-
Page 8: Steel Stud Installation
1/2 in. (13 mm) To calculate your precise wall plate location, check out Be sure you drill into the CENTER of the stud. CAUTION: TIP: our Height Finder at sanus.com [www.san.us/2566]. SECURELY TIGHTEN INSTALL ANCHORS Open covers Close bottom... -
Page 9: Attach Tv To Wall Plate
HEAVY! STEP 3 You may need ATTACH TV TO WALL PLATE assistance with this step. EXTEND HANG CAUTION: Avoid potential personal CAUTION: Avoid potential personal injury or property damage! injury or property damage! For CONCRETE APPLICATIONS: TV brackets MUST remain centered in wall plate The TV brackets contain potential pinch points during operation. - Page 10 ADJUSTMENTS LEVEL To level your TV, turn the level RAISE LOWER adjustment screw on the top of either TV bracket to raise or lower that respective side of the TV. HEIGHT Adjust the height by turning the level RAISE LOWER adjustment screw on the top of both TV brackets...
-
Page 11: Removing The Tv
EXTEND RETRACT CAUTION: Avoid potential personal injury or property damage! The TV brackets contain potential pinch points during operation. Keep fingers away from pinch points when retracting the TV. (see arrows) SWIVEL LOCK HEAVY ! You may need REMOVING THE TV assistance with this step. -
Page 12: Avant De Commencer
68,0 kg Oui — Ce support n’est PAS compatible. sèches et des murs montants pèse-t-il plus Visitez le site MountFinder.Sanus.com ou appelez le +31 (0) 495 580 852 en béton plein ou porteurs (150 lb) (150 lb) (RU : 0800-056-2853) pour trouver un support compatible. - Page 13 VÉRIFIEZ LES BORDS DES MONTANTS MARQUEZ LE CENTRE DES MONTANTS POSITIONNEZ LE GABARIT CONSEIL : Pour calculer l’emplacement précis de la plaque murale, renseignez-vous sur notre HeightFinder sur le site sanus.com [www.sanus.com/2566]. PERCEZ DES TROUS AU CENTRE DES MONTANTS RETIREZ LE GABARIT SERREZ CORRECTEMENT ATTENTION : Évitez les risques de blessures corporelles ou de dommages matériels ! Ne pas trop serrer les boulons tire-fond...
- Page 14 . Gardez ceci à l’esprit lors du choix de l’emplacement de la plaque murale. POSITIONNEZ LE GABARIT CONSEIL : Pour calculer l’emplacement précis de la plaque murale, renseignez-vous sur notre HeightFinder sur le site sanus.com [www.sanus.com/2566]. PERCEZ LES TROUS RETIREZ LE GABARIT INSÉREZ LES CHEVILLES...
-
Page 15: Gestion Des Câbles
Français Gestion des câbles PÁGINA 9 Déplacez votre téléviseur sur différentes positions, selon les besoins pour fixer vos câbles, puis ajustez le téléviseur comme souhaité. Réglages PÁGINA 10 NIVEAU Pour mettre votre téléviseur à niveau, desserrez la vis de mise à niveau située au-dessus de chaque patte de fixation pour téléviseur afin de soulever ou d'abaisser le côté... - Page 16 Legrand n’assume aucune responsabilité quant à l’exactitude, l’exhaustivité ou la suffi sance des informations contenues dans ce document. ©2020 Legrand AV Inc. All rights reserved. SANUS is a division of Legrand. SANUS and the SANUS logo are registered trademarks.
