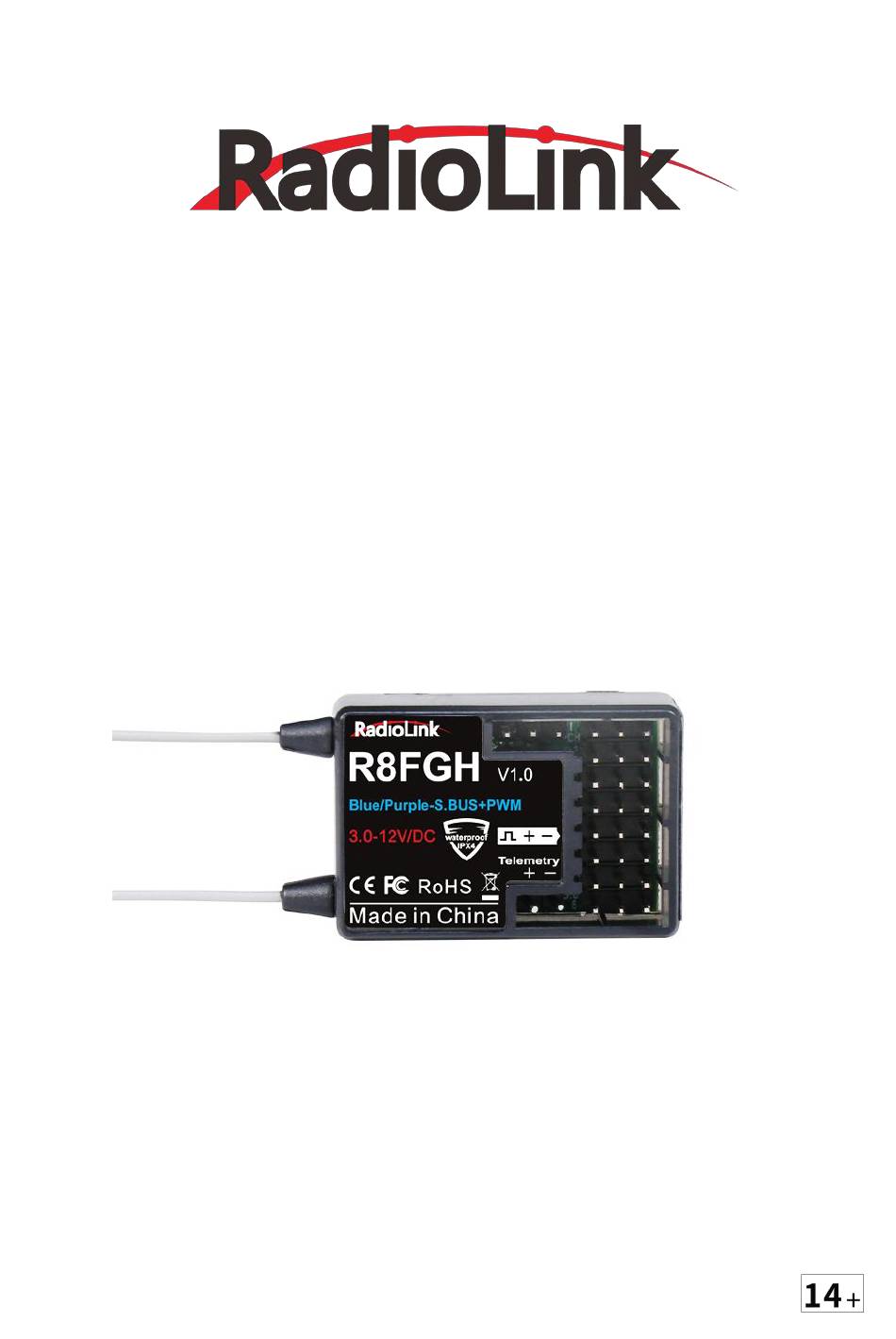

- Page 1 R8FGH V1.0 Instruction Manual...
- Page 2 7.2 LED Indicator Color in Different Working Modes ................10 8. Gyro Introduction ............................10 8.1 Gyro Function ............................. 10 8.2 Gyro Enable ............................10 8.3 Gyro Reverse ............................10 8.4 Gyro Sensitivity Adjustment ......................10 9. R8FGH Specifications ..........................11 10. Note of Antenna Installation ........................12...
- Page 3 2. Receiver Protocol Selection If you are using R8FGH with RC8X transmitter, please select correct receiver protocol in RC8X first and then bind them. Enter the "Basic Menu" - "Receiver setting" of RC8X and then select FHSS V1 or FHSS V2 protocol (as shown below).
- Page 4 (2) Put the transmitter and the receiver close to each other (about 60 centimeters). (3) Turn on both the transmitter and the receiver, and then the LED of R8FGH will start flashing slowly. (4) There is a black binding button (ID SET) on the side of the receiver. Press the button for more than 1 second and release, the LED will flash quickly, indicating the binding process is ongoing.
- Page 5 2. The close distance between the transmitter and receiver may cause a signal block, which leads to unsuccessful binding or signal loss. After the binding is successful, if RC8X and R8FGH receiver are too close (for example, within 60 centimeters), the signal may also be lost because of signal block. Bring RC8X transmitter and R8FGH receiver farther apart, the signal loss will disappear automatically.
- Page 6 Note: R8FGH is the receiver with dual antenna. When the distance between the transmitter and the R8FGH is 60 centimeters, it is normal that RSSI value is within the range of 0 to -30dBm. The closer the value is to 0, the stronger the signal is. The range of RSSI value of RadioLink transmitters is from 0 to -99dBm.
- Page 7 R8FGH as below pic shown. No extra module is needed. Attention: 1. Reverse polarity protection circuit design for all 8 channels of R8FGH ensures vital components are protected from a reverse polarity connection. But, the JST connector which is packed with R8FGH for connecting to the battery cannot reverse polarity connect, or it will lead to the wrong voltage value telemetry.
- Page 8 6. Subsidiary ID RC8X can bind with multiple receivers. When RC8X and multiple receivers have been bound successfully, and RC8X and all successfully paired devices are turned on at the same time. There are two ways to use them: 1. When Subsidiary ID function is turned off, RC8X can control multiple devices at the same time. 2.
- Page 9 7. Working Modes R8FGH has a built-in gyroscope, which can output not only PWM signals but also SBUS signals. There are four working modes, including ordinary PWM mode, SBUS mode, Gyro mode, and Gyro + SBUS mode. The channel signal corresponding to each mode is as follows:...
- Page 10 The gyro function of R8FGH is turned off by default. Since the integrated gyro in R8FGH will self-check, it is important to keep R8FGH still when powering it on. Red LED is the gyro status indicator . When the red LED off means NO gyro. Press the binding button three times (intervals of less than 1 second), the red LED will flash three times, indicating that gyro is enabled.
- Page 11 Percentage is displayed when sensitivity is adjusted while the bigger percentage means higher sensitivity. If the VR rotary switch is set with other function, MODE can be changed to STD in GYRO setting of the menu to adjust gyro sensitivity with buttons Dec(-) and Inc(-). 9. R8FGH Specifications R8FGH Receiver Dimension L*W*H =35*24*13.5mm (1.38"*0.94"*0.53")
- Page 12 (1) Please test RSSI (Received Signal Strength Indicator) before operating models. For methods on how to test it, please refer to https://www.radiolink.com/newsinfo/561239.html (2) Please check the receiver antenna and transmitter antenna before operating models. The gray line on receiver is coaxial cable, while the transparent line with a length of about 4-5 centimeters at the top is antenna, as shown below.
- Page 13 Facebook Messenger If the above information cannot solve your problem, you can also send emails to our technical support: after_service@radioLink.com.cn This content is subject to change. Download the latest manual of R8FGH from https://www.radiolink.com/r8fgh_manual Thank you again for choosing RadioLink product.
