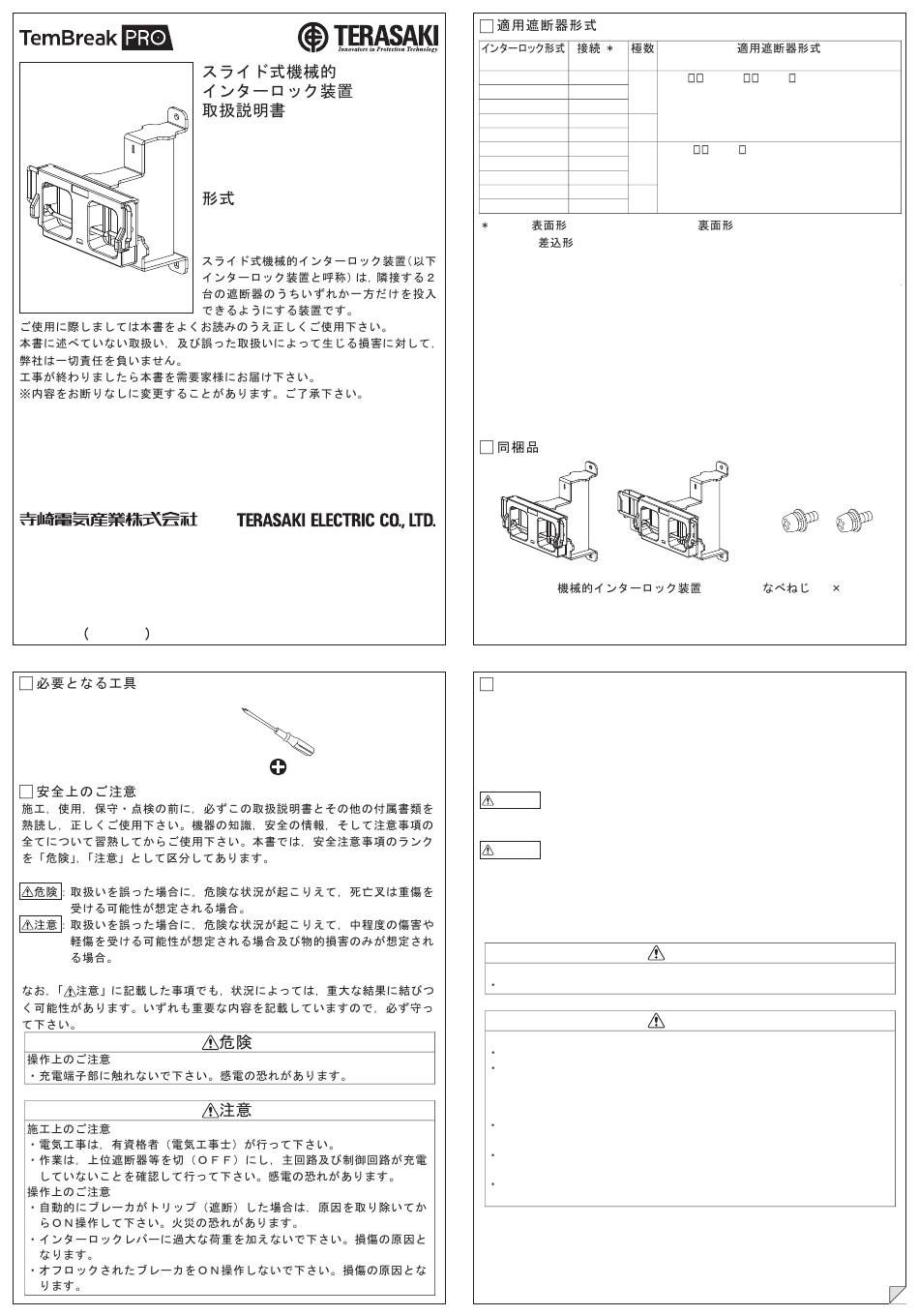

TERASAKI TemBreak PRO TPMS16S Installation

The slide mechanical interlock device allows only one breaker to be closed at one time.
Please read these Instructions carefully to ensure correct use of the Device. The
Manufacturer assumes no responsibility for damages resulting from non-application
or incorrect application of the instructions provided herein.
This manual is to be delivered to the user after completion of the installation work.
*The contents of this manual may be subject to change without notice.
〒547-0002
大阪市平野区加美東6 – 13 – 47
TEL 06 – 6791 – 2756
FAX 06 – 6791 – 2732
http://www.terasaki.co.jp
kiki-info@terasaki.co.jp
2G1483SAA KRB-0947
Assembly Tools
3
4
Slide Mechanical
Interlock Device
Instruction Manual
(Types): TPMS16S
TPMS25S
6-13-47 Kamihigashi, Hiranoku, Osaka
547-0002, Japan
TEL +81-6-6791-2763
FAX +81-6-6791-2732
http://www.terasaki.co.jp
int-sales@terasaki.co.jp
Applicable Breaker Type
1
1
Interlock type Connections Poles
TPMS163SF FC/RC
TPMS163SP PMB 3
TPMS163SC PMC
TPMS164SF FC/RC
4
TPMS164SP PMB
TPMS253SF FC/RC
TPMS253SP PMB 3
TPMS253SC PMC
TPMS254SF FC/RC
4
TPMS254SP PMB
1: FC= Front connected, RC=
PM*= Plug-in
Packaged Items
2
3P
Mechanical Interlock Device
Safety Notices
4
Be sure to read these Instructions and other associated documents
accompanying the product thoroughly to be familiarize yourself with the
product handling, safety information, and all other precautions before
mounting, using, servicing, or inspecting the product.
In these Instructions, safety notices are divided into "Warning" and "Caution"
according to the hazard level:
Warning :A warning notice with this symbol indicates that neglecting the
suggested procedure or practice could be fatal or result in
serious personal injury.
Caution :A caution notice with this symbol indicates that neglecting the
suggested procedure or practice could result in moderate or
slight personal injury and/or property damage.
Note that failing to observe caution notices could result in serious
injury/damage in some situations. Because safety notices contain important
information, be sure to read and observe them.
Operation Precautions
Never touch live terminals. Doing so may result in electric shock.
Installation Precautions
Installation work must be performed by competent persons.
Prior to commencing any work on the product, open an upstream circuit
breaker or the like to isolate all sources of power/voltage. Doing so may
result in electric shock.
Operation Precautions
When the breaker trips open automatically, remove the cause; then close
the breaker. Otherwise, a fire could result.
Do not apply excessive force to the interlock Lever. Otherwise, damage
may occur.
Do not attempt to force an interlocked breaker into the closed position.
Otherwise, damage may occur.
Applicable breaker type
PS50- , PS125- , P160
PS250- , P250
Rear connected,
4P
M4 10 2pcs.
Pan Head Screws
Warning
Caution
