Pulsar DC/DC10SE Quick Start Manual

 The DC/DC voltage- step up / step down converter with
adjustable output voltage
 Example of use: increasing voltage from 9,5V to 12V DC or
lowering voltage from 16V to 9V DC
 The input voltage range: 9,5÷16V DC
 The output voltage range: 5÷15V DC
 The maximum load current 1A (12W)
 The PSU technical output indicating converter failure
triggered by:
 Short-circuit of the output
 Output overload

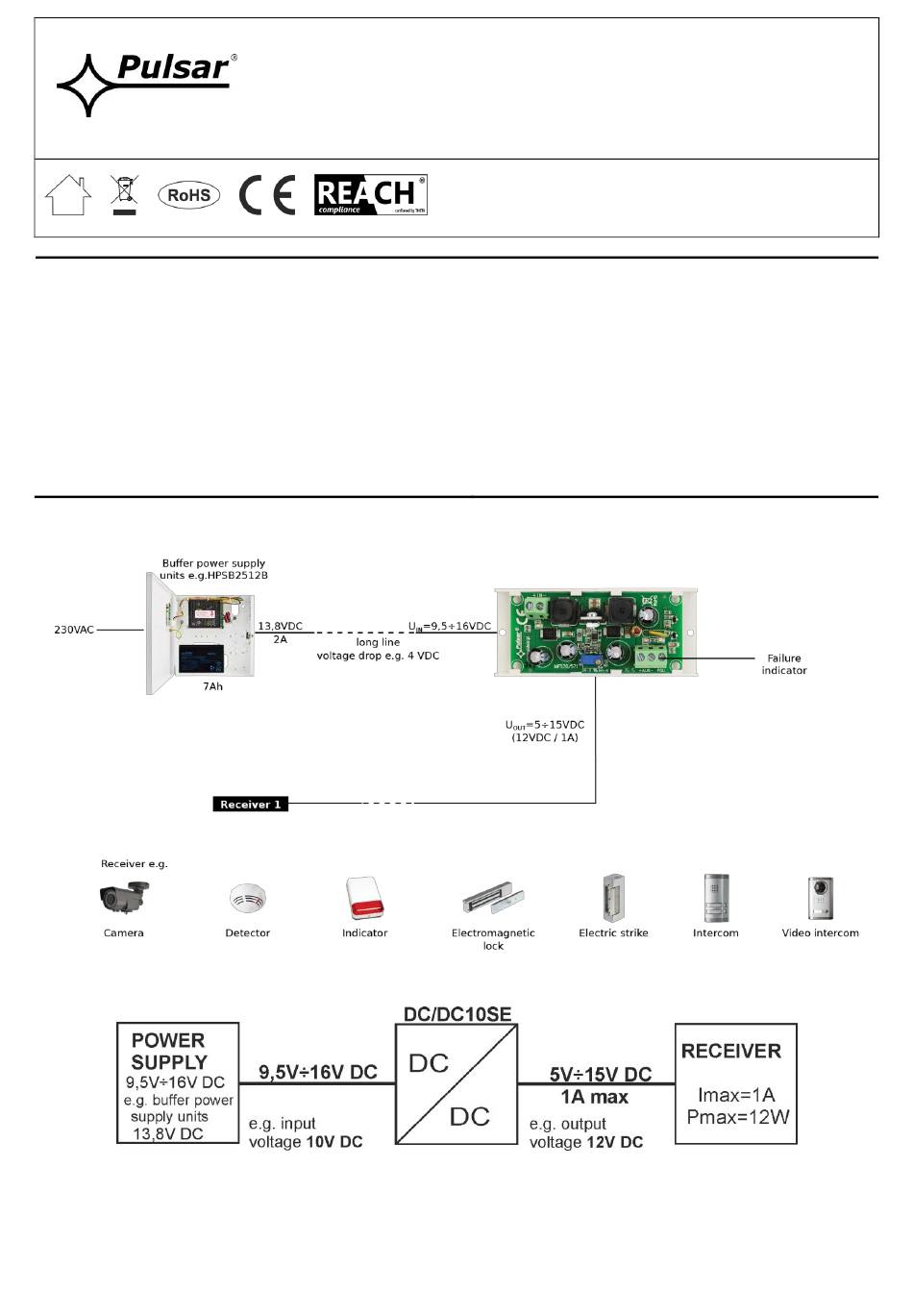

Example of use of the DC/DC10SE step up / step down converter with adjustable output voltage.
DC/DC 1A Step up / step down DC/DC converter with
adjustable output voltage
The module's features:
Schematic diagram of the converter operation.
Adjustment of the converter output voltage: 5V÷15V DC, 1A max.
1
DC/DC10SE
v.1.0
Edition: 2 from 15.01.2016
Supercedes the edition: 1 from 26.08.2015
 Protections:
 Short-circuit protection SCP
 Overload protection OLP
 High efficiency: 82%
 Optical LED indication
 Warranty – 2 years from the production date
 Mounting:
 Mounting strip with adhesive tape
 Mounting screws
EN**
