AirTurn BT500S-6 Quick Start Manual

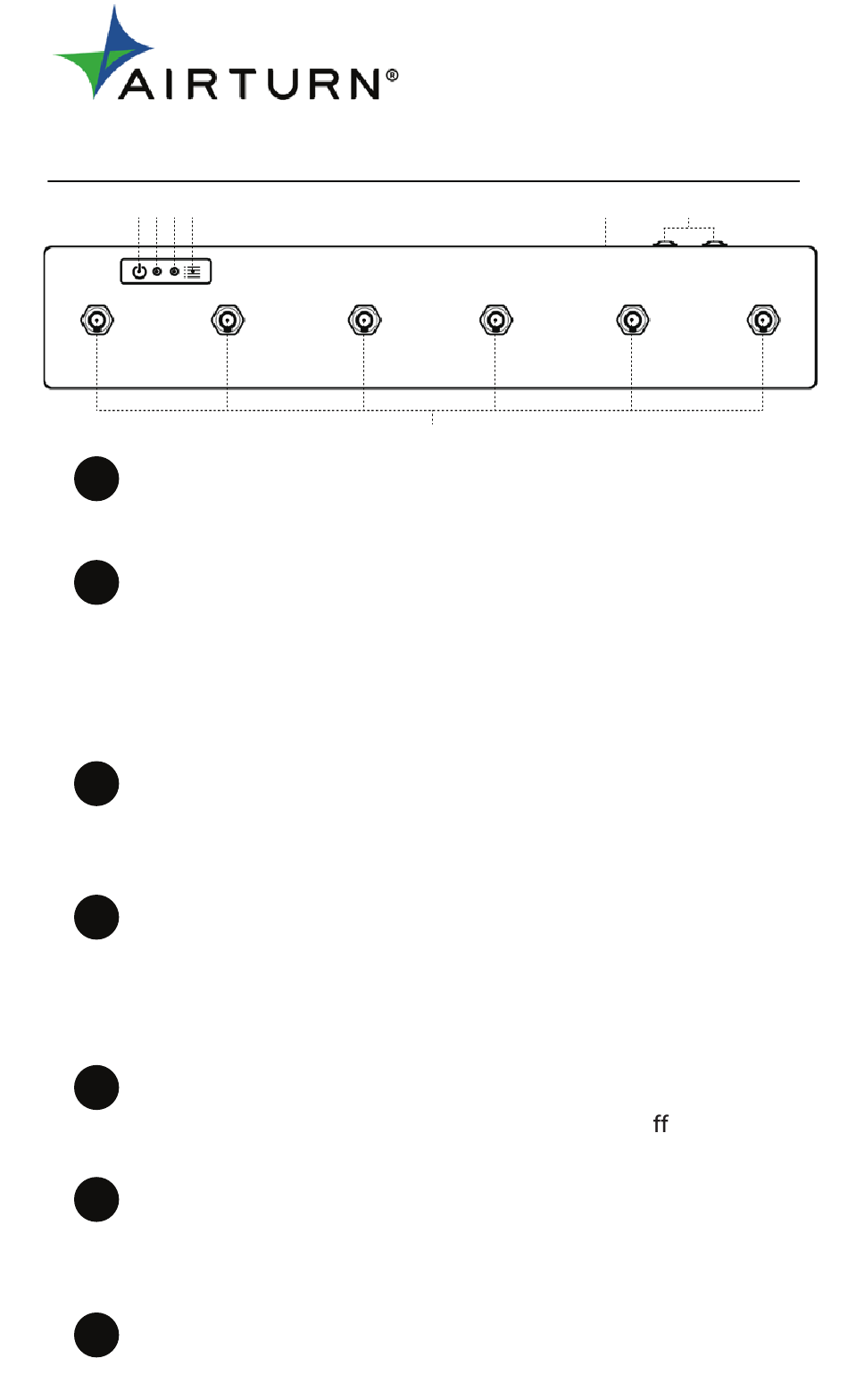

Product Overview
A B C D
Power Button / Virtual Keyboard
A
Press and hold to power your pedal ON or OFF.
Quick press to show/hide virtual keyboard.
Power Indicator (displays when powered ON)
B
Full: unlit
Drained: quick flash (three times)
Low: slow flash (once per 3 seconds)
Charging: steady flash (once per second)
Charged: solid
Bluetooth Indicator
C
Seeking: rapid flash (twice per second)
Connected: steady flash (once per 3 seconds)
Sending: solid (when switch is pressed)
Mode Button
D
Your pedal is set to Mode 2 by default.
Hold the button to switch between modes. Release
when the number of flashes equals the desired mode.
Reference mode chart in user manual.
E Foot Switches
The switches control the app functions. Di erent
actions can be assigned with the AirTurn Manager app.
Power Port
F
USB Charging requires a 5v/2A USB charging block
and the included charging cable. May also use a
center negative, 9v power supply (not included).
G
Expression Ports
Analog inputs for variable control switches.
QUICK START GUIDE
E
F G
