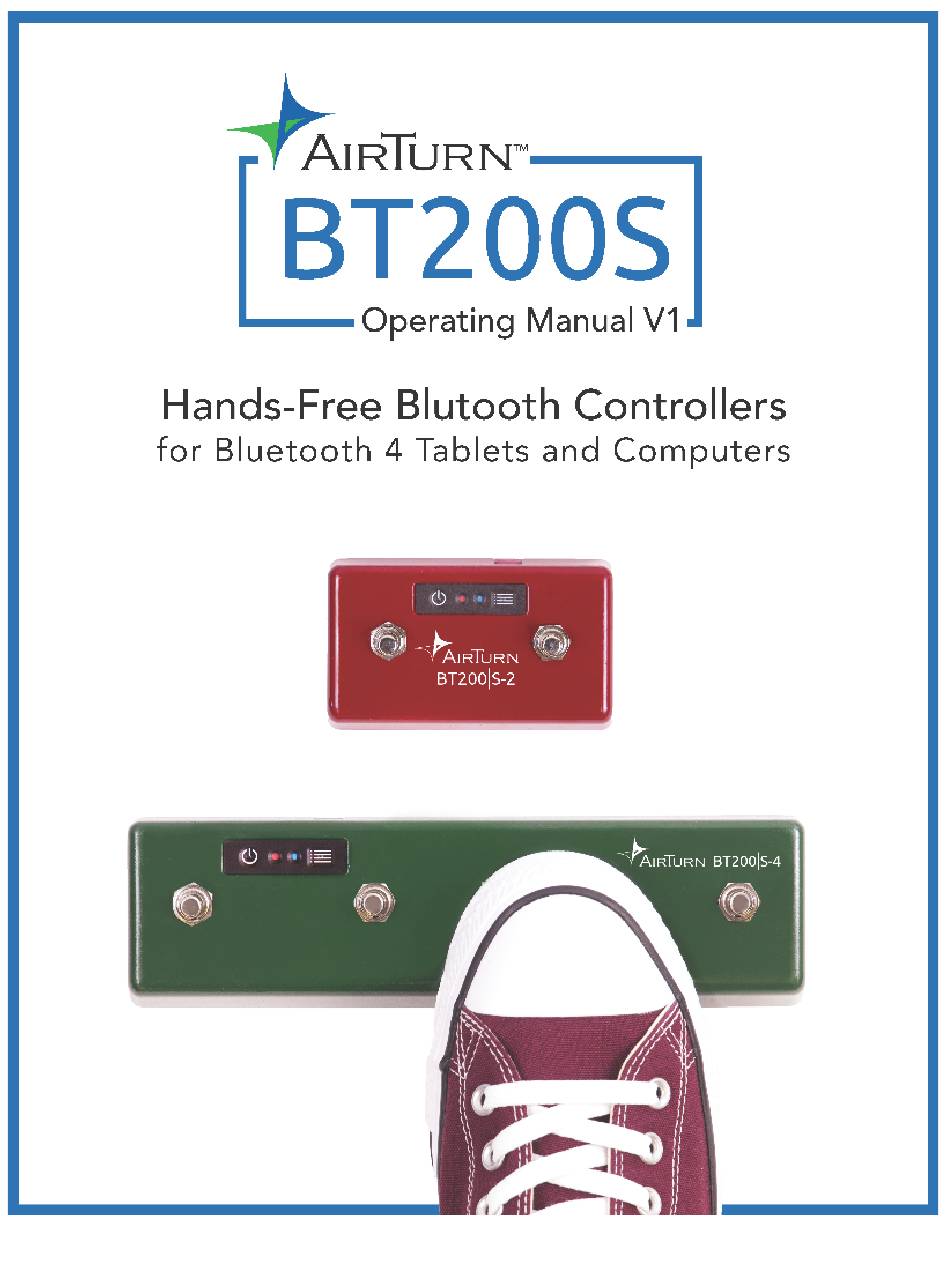

AirTurn BT200S Operating Manual

AirTurn BT200S Operating Manual

Hands-free bluetooth controllers for bluetooth 4 tablets and computers
Hide thumbs Also See for BT200S:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT200S and is the answer not in the manual?

Questions and answers

Summary of Contents for AirTurn BT200S

  • Page 2: Table Of Contents

    CONTENTS Before Turning on Your BT200S ........4 BT200S Controls ..............5 Power ..................5 Connecting and Pairing ............6 Open and Closed Pairing ............. 6 Open Pairing ..............6 Closed Pairing ..............7 Reset Pairing ..............7 Switching Between Pairing Methods ........7 Pairing in AirDIRECT MODE 1 .........
  • Page 3 Warranty ................14 Radio Information..............15 Recycling and Disposal ............16 Trademarks ................16...
  • Page 4: Before Turning On Your Bt200S

    BT200S provides a myriad of uses. BEFORE TURNING ON YOUR BT200S The BT200S works with most Bluetooth 4 devices. This includes iPad 3 and later, iPhone 4S and later, and most devices running Android 4.3 or later with Bluetooth 4.

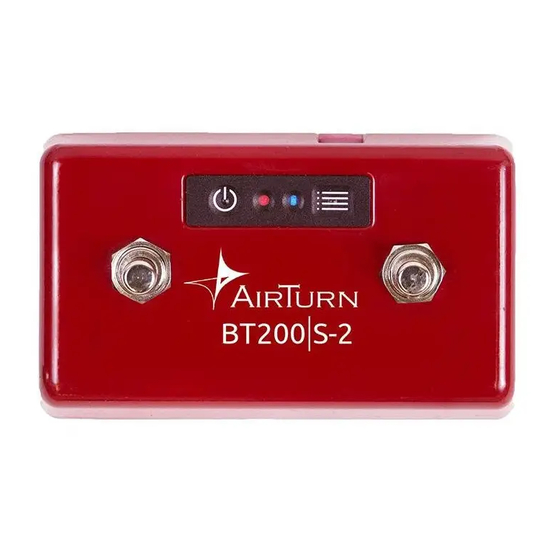

  • Page 5: Bt200S Controls

    ON - Press and hold the Power Button for one second and the LEDs flash. The blue LED will begin to blink 2 times per second until pairing is started. OFF - Press and hold the Power Button on the BT200S until the red and blue LEDs turn off.
  • Page 6: Connecting And Pairing

    OPEN PAIRING This is the new way in which BT200S devices pair and is the same way that almost all Bluetooth devices pair. In Open Pairing you do not need to delete the pairing to connect to another device so you can easily connect your BT200S to your iPad, smartphone or computer.
  • Page 7: Closed Pairing

    BT200S on a device, restart the Bluetooth and attempt to re-pair with the BT200S. CLOSED PAIRING This method locks one BT200S to one tablet, phone or computer. Use this method if you only intend to be connected to one tablet, phone or computer. Also, use this method if you are in an ensemble with other players using AirTurn devices.
  • Page 8: Pairing In Airdirect Mode 1

    Open your devices Bluetooth Setup dialog: iOS – Select Settings > Bluetooth and turn on the Bluetooth if it is off. When the BT200S is discovered, it will appear in the list of devices. Tap on the selection. A dialog box will then appear. Tap on Pair.
  • Page 9: Modes

    MODES There are seven modes available on your BT200S. Each mode sends a different signal for each pedal. The BT200S is set to MODE 2 by default. You can also customize MODES 2-6 with the AirTurn Manager. Switch 1 Switch 2...
  • Page 10: Changing The Mode

    CHANGING THE MODE Turn on the BT200S. Press and hold the MODE button. The red LED will flash once per second from 1 to 7 flashes. The number of flashes corresponds to the MODE number. Be sure to count the flashes.
  • Page 11: Power Consumption

    POWER CONSUMPTION The BT200S uses an idle timeout function to conserve power. After two hours of inactivity when powered on and connected, the BT200S will power down automatically. The timer is reset when any button is pressed. You can change this time out period or turn it off completely using the AirTurn Manager software.
  • Page 12: Led Indications

    Solid blue Pedal pressed AIRTURN MANAGER To change the configuration of your BT200S and update its firmware to the latest available, download the AirTurn Manager App from the Apple App Store or Google Play Store. It is available for iPad, iPhone, most Android devices and Mac computers.
  • Page 13: Unit Identification

    V2.1.0 refers to the firmware number. ABCD refers to the MAC address. This is helpful if there are many BT200S units in the same location. Your MAC address will always be the same so you can easily identify your unit. You will find your specific MAC address labeled on the bottom of your BT200S at the end of the serial number.
  • Page 14: Warranty

    Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall AirTurn be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs...
  • Page 15: Radio Information

    RADIO INFORMATION • Bluetooth 4.0 low energy radio • Transmit power: +0 dBm • TX peak current: 18.2 mA • Frequency 2.402GHz to 2480GHz Approximate Range: 33 feet (10 Meters) subject to orientation and other factors. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...
  • Page 16: Recycling And Disposal

    MIC Japan certification of the end product. KCC (Korea) BLE113 has type certification in Korea with certification number KCC-CRM- BGT-BLE113. AirTurn also holds unintended emissions testing on file for FCC/CE RECYCLING AND DISPOSAL Electronic components and construction comply with RoHS and REACH standards.
  • Page 17 AirTurn, BT200S and its respective logos are trademarks of AirTurn, Inc. Check out other great products from AirTurn including tablet holders, portable tablet stands and accessories.
  • Page 19 888-247-1223...
