Summary of Contents for AirTurn PED500

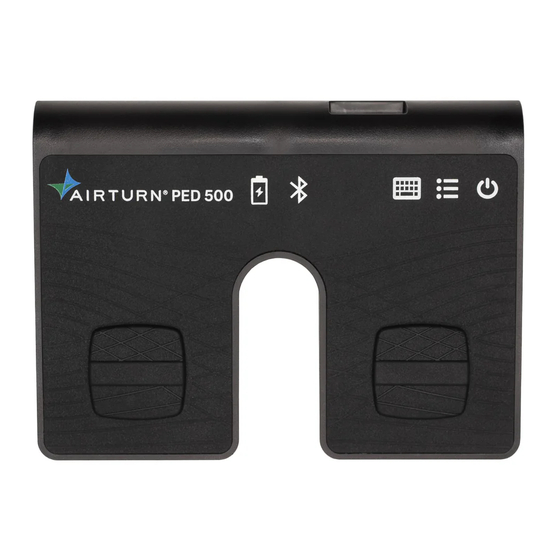

- Page 1 PED500 HANDS-FREE BLUETOOTH CONTROLLER for devices with Bluetooth 4 and higher Operating Manual...
-
Page 3: Table Of Contents
CONTENTS Before Turning on Your PED500..........5 Power ..................6 MODES ................... 7 Changing the MODE ............8 Connecting and Pairing ............9 Open and Closed Pairing ............. 9 Open Pairing ..............9 Closed Pairing ............... 10 Reset Pairiing ..............10 Switching Between Pairing Methods ........ - Page 4 Care of Your PED500 ............15 Warranty ................15 Radio Information..............16 Recycling and Disposal ............18 Trademarks ................18...
-
Page 5: Before Turning On Your Ped500
PED500 provides a myriad of uses. BEFORE TURNING ON YOUR PED500 The PED500 works with most Bluetooth 4 devices. This includes iPad 3 and later, iPhone 4S and later, and most devices running Android 4.3 or later with Bluetooth 4. -
Page 6: Power
ON - Press and hold the Power Button for one second and the LED’s flash. The blue LED will begin to blink 2 times per second until pairing is started. OFF - Press and hold the Power Button on the PED500 until the red and blue LEDs turn off. -
Page 7: Modes
MODES There are seven modes available on your PED500. Each mode sends a different signal for each pedal. The PED500 is set to MODE 2 by default. (You can also customize MODES 2-6 with the AirTurn Manager.) MODE 1: AirDirect This mode is app specific. -
Page 8: Changing The Mode
MIDI control for sending basic MIDI commands to your app. Support for Bluetooth MIDI required and special setup for your tablet or computer may be required. MIDI commands may be setup using the AirTurn Manager. More detailed instructions available online. CHANGING THE MODE Turn on the PED500. -
Page 9: Connecting And Pairing
Open pairing is the default method. OPEN PAIRING This is the new way in which PED500 devices pair and is the same way that almost all Bluetooth devices pair. In Open Pairing you do not need to delete the pairing to connect to another device so you can easily connect your PED500 to your iPad, smartphone or computer. -
Page 10: Closed Pairing
If you connect to more than 8 devices, the next pairing will delete the earliest pairing. If you delete or “forget” the pairing of the PED500 on a device, restart the Bluetooth and attempt to re-pair with the PED500. CLOSED PAIRING... -
Page 11: Switching Between Pairing Methods
Open your devices’ Bluetooth Setup dialog: iOS – Select Settings>Bluetooth and turn on the Bluetooth if it is off. When the PED500 is discovered, it will appear in the list of devices. Tap on the selection. A dialog box will then appear. -
Page 12: Power Consumption
To turn on the virtual keyboard in iOS, put the cursor into a text box and press the Keyboard Button on the PED500. Both LEDs will flash once to signify that the button has been pressed. The button will only work in Modes 2-6. Virtual... -
Page 13: Recharging The Battery
Solid blue Pedal pressed AIRTURN MANAGER To change the configuration of your PED500 and update its firmware to the latest available, download the AirTurn Manager App from the Apple App Store or Google Play Store. It is available for iPad, iPhone, most Android devices and Mac... -
Page 14: Unit Identification
V2.1.0 refers to the firmware number. ABCD refers to the MAC address. This is helpful if there are many PED500 units in the same location. Your MAC address will always be the same so you can easily identify your unit. You will find your specific MAC address labeled on the bottom of your PED500 at the end of the serial number. -
Page 15: Care Of Your Ped500
• Do not get the PED500 wet or place in direct sunlight for extended periods of time. • Do not open the unit other than to replace the battery, as there are no user serviceable parts. -
Page 16: Radio Information
Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall AirTurn be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs... - Page 17 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 18: Recycling And Disposal
AirTurn also holds unintended emissions testing on file for FCC/CE RECYCLING AND DISPOSAL Electronic components and construction comply with RoHS and REACH standards. Packaging is recyclable. Please recycle. Contains Lithium Ion Battery. Battery should be disposed of according to local law. AirTurn will recycle returned batteries and electronics. - Page 19 Check out other great products from AirTurn including tablet holders, portable tablet stands and accessories.
- Page 20 888-247-1223...
