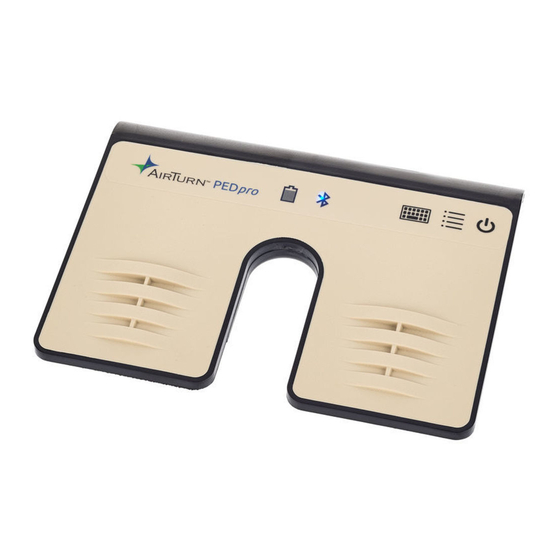

PEDpro
HANDS-FREE BLUETOOTH CONTROLLER
for Bluetooth 4 Tablets AND Computers
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEDpro and is the answer not in the manual?

Questions and answers

Related Manuals for AirTurn PEDpro

Summary of Contents for AirTurn PEDpro

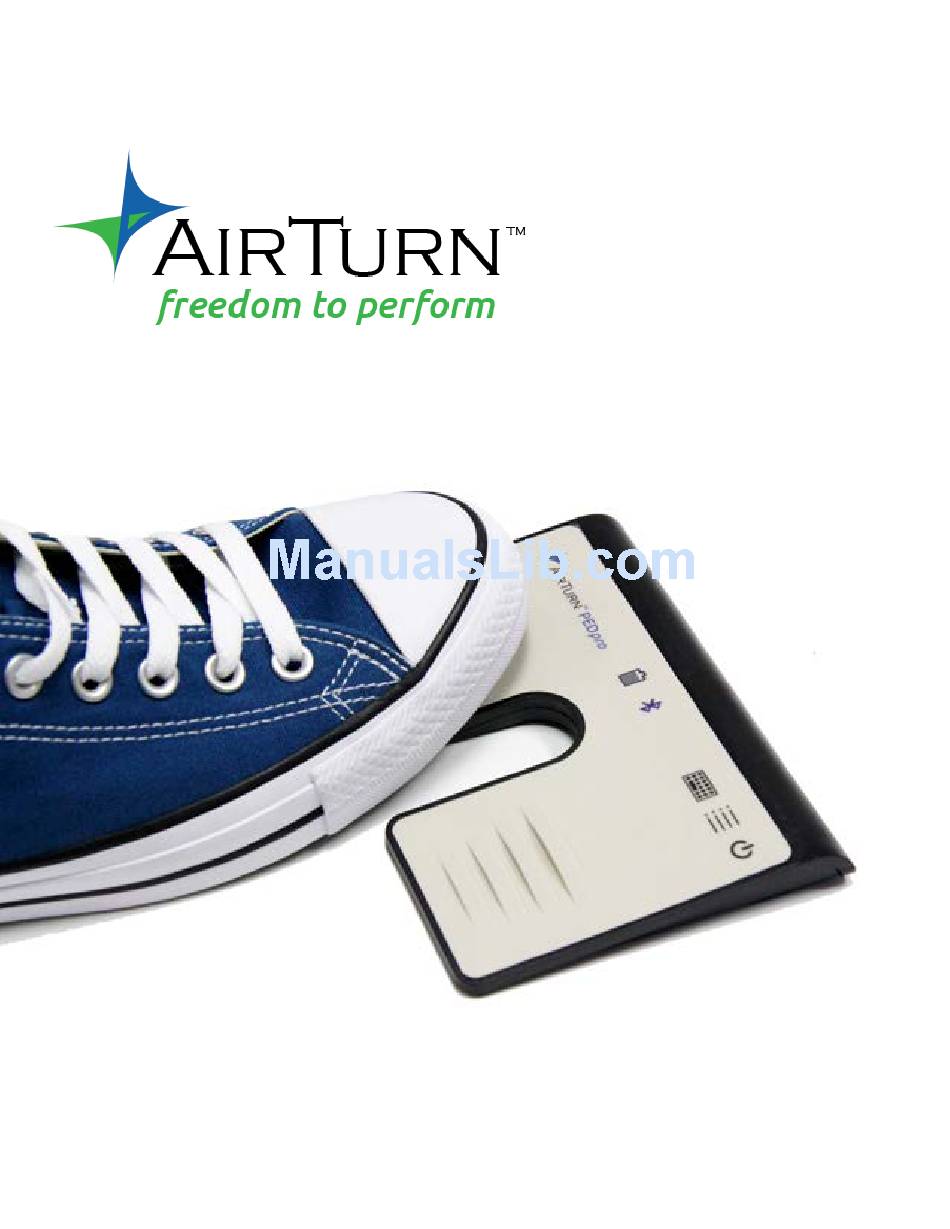

  • Page 1 PEDpro HANDS-FREE BLUETOOTH CONTROLLER for Bluetooth 4 Tablets AND Computers Operating Manual...

  • Page 3: Table Of Contents

    CONTENTS Before Turning on Your PEDpro ..........4 Power ..................5 Modes ..................6 Changing the MODE ............7 Connecting and Pairing ............7 Pairing in GATT MODE 1 ..........8 Pairing in MODE 2-6 ............8 Reset Pairing ............... 9 Power Consumption ..............

  • Page 4: Before Turning On Your Pedpro

    PEDpro provides a myriad of uses. BEFORE TURNING ON YOUR PEDpro The PEDpro works with most Bluetooth 4 devices. This includes iPad 3 and later, iPhone 4S and later, and most devices running Android 4.3 or later with Bluetooth 4.

  • Page 5: Power

    ON - Press and hold the Power Button on for one second and the LED’s flash. The blue LED will begin to blink 2 times per second until pairing is started. OFF - Press and hold the Power Button on the PEDpro until the red and blue LEDs turn off.

  • Page 6: Modes

    MODES There are six modes available on your PEDpro. Each mode sends a different signal for each pedal. The PEDpro is set to MODE 2 by default. MODE 1: GATT This mode is app specific. Your app will provide that information.

  • Page 7: Changing The Mode

    Note: Once the MODE has been set, it will remain the same until it is changed following the above steps. CONNECTING AND PAIRING Once the PEDpro is powered on, the blue LED will blink 2 times per second until pairing is completed.

  • Page 8: Pairing In Gatt Mode 1

    Open your computer’s Bluetooth Setup dialog: iOS – Select Settings>Bluetooth and turn on the Bluetooth if it is off. When the PEDpro is discovered, it will appear in the list of devices. Tap on the selection. A dialog box will then appear. Tap on Pair.

  • Page 9: Reset Pairing

    MODES 1 and another mode. Delete or forget the Bluetooth pairing from your host computer. With the PEDpro powered on, press and hold the power button for six seconds. After two seconds, the PEDpro will appear to power down.

  • Page 10: Virtual Keyboard In Ios

    The PEDpro averages a usage of 2μA when turned off and averages a usage of 5μA when turned on. VIRTUAL KEYBOARD IN iOS To turn on the virtual keyboard in iOS, put the cursor into a text box and press the Keyboard Button on the PEDpro.

  • Page 11: Airturn Manager

    AIRTURN MANAGER To change the configuration of your PED Pro and update its firmware to the latest available, download the AirTurn Manager App from the Apple App Store or Google Play Store. The App allows you to configure the key repeat rate, power saving settings, and configure the macros for the pedals in each mode.

  • Page 12: Care Of Your Pedpro

    ABCD refers to the MAC address. This is helpful if there are many PEDpro units in the same location. Your MAC address will always be the same so you can easily identify your unit. You will find your specific MAC address labeled on the bottom of your PEDpro at the end of the serial number.

  • Page 13: Radio Information

    Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall AirTurn be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs...
  • Page 14 • Transmit power: +0 dBm • TX peak current: 18.2 mA • Frequency 2.402GHz to 2480GHz Approximate Range: 33 feet (10 Meters) subject to orientation and other factors. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 15: Recycling And Disposal

    MIC Japan certification of the end product. KCC (Korea) BLE113 has type certification in Korea with certification number KCC-CRM- BGT-BLE113. AirTurn also holds unintended emissions testing on file for FCC/CE RECYCLING AND DISPOSAL Electronic components and construction comply with RoHS and REACH standards.
  • Page 16 Android is a trademark of Google, Inc. Powerpoint, Word are trademarks of Microsoft AirTurn, PEDpro and its respective logos are trademarks of AirTurn, Inc. support@airturn.com www.airturn.com 888-247-1223...
