Jole kava Manual

3-in-1 stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

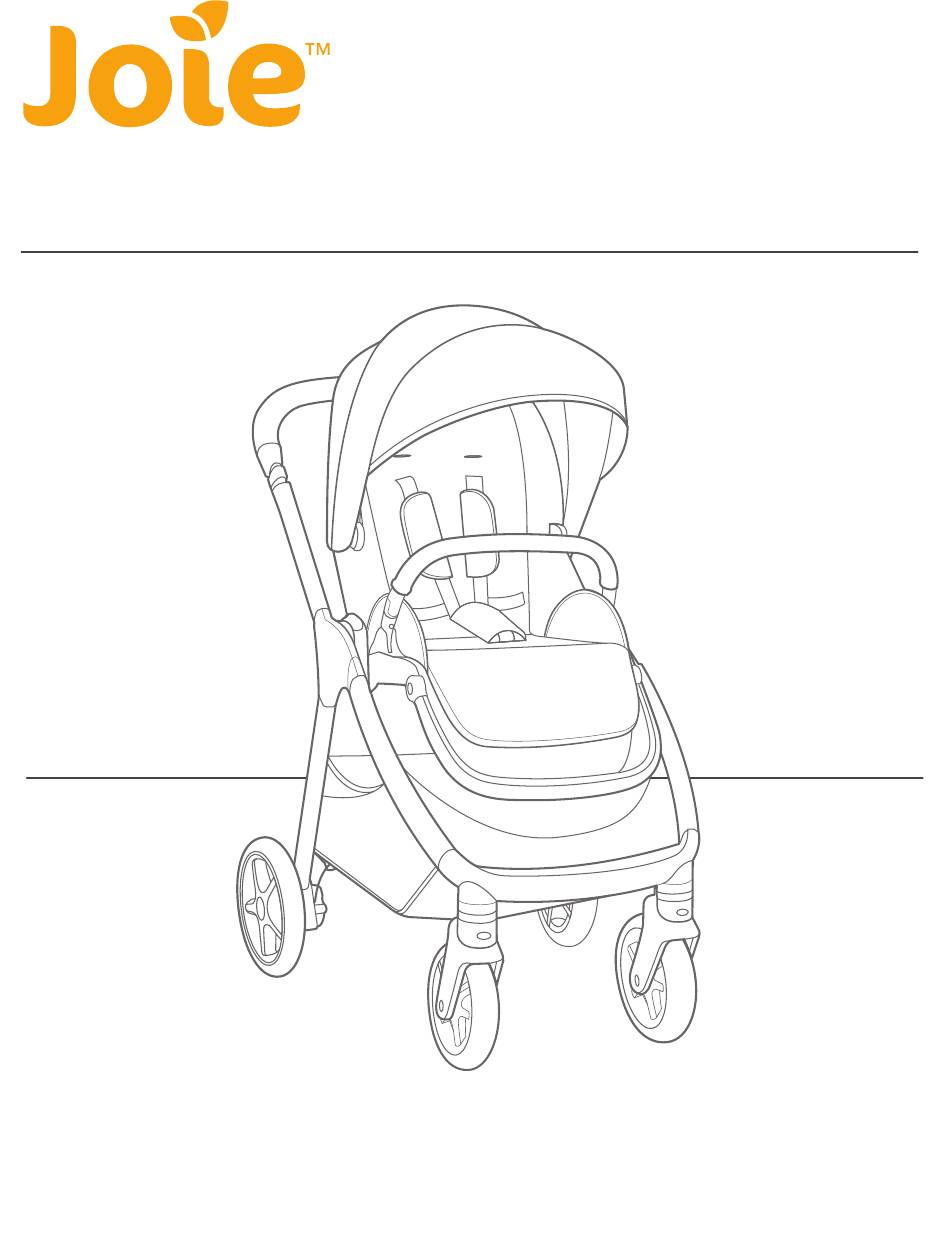

kava
™
3-in-1 stroller
Instruction Manual
Weight: up to 50 lb. (22.7 kg)
Height: up to 45 in. (114.3 cm)
IMPORTANT!
Read all instructions before assembling and using the stroller.
Keep instructions for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kava and is the answer not in the manual?

Questions and answers

Related Manuals for Jole kava

Summary of Contents for Jole kava

  • Page 1 ™ 3-in-1 stroller Instruction Manual Weight: up to 50 lb. (22.7 kg) Height: up to 45 in. (114.3 cm) IMPORTANT! Read all instructions before assembling and using the stroller. Keep instructions for future use.

  • Page 2: Table Of Contents

    Contents: Warranty Information Warnings Parts List Opening Stroller Attaching & Detaching Front Wheels Attaching & Detaching Rear Wheels Attaching & Detaching Canopy Attaching & Detaching Cup Holder Attaching & Detaching Arm Bar Securing Your Child Adjusting Recline Adjusting Calf Support Using Front Swivel Locks Using Brake Using Canopy...

  • Page 3: Warranty Information

    Warranty Information: Product Registration Please fill in the information below. The model number and the date of manufacture are located on a label on the stroller frame. Fill out the prepaid registration postcard attached to the product and mail it today. To register your product online, please visit: https://joiebaby.com/us/register-gear.
  • Page 4 WARNING Failure to follow these warnings and instructions could result in serious injury or death. NEVER leave your child unattended. • Choking Hazard: Keep small parts away from • children. These components may pose a choking hazard. Suffocation Risk: Remove all plastic covers before •...
  • Page 5 WARNING Failure to follow these warnings and instructions could result in serious injury or death. Weight & Height Limits: This stroller is only • suitable for children up to 50 lb. (22.7 kg) and 45 in. (114.3 cm) tall. Exceeding these limits can cause wear and tear, potentially leading to an unstable stroller.
  • Page 6 WARNING Failure to follow these warnings and instructions could result in serious injury or death. Avoid Finger Entrapment: Use care when • folding and unfolding the stroller. Ensure that the stroller is fully erected and locked before allowing your child near the stroller. Strangulation Hazard: DO NOT place items •...
  • Page 7 WARNING Failure to follow these warnings and instructions could result in serious injury or death. NEVER use the stroller on stairs or escalators. • You may suddenly lose control of the stroller, or your child may fall out. The stroller does not replace a crib or a bed. •...

  • Page 8: Parts List

    Parts List: Please make sure there are no missing parts. Please contact Joie Consumer Service if anything is missing. Stroller Frame Front Wheels Rear Wheels Infant Car Seat Adapter Adapter Folding Strap Cup Holder Seat Pad Insert Removable Storage Bag Removable Storage Bag Carrying Strap Canopy Arm Bar...
  • Page 9 Parts List:...

  • Page 10: Opening Stroller

    Opening Stroller: Separate the storage latch from the storage mount (A) by pulling out on the storage latch. Optional: rotate the storage latch clockwise (B) so that it is in line with the frame and out of the way. Lift the handlebar upwards. Pull back on the seat and rotate until the seat clicks into place.

  • Page 12: Attaching & Detaching Front Wheels

    Attaching & Detaching Front Wheels: 1 - Attaching the Front Wheels: Insert the front wheels into the front legs. A “clicking” sound will confirm that the wheels are properly locked in place. IMPORTANT: Safety Check: ALWAYS pull on the wheels after attachment to ensure that they are securely fastened.

  • Page 14: Attaching & Detaching Canopy

    Attaching & Detaching Canopy: Attaching the Canopy: Insert the canopy mounts into the slots on the stroller frame. A “clicking” sound will indicate that the canopy is properly locked in place. Attach the snaps on the top of the rear flap of the canopy to the corresponding snaps on the seat back.

  • Page 16: Attaching & Detaching Arm Bar

    Attaching & Detaching Arm Bar: 1 - Attaching the Arm Bar: Insert both ends of the arm bar into the arm bar mounts. A “clicking” sound will confirm that the arm bar is properly locked in place. 2 - Detaching the Arm Bar: To remove the arm bar, press the arm bar release buttons on both sides (A) and pull the arm bar out (B).

  • Page 18: Securing Your Child

    Securing Your Child: 1 - Releasing the Restraint Buckle: Locate the button in the center of the restraint buckle and press it firmly to release the harness straps. 2 - Locking the Restraint Buckle: Slide the shoulder harness buckle into the waist belt buckle (A).
  • Page 20 Shoulder Harness Height Adjustment: Detach the snaps on both sides of the rear flap of the canopy. Detach the snaps on the top of the rear flap of the canopy. Unzip both zippers on the sides of the seat back. Turn the harness anchor to be in line with the harness strap.

  • Page 22: Adjusting Recline

    Adjusting Recline: There are 3 recline angles for the backrest. Pull the recline lever (A) on the back of the seat. Pull down to recline the backrest or push up to raise the backrest (B). DO NOT press the seat folding button (C) in the middle of the recline lever when adjusting the angle for recline.

  • Page 24: Using Front Swivel Locks

    Using Front Swivel Locks: 1 - Locking the Wheels: Ensure that the front wheels are positioned straight ahead, not angled to the side or turned around. The swivel locks are located on the backside of each wheel. Rotate each swivel lock clockwise to lock the front wheels in a straight position.

  • Page 26: Using Canopy

    Using Canopy: Opening and Closing the Canopy: To open, pull the canopy forward toward the front of the seat. To close, push the canopy back. For extended canopy coverage, unzip the canopy zipper and pull the canopy fully forward. Ventilation: For additional airflow, flip the canopy window cover up.

  • Page 28: Removing Harness & Buckle Covers

    Removing Harness & Buckle Covers: 1 - Removing the Shoulder Harness Covers: Unsnap the shoulder harness covers. Release the restraint buckle and slide the shoulder harness buckles out of the waist belt buckles. Unthread the shoulder harness straps from the elastic on the inside of the shoulder harness covers (A).

  • Page 30: Using Reversible Seat

    Using Reversible Seat: The seat is reversible, so the child can face rearward or forward. Use your thumbs to pull both seat release buttons towards you while holding onto the underside of the seat. Lift the seat off. Turn the seat to the reverse direction and reinsert the seat onto the seat mounts.

  • Page 32: Using Seat Pad Insert

    Using Seat Pad Insert: Release the restraint buckle. To remove the seat pad insert, unthread the shoulder harness straps through their respective slots (A). Detach the hook and loop fasteners on the top of the seat pad insert from the top of the backrest (B). To attach the seat pad insert, repeat the above steps in reverse order.

  • Page 34: Using Removable Storage Bag

    Using Removable Storage Bag: Attaching the Removable Storage Bag: Attach the hook and loop fasteners on the top of the removable storage bag to the inside of the back panel of the storage basket. Secure the buckles on both sides of the removable storage bag to the attachment buckles on both sides of the rear panel of the storage basket.

  • Page 36: Folding Stroller

    Folding Stroller: The stroller can be folded with the seat rear-facing, forward-facing, or with the infant car seat adapters attached. DO NOT fold the stroller with the front swivel locks engaged. Folding the stroller with the seat attached: Close the canopy (A). Ensure that the storage latch is pointing towards the back of the stroller.
  • Page 37 forward-facing forward-facing rear-facing rear-facing...
  • Page 38 Folding Stroller: (cont.) The storage latch will automatically hook onto the storage mount. A “clicking” sound will confirm that the stroller is completely folded and locked. Folding the stroller with the infant car seat adapters attached: Ensure that the storage latch is pointing towards the back of the stroller.
  • Page 39 forward-facing forward-facing rear-facing rear-facing...

  • Page 40: 42 Using Accessories

    Using Accessories: For information about using your Joie infant car seat, refer to the instruction manual included with the infant car seat. Using with a Joie Infant Car Seat: First, remove the stroller seat. Use your thumbs to pull both seat release buttons (A) towards you while holding onto the underside of the seat.

  • Page 42: Care And Maintenance

    Care & Maintenance: Cleaning: Seat pad: Spot clean with a sponge and soapy water. Seat pad insert and removable storage bag: Refer to care tag on the product. Air dry only. Stroller frame: Wipe clean with a solution of warm water and mild household soap.
  • Page 43 Storage: Extreme weather exposure: Avoid excessive sun or heat exposure to prevent fading or warping of parts. Avoid storing outside or in cold conditions. Drying after use: If the stroller gets wet, open the canopy and allow it to dry completely before storing. Wheel Maintenance: Squeaking wheels: Apply a light coat of lubricating oil (e.g., silicone spray, anti-rust oil, or sewing machine oil) directly to...
  • Page 44 IM-001578A...
