REDLINE TUNING QuickLIFT Installation Guide

Also See for QuickLIFT:

Table of Contents

Step 1 - Unpack QuickLIFT system and verify contents

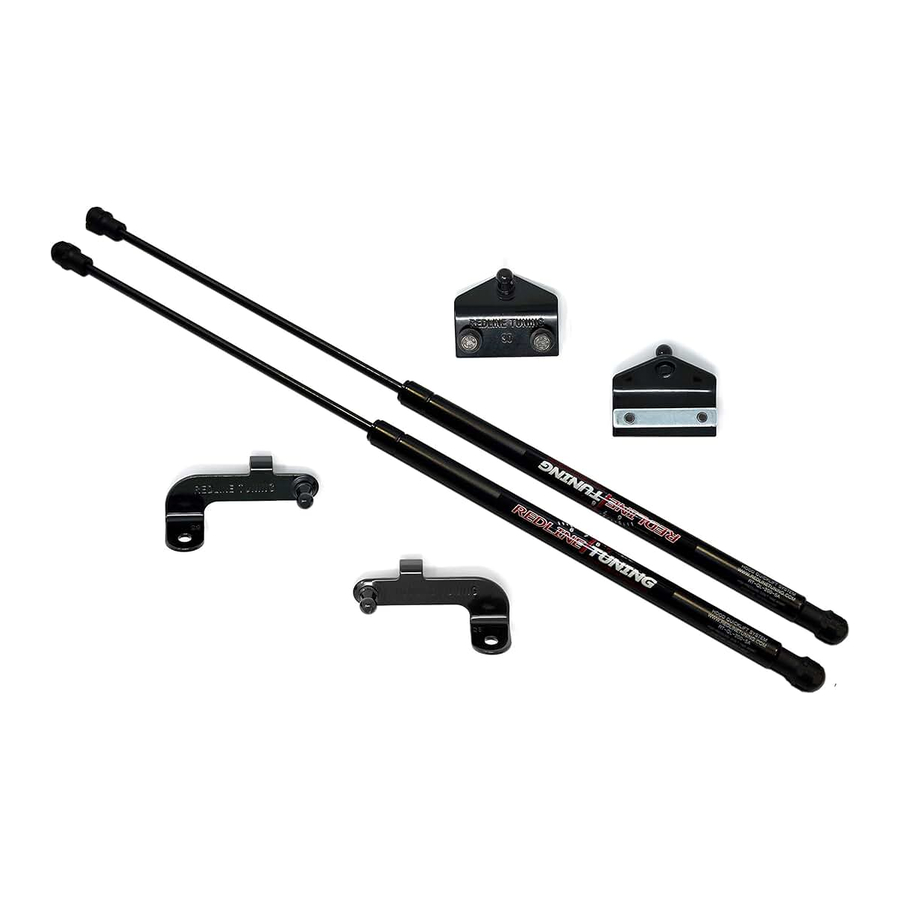

Remove all items from the packing tube. You should have the following before beginning:

* (2) Gas springs
* (2) Hood Bracket Assemblies
* (1) LH Fender Bracket
* (1) RH Fender Bracket
* Printed Color Instructions

RT-QL-180-4A or 5A
55-00035
32-00028
32-00029

Please gather the following tools before you begin the installation:

Open hood, rest against windshield or use prop rod for the following steps.

If vehicle has wire loom running down inner fender, route cable as shown in (3A) - Skip this step if wire is not present on your vehicle.
Remove rear fender bolt as shown.
Place LH bracket (28 stamped on bracket) as shown below.

NOTE: Before tightening bolt - push bracket tight against metal behind ball-stud, pull bracket away from vehicle under bolt... then tighten bolt. (Shown below).
Repeat steps above to install bracket (29) on (RH) or passenger side of vehicle.

There are (2) identical hood bracket assemblies. First remove the lower bolt one of them as shown in 4A.
Loosen upper bolt such that threads are flush with the back- side of the metal plate. Slip the metal insert into slot in hood.
When fully inserted, wiggle to align the lower threaded hole to the bracket hole. Thread in the bolt you removed.
Slide the assembly upward while keeping it firmly pressed against the hood. The hood liner can be pulled in front of the bracket, or cut away. Tighten both bolts to lock bracket in place.
Repeat on RH Side. Both ball studs will be aiming inward toward engine.

Carefully ROCK the end-fitting with LIGHT pressure over the ball-stud. You want the metal c-clip inside the socket to spread and wrap around the ball-stud. Once the c-clip spreads, it will snap the socket into place.
DO NOT FORCE ONTO BALL-STUD.
