Redline Tuning QuickLIFT Installation Manual

Manual Rev. 2.1
2018+ 1/2022
21-20003
Wrangler
21-20004
JL
21-20006

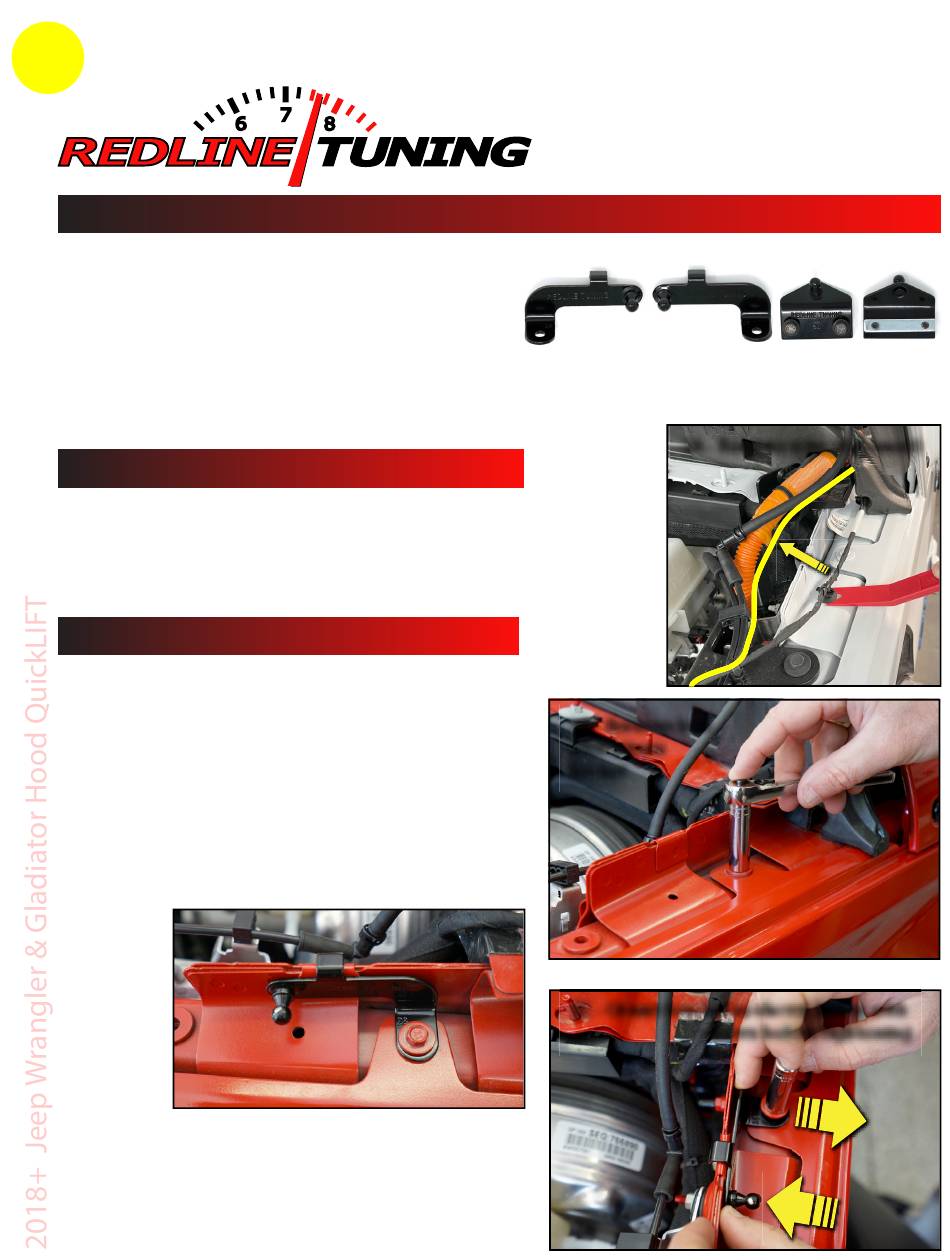

Step 1 - Unpack QuickLIFT system and verify contents.
Remove all items from the packing tube. You should have
the following before beginning:
* (2) Gas springs
* (2) Hood Bracket Assemblies
* (1) LH Fender Bracket
* (1) RH Fender Bracket
* Printed Color Instructions
Step 2 - Gather the required tools.
Please gather the following tools before you begin the
installation:
* Socket wrench with 10mm socket.
Step 3 - Install LH (driver's side) bracket.
Open hood, rest against windshield or use prop rod for
the following steps.
A. If vehicle has wire loom running down inner fender,
route cable as shown in (3A) - Skip this step if wire is not
present on your vehicle.
B. Remove rear fender bolt as shown.
C. Place LH bracket (28 stamped on bracket) as shown
below and lower right.
NOTE: Before tightening bolt - push bracket tight against
metal behind ball-stud, pull bracket away from vehicle
under bolt... then tighten bolt. (Shown to the right)
D. Repeat steps above to install bracket (29) on (RH) or
passenger side of vehicle.
This manual is property of Redline Tuning Inc. Any unauthorized duplication or use
without written permission from Redline Tuning Inc, violates Copyright laws.
2018+ Jeep Wrangler / Gladiator (JL & JT)
RT-QL-180-4A or 5A
55-00035
32-00028
32-00029
Copyright © 2022 Redline Tuning Inc. All Rights Reserved.
QuickLIFT Installation Guide
32-00029 32-00028
3A - Reroute wire (if present)
3B - Remove bolt
with 10mm
Socket
3C - Orient bracket as shown below with
arrows before tightening
(2) 55-00035
