- Page 1 ACM-4000 Installation And Operation Manual DE-4000 Series Configurable Safety Shutdown and Control System Form DE-4000 OCM 02-22 DE-4000 OCM 02-22 All rights reserved © ALTRONIC, LLC 2022...
- Page 2 This manual contains information on the operation and configuration of a DE-4000 Safety Shutdown and Control System. This manual supplements the DE-4000 Safety Shutdown and Control System Installation Instructions, Form DE-4000 II. DE-4000 OCM 02-22 All rights reserved © ALTRONIC, LLC 2022...
-
Page 3: Table Of Contents
2. OVERVIEW ............................2.1 General ............................2.2 Description ........................... 2.3 Dimensions ........................... 2.4 I/O ..............................2.5 Web Interface ..........................2.6 Hardware ............................2.7 Power Requirement ........................2.8 Operating Temperature ........................ DE-4000 OCM 02-22 All rights reserved © ALTRONIC, LLC 2022... - Page 4 DE-4000 OCM 02-22 All rights reserved © ALTRONIC, LLC 2022...
-
Page 5: Acm-4000 Installation And Operation Manual
Module - 4000 (ACM-4000). 1. GENERAL SAFETY AND WIRING PRECAUTIONS Review the following safety precautions to avoid injury and prevent damage to the ACM-4000 System or any devices connected to it. WARNING: Deviation from these instructions may lead to improper engine operation which could cause personal injury to operators or other nearby personnel. -
Page 6: Overview
Power must be from a Class 2 power source with transient protection or from a 24-volt battery system. The power to the ACM-4000 System must be installed in accordance with the requirements of the National Electrical Code (US) and the Canadian Electrical Code (Canada) Over-current power protection is required for the ACM-4000 System. -
Page 7: Description

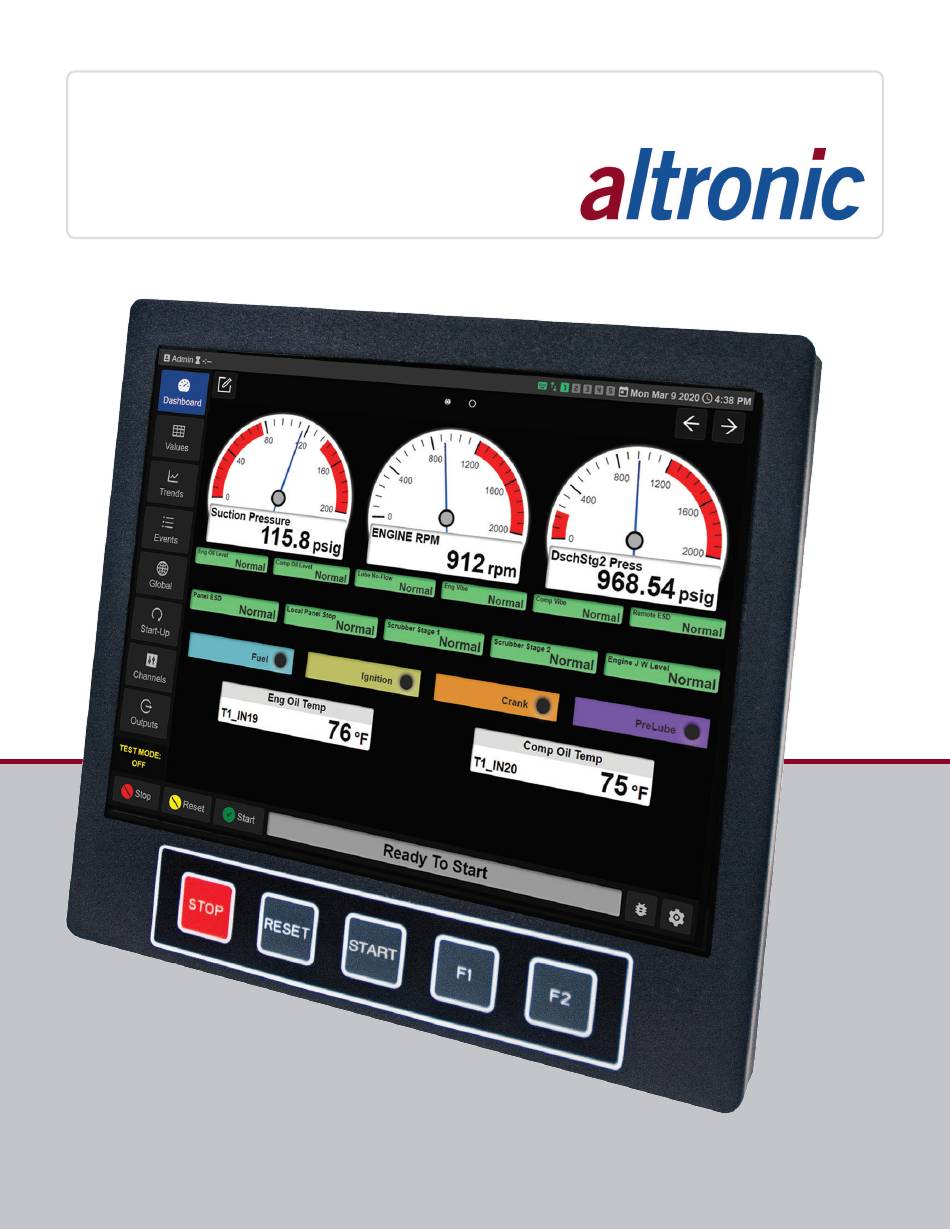

2.2 Description The ACM-4000 uses a state-of-the-art System-On-Module (SoM) to centralize: HMI, configuration, control, and networking functions in a single product and combines these with the intuitive Altronic Web Interface to allow for unparalleled adaptability and scalability. 2.3 Dimensions 2.4 I/O... -
Page 8: Power Requirement
System power requirement is 10-32VDC, 3 amps max. 2.8 Operating Temperature Ambient temperature range: –40°C to +85°C (–40°F to +185°F) From: https://www.altronic.a2hosted.com/ - Documentation Wiki Permanent link: https://www.altronic.a2hosted.com/doku.php?id=documents:acm-4000 Last update: 2023/02/23 16:08 DE-4000 OCM 02-22 All rights reserved © ALTRONIC, LLC 2022...
