Summary of Contents for Anova RC600

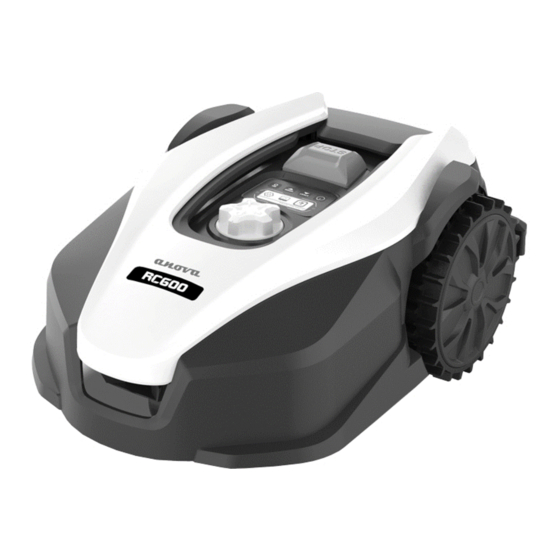

- Page 1 Robot lawnmower RC600 Instructions and user manual Millasur SLU Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 – Oroso, A Coruña - 981 696 465 - www.millasur.com...
- Page 2 Anova wishes to congratulate you on choosing one of our products and guarantees you the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and be very useful if used according to the instructions in the user manual.
- Page 3 INDEX 1. SAFETY INSTRUCTIONS 2. TECHNICAL SPECIFICATIONS 3. PRODUCT DESCRIPTION 4. FACILITY 5. CONFIGURATION 6. TROUBLESHOOTING – ERROR CODES 7. SOFTWARE UPDATE 8. MAINTENANCE 9. CONNECT APP 10. WARRANTY 11. ENVIRONMENT 12. EXPLODED VIEW 13. CE CERTIFICATE...
-
Page 4: Electrical Safety Instructions
1. SAFETY INSTRUCTIONS 1.1. Safety instructions 1.1.1. General Read the manual carefully and make sure you understand the instructions before using the product. Retain it for future reference. This product is not intended for use by children or persons with reduced physical, sensory or mental capabilities and/or lack of experience and knowledge. -
Page 5: Operation
from dangerous moving parts and to prevent damage to the cables that may come into contact with live parts. 1.1.3. Safety instructions for operationoperationeither Do not use the product if the STOP button does not work. Always turn off the product when not in use. The product can only be started when you enter the correct PIN code. -
Page 6: Battery Pack And Charger
Do not operate the machine barefoot or in open sandals. Always wear sturdy footwear and long pants. Always make sure to keep your balance on slopes. Be very careful when reversing the machine towards you. Always start the engine according to the instructions with your feet well away from the blades. -
Page 7: Safety Symbols
1.2. Safety symbols Safety symbols and accompanying explanations must be fully understood. Warnings alone do not eliminate risks and cannot replace correct actions to prevent accidents. General Warning: Read the user instructions before using the product. Warning: Disable the product before working or lifting the machine. Warning: Maintain a safe distance from the machine when in operation. -
Page 8: Safety Warnings
Because Anova regularly improves its products, you may find slight differences between your machine and the descriptions contained in this manual. Anova may make changes to the machine without prior notice and without obligation to update the manual, although essential safety and operating features will remain unchanged. -
Page 9: Technical Specifications
The machine should only be used by people who are well rested and in good physical and mental condition. Failure to follow the above guidelines or use of the product by persons not trained or authorized to use this product will increase the risk of injury and void the warranty. Modifications to the machine are prohibited. -
Page 10: Product Description
Robot protection IPX5 Charging station protection IPX4 Power supply protection IP67 Wi-Fi 2.4G + Bluetooth Note: This manual and its technical characteristics may be modified without prior notice and without the need to change the document. Clarifications: Not all accessories described in this manual may be included in the final product delivery due to product updates. - Page 11 4. FACILITY Charging base Charging base 4.1. Installing the charging base Important Dangers caused by electric current. Use only an original power supply. The power supply must not be used: If it is damaged or worn. If the cables are damaged or worn. In particular, check the power cable for damage or aging.
- Page 12 Connect the machine only to a power supply that is protected by a residual current device with a tripping current of at most 30 mA. If the power supply is connected to the electrical grid outside a building, the outlet must be approved for outdoor use.
- Page 13 the distance between stakes can be reduced as appropriate for the perimeter and terrain. NOTE: The maximum length allowed for the perimeter wire is 300 m. If an obstacle is level with the ground and the robotic lawnmower can safely drive over it, such as a driveway or sidewalk, only 8 cm of space is needed between it and the boundary wire.
- Page 14 Slopes: Your robotic lawnmower is capable of climbing slopes safely, so avoid areas with steeper gradients than permitted. How to calculate the slope of your lawn: Lay the perimeter wire on slopes as shown in figures 12 and 13. Note: *A: Upper perimeter wire / B and C: Lower perimeter wire 4.3.
-
Page 15: Checking The Installation
LED light status Possible meaning Action Confirm that the power cord is properly connected to the charger and that the It doesn't turn on There is no current charger is connected to a suitable power source. The boundary wire is connected on Green light on the right;... - Page 16 Alternatively, the ultrasonic function can be activated and deactivated by operating the LED display. 1. Time icon 2. Date icon 3. Status icon 4. Turn on/off 5. Start working/uploading 6. WIFI icon 7. Power/Battery Icon 8. Status display 9. OK 10.
-
Page 17: Configuration Interface
5.2. Configuration interface Press and hold the key for 3 seconds to enter the settings interface. The left side of the LCD screen displays the "Function Settings" icon - the middle displays the "Schedule Settings" icon - the right side displays the "Other Settings" icon. At this point, the "home"... - Page 18 If the rain shower machine is not turned on, click the " " to activate the rain shower delay. At this time, press the buttons " " and " " to move the cursor. After pressing the button " ", the cursor flashes and the time can be adjusted by pressing the "...
-
Page 19: Programming Settings
5.4. Programming Settings 5.4.1. Manual programming - unique In the setting interface, place the cursor on the "Schedule Settings" icon and press the " " to enter the schedule settings page. On the left side of the LCD screen, the default cursor is Sunday, and on the right side, the unique schedule and trim on/off icons "00:00-00:00"... - Page 20 5.4.2. Manual programming - dual In the setting interface, place the cursor on the "Schedule Settings" icon and press the " " to enter the schedule settings page. On the left side of the LCD screen, the default cursor is Sunday, and on the right side, the dual schedule on/off and cut-out icons "00:00-00:00 00:00-00:00"...
- Page 21 move the cursor to the “Border” line and press the " button. "to complete the edge trimming work as soon as possible during working hours. 5.4.3. Automatic programming – unique In the setting interface, place the cursor on the "Schedule Settings" icon and press the " "...
-
Page 22: Other Settings
On the left side of the LCD screen, "Week" and "Auto" are displayed, and the cursor defaults to "Auto". Press the " key " to move the cursor to the right and use the "home" and "start" keys to move the cursor to the "Auto" line. Click the "OK"... -
Page 23: Language Settings
Click on the " button " to return to the previous page. 5.5.2. Language settings When the cursor is on "Language", press the " button " to enter the language setting interface. The LCD screen displays languages from different countries; Click the " button "... - Page 24 Press the buttons " " and " " to change the number and press the button " " to confirm. o If the old password is entered incorrectly, the message "Incorrect PIN code" will be displayed and the interface will be redirected to enter the old password. o If the old password is correct, the message "PIN code correct"...
-
Page 25: Restore Factory Settings
5.5.6. Restore factory settings When the cursor is on "Reset", press the " key " to enter the machine reset page. At this point, a message box "Reset or not YES NO" will appear on the LCD screen and the cursor will default to "NO". At this time, adjust the cursor position between "... - Page 26 2. After 10 minutes you will be able to enter your PIN again. LOCK entering incorrect 3. If you have forgotten your PIN/password, please contact your authorized dealer. Attention If the error isn't resolved with the above measures, try restarting the unit. If the error persists, contact your nearest Anova dealer.
- Page 27 Tangled or damaged electrical cable Wear protective gloves when disconnecting the power cord. 1. Unscrew the knob between the extension cord and the adapter. 2. Buy a new adapter of the same model and replace it. 3. Reboot the machine. Instructions on how to proceed in case of abnormal vibrations: Turn off the machine.
-
Page 28: Software Update
7. SOFTWARE UPDATE The software can be updated when new versions are available. The latest software will be provided through your official Anova distributor. 8. MAINTENANCE Your robotic lawnmower requires regular maintenance and cleaning. Additionally, some parts will require replacement as they wear out. - Page 29 When the cutting blades become dull and worn, they should be replaced with the replacement blades provided with your robotic lawnmower. Replacement blades are also available from your authorized Anova dealer. Before attempting to replace the blades on your machine, turn it off and put on protective gloves.
-
Page 30: Battery Replacement
8.5. Battery replacement Warning Turn it off before attempting any adjustments, replacements, or repairs. Before replacing blades, turn off your product and put on protective gloves. If you need to replace the battery, follow these steps: Turn your robotic lawnmower over. Remove the screws from the battery cover. -
Page 31: Download The App
Make sure you Download the app Check your Wi-Fi have the Wi-Fi settings password and the serial number of the product. 9.1. Download the app First download the free robot lawnmower app, get it from Android (4.4.2 or higher) or others like App Store (iOS 11 or higher). - Page 32 Once connected, the robotic lawnmower can access its unique automatic programming instructions from the cloud and download the latest software to optimize its performance. From the App you can: Start and stop your robot. Schedule work days and hours. Set the frequency of edge cutting. Configure the start zones.
- Page 33 Register your 2. Add your robot using the QR account code on the sticker Enter your robot's default 4. Connection network (Wi-Fi) PIN (0000)
- Page 34 APP Commands Access to event log and work history. Explanatory tutorial of the main commands. General robot status report. Battery level, connection, connection type, and rain indicator. Next scheduled work. If the robot is cutting, return to base command. You must press Stop first.
-
Page 35: Warranty Period
Access to data about the robot: name, model, and serial number. Access the start point configuration. There are four options for configuring different start points per work session. They are indicated as a percentage of the total perimeter. Access the Rain Delay Interval settings. Access to Wi-Fi settings and network identification. - Page 36 The warranty must be properly completed with all the requested information and accompanied by the purchase invoice. Anova reserves the right to reject any claim where the purchase cannot be verified or where it is clear that the product was not properly maintained (maintenance, clean ventilation slots, lubrication, carbon brushes regularly serviced, cleaning, storage, etc.).
- Page 37 For more information, please contact your nearest authorized Anova dealer or visit www.millasur.com. Warranty service is only available through official Anova dealers. You can find your nearest dealer on our dealer map at www.anova.es.
-
Page 38: Exploded View
EXPLODED VIEW... -
Page 40: Ec Declaration Of Conformity
If the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: ROBOT LAWNMOWER RC600 Model: Recognized and approved standard to which the following are adapted:...
