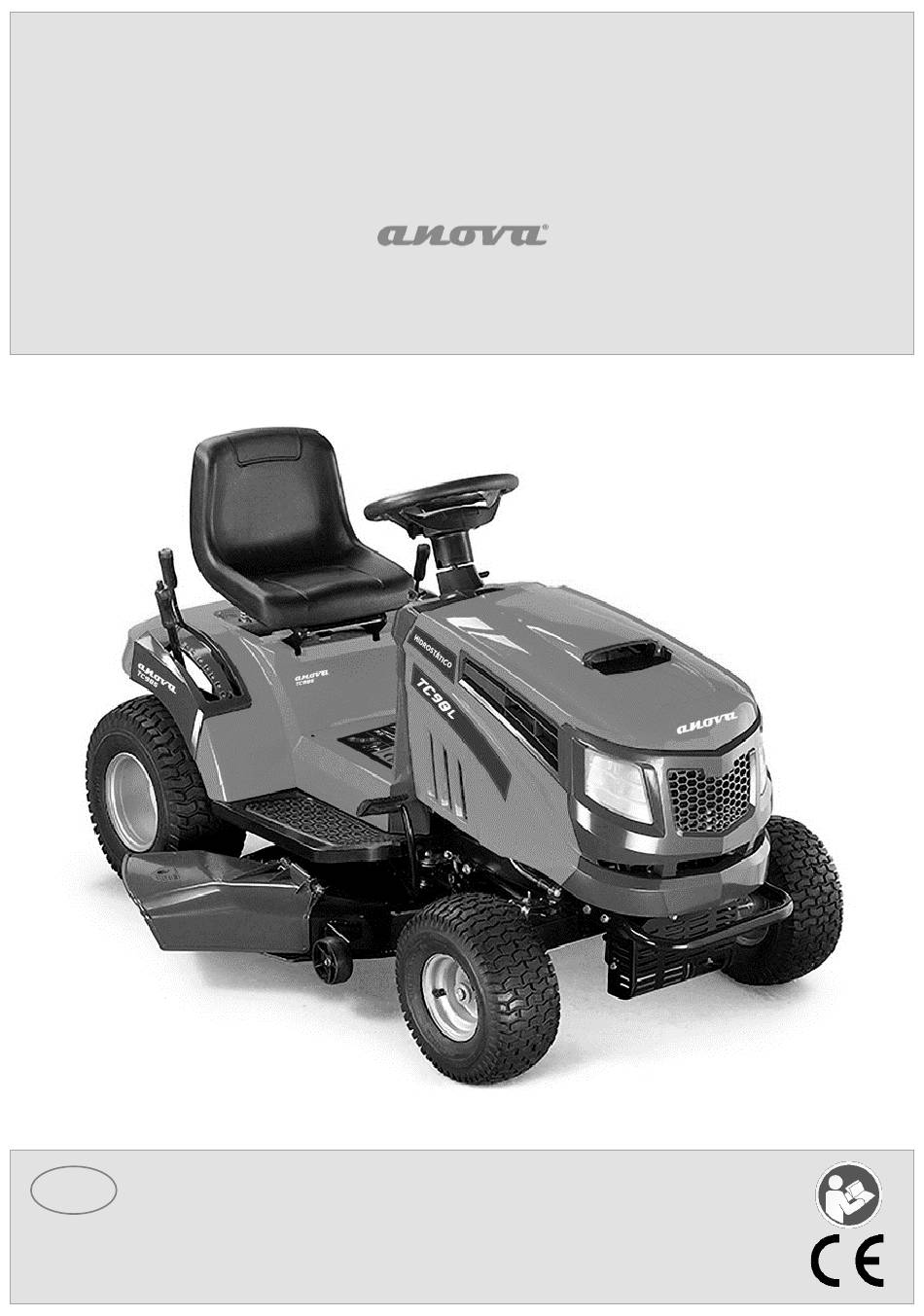

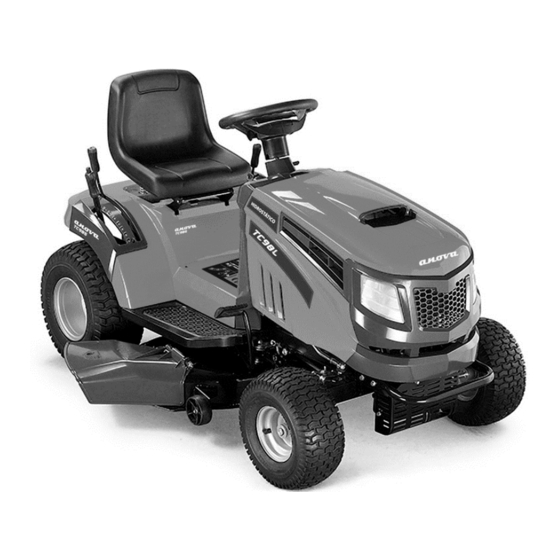

- Page 1 Lawnmower tractor TC98L Instructions and user manual Millasur SL Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com...
- Page 2 Anova wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual.
- Page 3 INDEX 1. SECURITY INSTRUCTIONS 1.1. Position security labels 1.2. Please note the following safety points 1.3. General safety rules 1.4. Security labels 1.5. Regulation for trailer 2. TECHNICAL SPECIFICATIONS 3. PRODUCT DESCRIPTION 3.1. Machine identification 3.2. Identification of its components 4.
-
Page 4: Security Instructions
1. SECURITY INSTRUCTIONS Important The riding mower must always be used with the utmost care. So that safety precautions and operating instructions are always at hand, labels have been affixed to the machine showing pictographs illustrating main operating precautions. Because these labels, in accordance with the applicable safety standards, are considered an integral part of the machine, the user is responsible for replacing them if they become... -
Page 5: General Safety Rules
The following safety notes will help prevent or reduce the risk of injury or death Danger Caveat Caution Indicates a hazard which, if Indicates a hazard which, if Indicates a hazard which, not avoided, could result in not avoided, could result in if not avoided, could result death or serious injury. - Page 6 1.3.2. Preparation 1. When mowing the lawn, always wear sturdy shoes and long pants. Do not wear the equipment barefoot or open sandals. 2. Thoroughly inspect the area where the equipment will be used and remove all objects that could be thrown from the machine. Danger Gasoline is highly flammable: Store fuel in containers specifically designed for this purpose.
-
Page 7: Security Labels
Disengage blades and lower attachments. Shift to neutral and apply the parking brake. Stop the engine and remove the ignition key. 11. Disengage the blades, stop the engine and remove the ignition key: Before clearing blockages or unclogging the collecting channel. Before cleaning, checking or repairing the machine. -
Page 8: Technical Specifications
The drag kit must be installed following the instructions provided. When using the towing kit, do not exceed the recommended loads indicated on the label and follow the safety instructions. 2. TECHNICAL SPECIFICATIONS TC98L Power 13.5HP Maximum engine speed 2800min-1 Blade 49.3cm (x2) -
Page 9: Product Description
3. PRODUCT DESCRIPTION 3.1. Machine identification The label located on the seat support has the essential data of each machine. 1. Name and address of the manufacturer 2. Machine type 3. Blade speed in rpm (if indicated) 4. Width of cut 5. -
Page 10: Unpacking And Assembly
4. UNPACKING AND ASSEMBLY For storage and transportation purposes, some machine components are not factory installed and must be assembled after unpacking. Follow the instructions below. Important The machine is supplied without engine oil and fuel. Before starting the engine, fill with oil and fuel following the instructions given in the engine manual. -
Page 11: Steering Wheel Assembly
4.2. Steering wheel assembly Place the machine on a flat surface and straighten the front wheels. Mount the axle to the outgoing axle with the bolt and nut. Place the steering wheel on the steering linkage shaft with the spokes facing the seat. -
Page 12: Controls And Instruments
4.6. Front Bumper Mount Mount the front bumper to the bottom of the frame with the screws. 5. CONTROLS AND INSTRUMENTS A. Throttle lever. B. Steering wheel. C. Headlight switch. D. Ignition key switch. E. Brake pedal. F. Parking brake lever. G. - Page 13 SLOW - for minimum engine speed FAST - for maximum engine speed When moving from one zone to another, place the lever in a position between "SLOW" and "FAST". When cutting, switch to "FAST" B. Steering wheel Spin the front wheels. C.
- Page 14 G. Cutting height adjustment lever Raises or lowers the blade deck and thereby adjusts the height of grass cutting. There are seven positions for this lever (shown as "1" to "7" on the label), corresponding to various heights between 30 and 90mm. To move from one height to another, press the button on the handle and guide the lever to the required position.
-
Page 15: Security Recommendations
6. INSTRUCTIONS FOR USE 6.1. Security recommendations Attention The machine must only be used for the purpose for which it was designed (cutting grass). Remember that the user is responsible for damages and injuries to other people or objects. Do not tamper with or remove the safety devices installed on the machine for safety. Before using the machine: Read the general safety regulations, paying special attention to driving and cutting on slopes. - Page 16 6.3. Instructions before starting work Before starting to cut, various checks and operations are necessary to ensure that you can work efficiently and in maximum safety. 6.3.1. Seat adjustment To change the position of the seat, loosen the four fixing screws and slide it along the slots.
-
Page 17: Machine Use
6.3.4. Checking the safety and efficiency of the machine Verify that safety devices are working as described above. Check that the brake is in perfect working order. Do not start mowing if the blades are vibrating or if you are not sure if they are sharp enough. - Page 18 When moving the machine, the blades must be disengaged and the mower deck raised as high as possible (position «7»). Put the throttle between “SLOW” and “FAST” and the shift lever in first gear. Fully depress the brake pedal to release the parking brake. Press the transmission activation pedal in direction "F"...
- Page 19 6.4.6. Unblocking the collector channel Mowing very tall or wet grass, especially at excessively high speeds, can clog the collector channel. If this happens, proceed as follows: Stop moving forward, disengage blades and stop engine. Open download protection. Remove grass clippings; they can be reached from the outlet of the collector channel. Caveat: This work must only be carried out with the engine off.
- Page 20 The blades hooked Attach a water hose to each of the pipe fittings one at a time and run water through each one for a few minutes, with the blades moving. When washing, the mower deck must be lowered down. Remove grass catcher, empty and rinse;...
- Page 21 6.4.12. Summary of the main steps to follow when using the machine For… You should… To start the engine Open the fuel cock, make sure all starting conditions are met, then turn the key move forward Press the pedal down, engage the gear, and then gradually release the pedal. brake or stop Reduce engine speed and depress the brake pedal.
-
Page 22: Lawn Maintenance
6.7. Lawn maintenance To maintain a green, smooth and attractive lawn, it must be mowed regularly without damaging the lawn. A lawn can be made up of different types of grass. If the lawn is mowed frequently, the grass and roots grow stronger, forming a solid lawn. If the lawn is mowed less often, taller grass and weeds start to grow (plus daisies and clovers, etc.). -
Page 23: Maintenance Schedule
7.2. Maintenance schedule 7.2.1. Maintenance schedule Operation Hours Filled 1. Machine Checking the clamping and sharpness of the blades. Blade replacement Drive Belt Check Drive Belt Replacement* Blade Belt Check Blade Belt Replacement* Unit adjustment and verification Checking the brake and blade engagement Checking of bolts and screws General lubrication** Engine oil change... -
Page 24: Checks And Adjustments
7.2.3. Engine To drain the engine oil, unscrew the oil cap when you put the cap back on, make sure the seal is seated correctly. 7.2.4. Drums The battery must be carefully maintained to ensure a long service life. The battery of the machine must always be charged: Before using the machine for the first time after purchase. -
Page 25: Disassembly And Replacement
Important On flat grass, if necessary, you can change the position of the wheel to get a lower cut. On raised grass, you need to put the wheel in hole "A". If in doubt, contact your dealer. 7.3.2. Cutting blades disengage When you move the blade rotation activation lever to the disengaged position, all movement will stop within five seconds if the setting is correct. - Page 26 7.4.2. Tire replacement and repair The tires are "tubeless", so all punctures must be repaired by a tire repairman following the procedures required for this type of tire. 7.4.3. Replacing the bulbs The bulbs (12V18W) have a bayonet fitting and are installed in the socket, which can be removed by turning it counterclockwise.
-
Page 27: Warranty Period
7.4.6. Belt replacement Belt replacement must be done at an authorized service center. Replace belts as soon as they show obvious signs of wear. Use original straps. 7.5. Lubrication Apply grease with an injector to the areas shown. Apply two or three injections of grease and wipe off excess grease. Lubricate the areas shown with engine oil. - Page 28 Misuse, negligence, careless operation or lack of maintenance. Defects caused by incorrect use, damage caused due to manipulations carried out by personnel not authorized by Anova or use of non-original spare parts. Defects of normal wear parts, such as bearings, brushes, cables, plugs or accessories such as drills, bits, saw blades, etc.
- Page 29 The guarantee must be correctly completed with all the information requested, and accompanied by the purchase invoice. Anova reserves the right to reject any claim where the purchase cannot be verified or where it is clear that the product was not properly maintained (maintenance, clean ventilation slots, lubrication, regularly maintained carbon brushes, cleaning, storage, etc.) .
- Page 30 EXPLODED TC98L...
-
Page 40: Ec Declaration Of Conformity
CE CERTIFICATE DISTRIBUTION COMPANY MILLASUR, SL RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO 15688 OROSO - A CORUÑA SPAIN EC DECLARATION OF CONFORMITY In compliance with the different CE directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed by the manufacturer on it, the machine identified in this document complies with the relevant and fundamental health and safety requirements.
