- Page 2 ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual.
- Page 3 CAVEAT For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions may result in serious injury. Take a few moments to familiarize yourself with your mower before each use. Keep this manual in a safe place, so that the information is available at all times.
-
Page 4: Table Of Contents
CONTENTS SECTION 1 SYMBOLS MARKED ON THE PRODUCT SECTION 2 GENERAL SAFETY RULES SECTION 3 DESCRIPTION OF PARTS SECTION 4 TECHNICAL INFORMATION SECTION 5 ASSEMBLY SECTION 6 “3 IN 1” SECTION 7 OPERATING INSTRUCTIONS SECTION 8 MAINTENANCE INSTRUCTIONS SECTION 9 LUBRICATION SECTION 10 CLEANING SECTION 11 STORAGE INSTRUCTIONS SECTION 12 TROUBLESHOOTING... -
Page 5: Section 1 Symbols Marked On The Product
CAVEAT: For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions may result in serious personal injury. Take a few moments to familiarize yourself with your mower before each use. 1.SYMBOLS MARKED ON THE PRODUCT (On the back cover) Figure A: B.1 Read the Operator's Manual. - Page 6 WARNING: This machine produces an electromagnetic field during its operation. This field can in some circumstances interfere with active or passive medical implants. To reduce the risk of serious injury or death, we recommend that individuals with medical implants consult their physician and the manufacturer of the medical implant before operating this machine.
- Page 7 ● Never operate mower with faulty guards, or without safety devices, eg deflectors and/or grass catchers. ● Caution: The mower should not be operated without the full grass guard or self-closing discharge opening guard. ● Do not change the motor governor settings or overload the motor. ●...

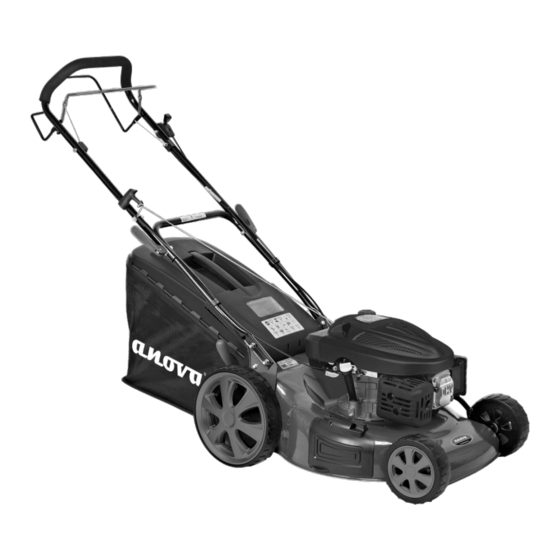

- Page 8 3. DESCRIPTION OF THE PARTS Figure 1 1. control handle 2. Brake control handle 3. Choke throttle lever 4. Rope guide 5. Grass catcher 6. Height adjustment lever 7. Oil cap 8. Cover 9. Side flap 10. Spark plug eleven.boot handle 12.
-
Page 9: Section 4 Technical Information
4. TECHNICAL INFORMATION Model CC251T Type of motor MA173 self propelled engine displacement 173 cm3 Rated Power 3.6kW blade width 510mm full power speed 2700/min Fuel tank capacity 2.0L Grass catcher capacity Net weight 37.3kg height adjustment 25-75mm, 10 settings Guaranteed sound pressure level at operator 84.3dB(A) - Page 10 Fig. 3A Fig. 3B Fig. 3C 5.3 STARTER HANDLE Move the engine starter handle to the rope guide. Fig.4A Fig.4B 5.4 CUTTING HEIGHT Apply outward pressure to disengage zipper lever. Move the lever forward or backward to adjust the height. (Fig.5) Fig.5 6.
- Page 11 Start of operation : Adaptation for compost cutter WARNING: only in case of stopped motor or static cut. 1.Raise the rear cover and remove the grass catcher. two.Push the quilting wedge into the cover. Lock the quilting wedge with the button in the opening of the cover.
-
Page 12: Section 7 Operating Instructions
WARNING: Carry out the adjustment operations with the motor and cutter stopped. 7. OPERATING INSTRUCTIONS Service the engine with gasoline and oil as instructed in the manual that is packed with your mower. Please read the instructions carefully. WARNING:Gasoline is highly flammable. Store fuel in containers specifically designed for this purpose. - Page 13 Note: During operation, when the brake handle is released, the engine will stop, thereby stopping mower operation. WARNING:To prevent any inadvertent starting of the mower, the mower is equipped with an engine brake which must be removed before the engine can be started. When the engine control lever is released, it should return to its home position, at which point the engine automatically shuts off.
- Page 14 can also be beneficial for your lawn. When you mow the leaves, make sure they are dry and not too thick on the lawn. Don't wait for all the leaves to be off the trees before cutting. WARNING:If you hit a foreign object, stop the engine. Remove the spark plug wire, thoroughly inspect the mower for any damage, and repair the damage before restarting and operating.
-
Page 15: Section 8 Maintenance Instructions
8. MAINTENANCE INSTRUCTIONS SPARK PLUG Use only an original replacement spark plug. For best results, replace the spark plug every 100 hours of use. BRAKE PADS Check and/or replace engine brake pads at service agent regularly, only original parts can be used as replacement. -
Page 16: Section 11 Storage Instructions
For best results, the blade must be sharp. The blade can be resharpened by removing it and grinding or filing the cutting edge keeping it as close to the original bevel as possible. It is extremely important that each cutting edge receives an equal amount of grinding to avoid an unbalanced blade. Improper blade balance will cause excessive vibration which will cause engine and mower damage. -
Page 17: Section 12 Troubleshooting
CAUTION!Do not drain gasoline in closed spaces, near a fireplace, etc. Do not smoke! Gasoline vapors can cause explosion or fire. B) Start the engine and let it run until all the gasoline has been used up. C) Remove the spark plug. Use an oil container to fill approx. 20 ml of oil in the combustion chamber. Run the starter motor to evenly distribute the oil in the combustion chamber. -
Page 18: Section 13 Warranty
Install a new properly capped plug - see faulty spark plug ENGINE OWNER'S MANUAL The engine runs Electrode gap adjustment: refer to ENGINE Spark plug gap is incorrect. irregularly. OWNER'S MANUAL Clean air cleaner element - refer to ENGINE The air filter is dirty OWNER'S MANUAL Clean air cleaner element - refer to ENGINE The air filter element is dirty. - Page 19 In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: LAWNMOWER CC251T Model: Recognized and approved standard to which it conforms: Directive 2006/42/EC / Directive 2014/30/EU...
