Burndy ThermOweld CS-48 Instructions

thermOweld

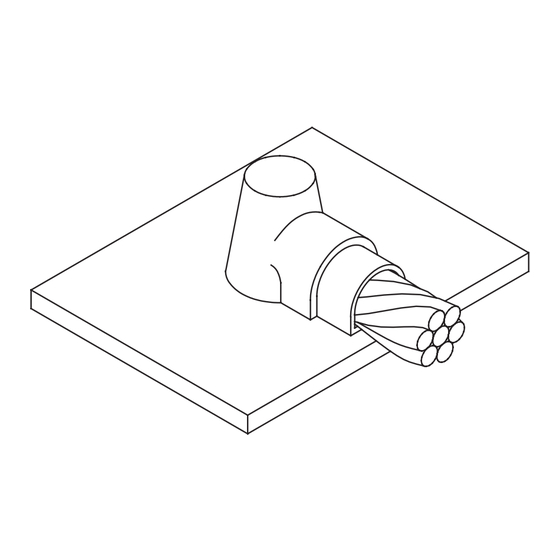

INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - CABLE TO STEEL OR CAST IRON
CS-48

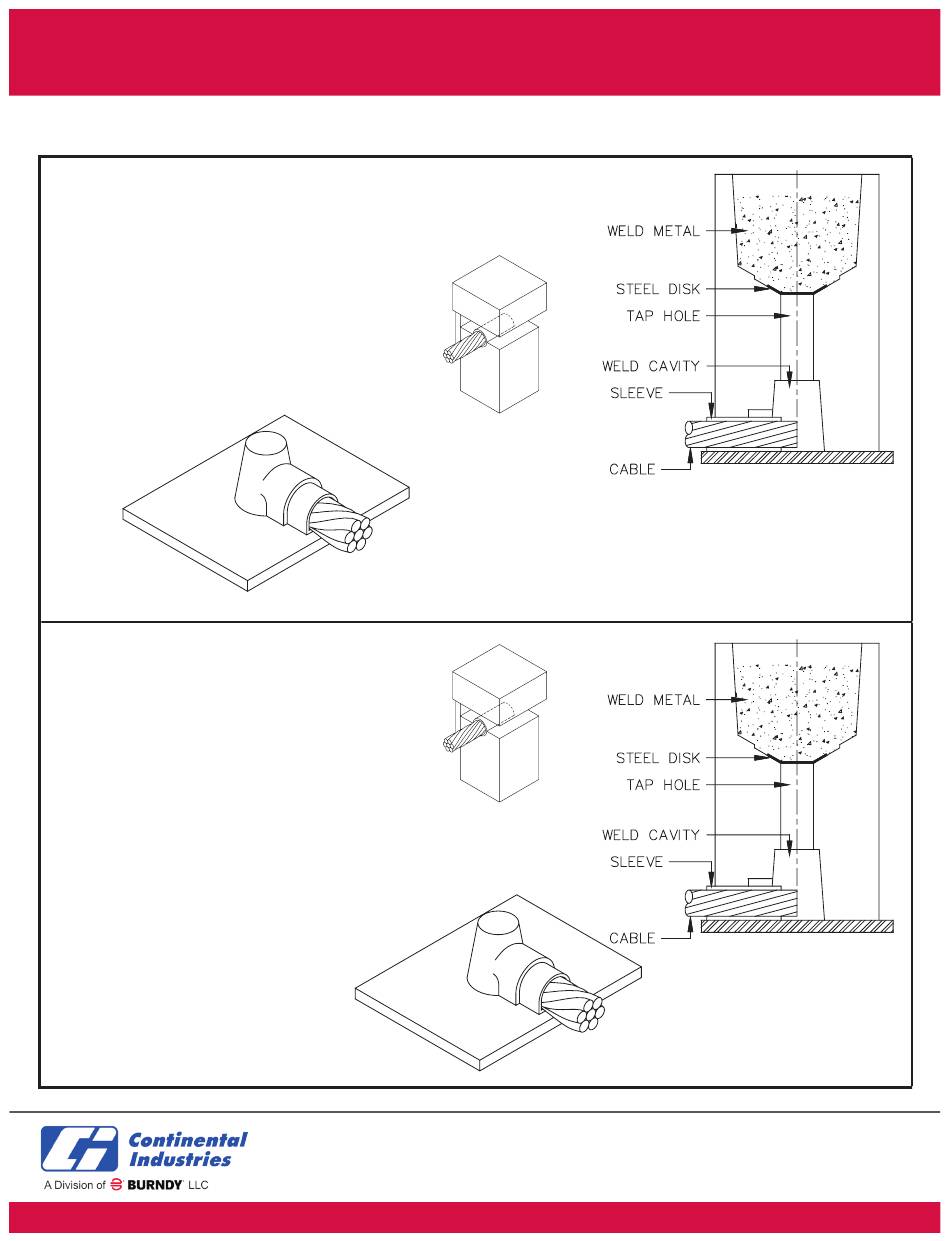

Place sleeve on the end of the cable, allowing
cable to extend past end of sleeve 1/8" and place
into the hammer die. Strike the lid of the hammer
die with a hammer to form the end of the cable.
Insert formed end of cable under center of tap
hole. When welding to flat steel, hold down on
mold cover to prevent mold from tipping.
welding to pipe, use 40-0106-37 chain clamp.
CS-49
Place sleeve on the end of the cable, allowing
cable to extend past end of sleeve 1/8" and place
into the hammer die. Strike the lid of the hammer
die with a hammer to form the end of the cable.
Insert formed end of cable under center of tap
hole. When welding to flat cast iron, hold down
on mold cover to prevent mold from tipping.
welding to cast iron pipe, use 40-0106-37 chain
clamp.
NOTE: When the pipe wall is under
NOT USE a cartridge larger than a #65CI alloy
cartridge.
DO NOT USE type CS-48 or CS-49 on soil pipe
(ASTM A-74-82). A test weld should be made on
a section of the pipe being used to determine the
possibility of detrimental metallurgical effects.
+1 (918) 627-5210 • 1-800-558-1373 • WWW.THERMOWELD.COM
ELECTRICAL GROUNDING • CATHODIC PROTECTION • ELECTRIC UTILITY • RAIL
®
If
HAMMER DIE
If
HAMMER DIE
1/2", DO
Tel. +1.800.558.1373
Tel. +1.918.627.5210
www.thermoweld.com
The Contractors Choice
ECN 2552 REV "D" 03/06/13 34-5657-07
