thermOweld

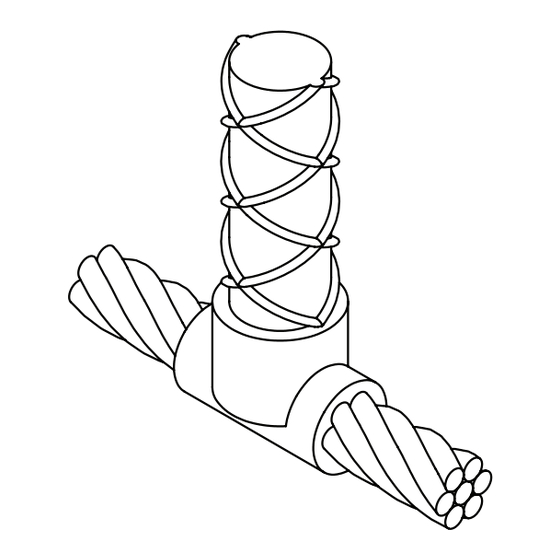

INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - CABLE TO REBAR

CRE-11
Place cable in the mold and butt the rebar against cable.
Follow instructions on reverse side for proper use of copper
shim stock.
CRE-16
Place cable in the mold. Cable must sit on top of rebar.
Use locking pliers or a clamp on the rebar below the mold
to prevent it from
slipping
when the mold is fired. Follow
instructions on reverse side
for proper use of copper shim
stock.
+1 (918) 627-5210 • 1-800-558-1373 • WWW.THERMOWELD.COM
ELECTRICAL GROUNDING • CATHODIC PROTECTION • ELECTRIC UTILITY • RAIL
®
The Contractors Choice
CRE-15
Place cable in the mold and butt the rebar against cable.
Follow instructions on reverse side for proper use of copper
shim stock.
CRE-35
Place cable into mold as shown. Follow instructions on
reverse side for proper use of copper shim stock or packing
pad.
Tel. +1.800.558.1373
Tel. +1.918.627.5210
www.thermoweld.com
ECN 2552 REV "H" 03/06/13
34-5657-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Continental Industries ThermOweld CRE-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Burndy Continental Industries ThermOweld CRE-11

  • Page 1 thermOweld ® The Contractors Choice INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - CABLE TO REBAR CRE-11 CRE-15 Place cable in the mold and butt the rebar against cable. Place cable in the mold and butt the rebar against cable. Follow instructions on reverse side for proper use of copper Follow instructions on reverse side for proper use of copper shim stock.
  • Page 2 GENERAL SAFETY INSTRUCTIONS USING COPPER SHIM STOCK AND PACKING PAD 1. Always wear proper clothing, safety glasses and gloves when 1. For molds requiring copper shim stock, wrap one copper exothermic welding. shim tightly around rebar on each side of area to be welded. 2.
