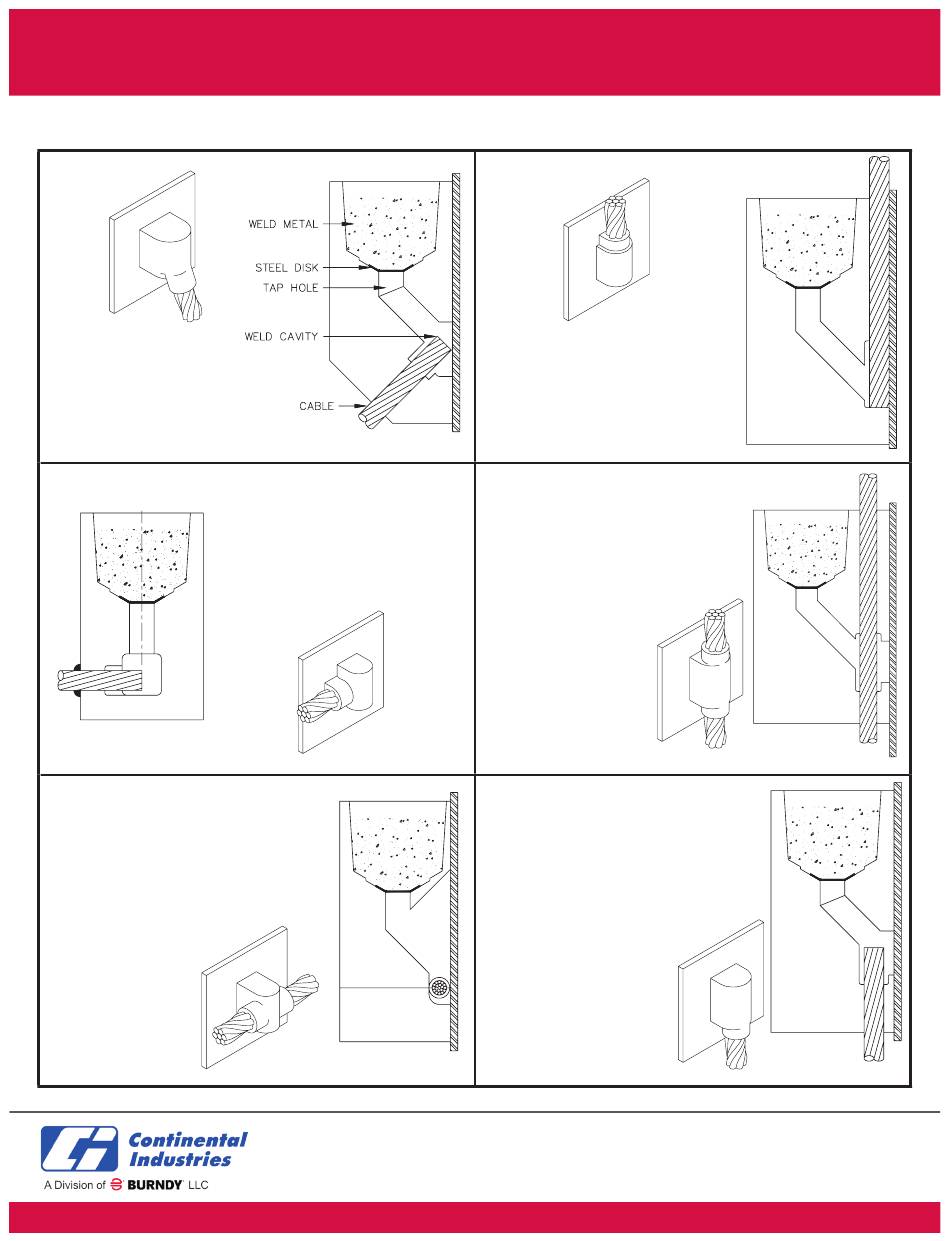

INSTRUCTIONS FOR THERMOWELD GROUNDING CONNECTIONS - CABLE TO STEEL OR CAST IRON
CS-3
Insert cable into the mold
until it touches the surface being
welded. Secure to surface
using 40-0106-32 chain clamp
or a C Clamp.
CS-6 & CS-27
Place cable in mold and secure to
surface using a C Clamp.
NOTE:
Packing material is required on
type CS-27 for 1/0 and larger cable
to prevent leakage
between cable and
steel surface.
+1 (918) 627-5210 • 1-800-558-1373 • WWW.THERMOWELD.COM
ELECTRICAL GROUNDING • CATHODIC PROTECTION • ELECTRIC UTILITY • RAIL
CS-18
Place end of cable under the center
line of the tap hole. Secure to
surface using 40-0106-41 chain
clamp or a C Clamp. Pack cable
opening with packing material
when necessary.
Tel. +1.800.558.1373
Tel. +1.918.627.5210
www.thermoweld.com
®
The Contractors Choice
CS-7
For 4/0 cable and smaller, insert
cable in mold all the way to the
bottom of the weld cavity. For 250
MCM and larger cable, place end of
cable to center of tap hole.
CS-4 & CS-26
Place cable in mold and secure on
surface using 40-0106-32 chain
clamp or a C Clamp.
NOTE:
Packing material is
required on type CS-26
for 1/0 and larger cable
to prevent leakage
between cable and
steel surface.
CS-23 & CS-25
Place end of cable at bottom of
tap hole. Secure mold to surface
using 40-0106-32 chain clamp or a
C Clamp.
NOTE:
Packing material is required on type
CS-25 for 1/0 and larger
cable to prevent leakage
between cable and steel
surface.
ECN 2552 REV "F" 03/05/13 34-5381-03
